Husqvarna
>
TRACTORS/RIDE MOWERS
>
TS 242TXD TS 242TXD, 96041045100, 2020-03
>
CHASSIS & ENCLOSURES
Back to
TS 242TXD
TS 242TXD, 96041045100, 2020-03
CHASSIS & ENCLOSURES
TS 242TXD
TS 242TXD, 96041045100, 2020-03

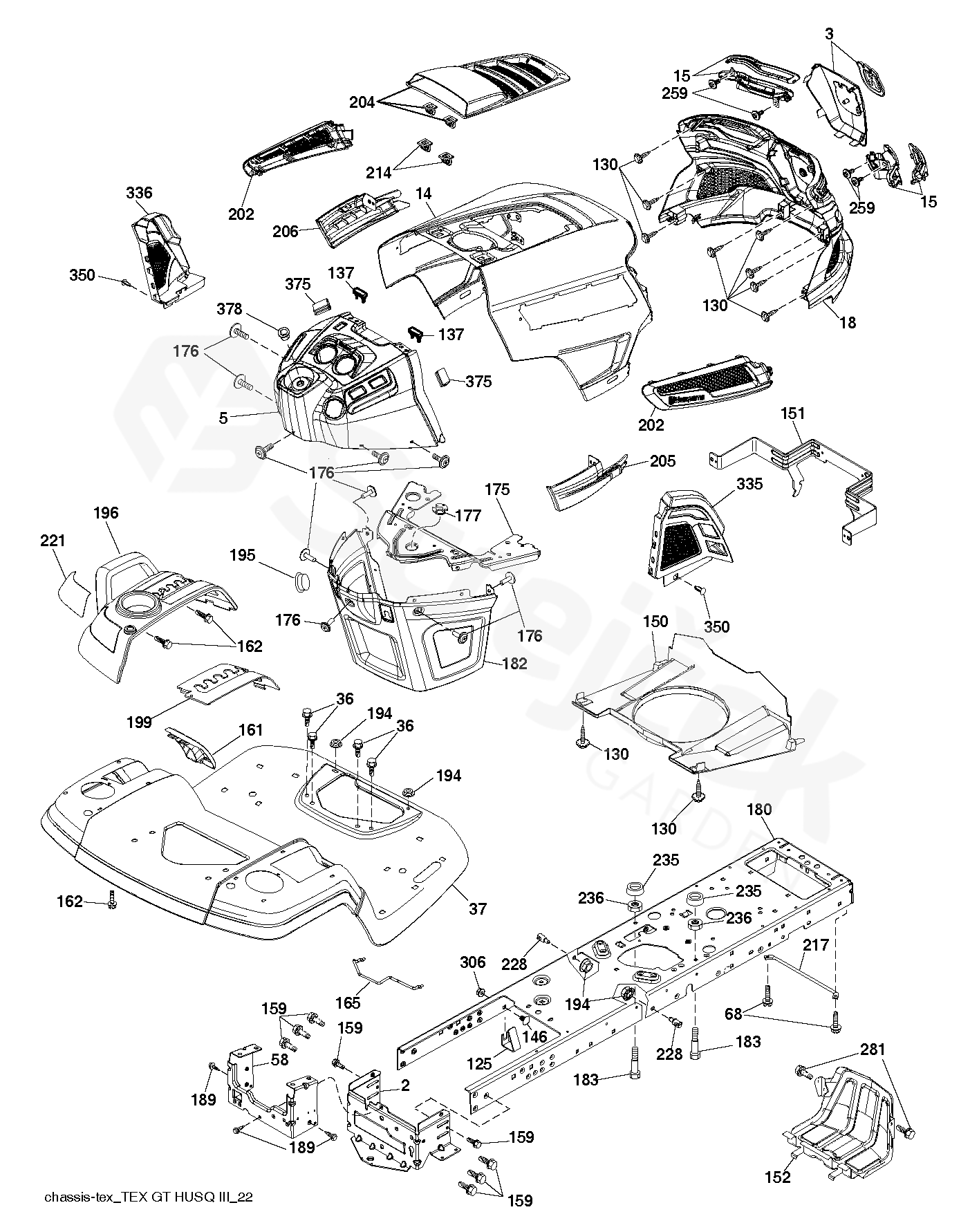

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TS 242TXD, 96041045100, 2020-03
2
PLATE
532412282
3
COVER
APPLIQUE COVER AND EMBLEM BADGE
597688201
5
DASHBOARD
590748817
14
HOOD
532441177
15
SERVICE KIT
LH/RH LENS AND LH/RH HOUSING
597867901
18
GRILLE
597407102
36
SCREW
817060512
37
FENDER
532441208
58
PLATE
532412281
68
SCREW
596030701
125
CLIP
581684801
130
SCREW
596321701
137
DAMPING PIECE
532407590
146
BOLT
581857901
150
AIR DUCT
532439774
151
BRACKET
532436670
152
SHIELD
532439870
159
SCREW
817000612
161
CONSOLE
532439929
162
SCREW
596134101
165
SUPPORT
532194330
175
CROSS MEMBER
590607702
176
SCREW
532400776
177
BUSHING
532195228
180
CHASSIS
593346301
182
DASH
532406859
183
SCREW
595305701
189
SCREW
817000512
194
LOCK NUT
596135701
195
TROU*RPL.PAR 532401556428
532404137
196
CONSOLE
532439716
199
PLATE
532198259
202
SERVICE KIT
LH AND RH SIDEVENTS
597867701
204
VENT
597408001
205
SKIRT
532439730
206
SKIRT
532439729
214
CLIP
532199145
217
ROD
532409167
221
LENS
532198909
228
ŠROUB
532195161
235
SPACER
596564201
236
MATICE
873930500
259
SCREW
596434001
281
SCREW
817000616
306
MATICE
873900600
335
COVER
532448204
336
COVER
532445309
350
CLIP
532445143
375
BUMPER
586908201
378
BUSHING
590849801
GUARD
532431882
