Husqvarna
>
TRACTORS/RIDE MOWERS
>
TS 242TXD TS 242TXD, 96041045100, 2020-03
>

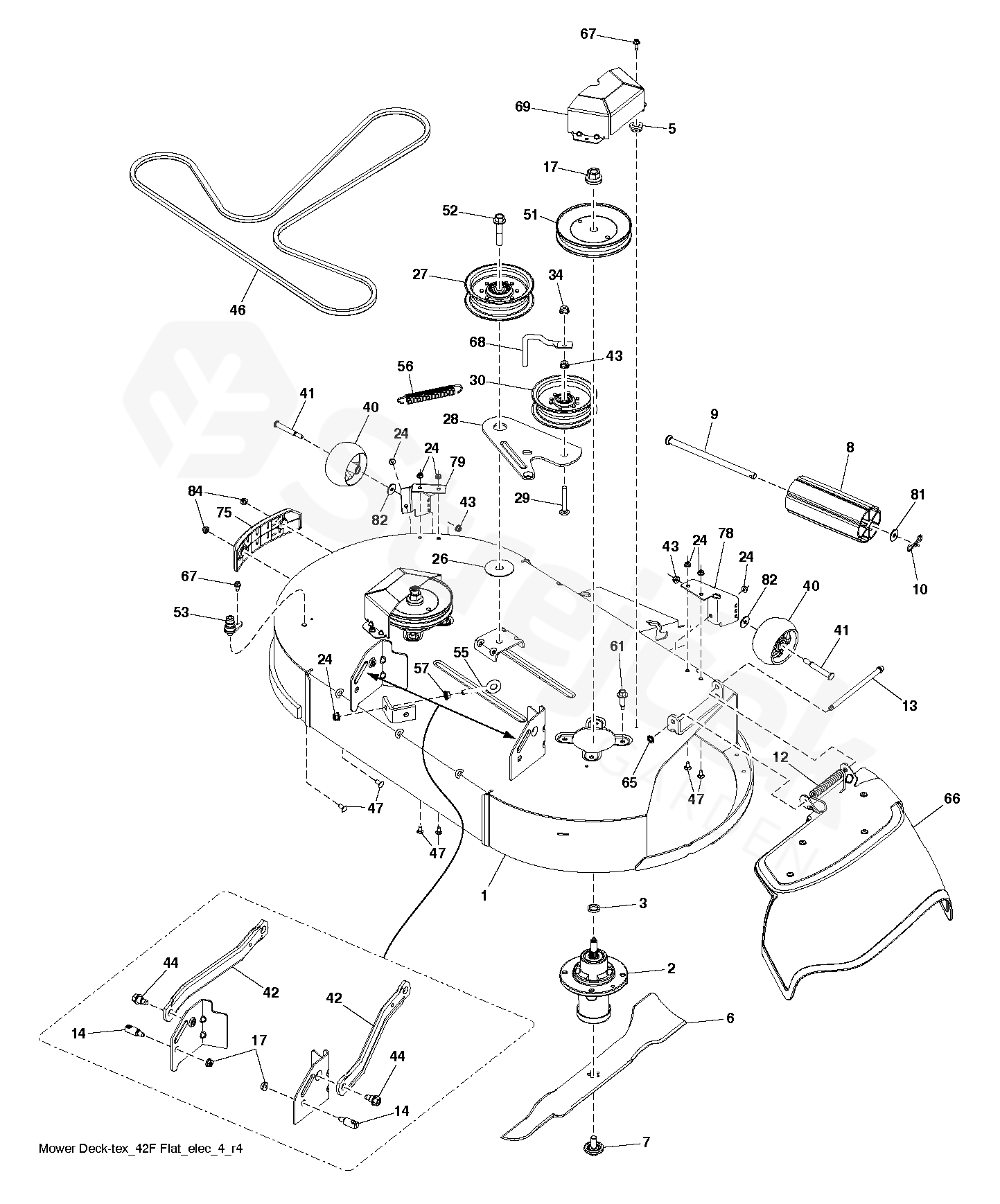

MOWER DECK / CUTTING DECK
Back to
TS 242TXD
TS 242TXD, 96041045100, 2020-03
MOWER DECK / CUTTING DECK
TS 242TXD
TS 242TXD, 96041045100, 2020-03
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
TS 242TXD, 96041045100, 2020-03
1
KIT
587939001
2
SPINDLE
539131898
3
PODLOŽKA
532187690
5
HEXAGON NUT
596134801
6
BLADE
586918102
7
SCREW
532193003
8
ROLLER
532176066
9
ROD
594092501
10
KOLÍČEK
532194208
12
PRUŽINA
587354701
13
ROD
595297001
14
ŠROUB
532195161
17
LOCK NUT
596135701
24
BOLT RETAINER 3/8
539112899
26
PODLOŽKA
532178515
27
IDLER PULLEY
532196104
28
ARM
586874002
29
BOLT
596337801
30
IDLER PULLEY
532196106
34
NUT
596322601
40
WHEEL
589527301
41
BOLT
596434404
42
ARM
587140502
43
MATICE
873900600
44
BOLT
532196539
46
BELT
587270101
47
BOLT
595901601
51
PULLEY
532199791
52
SCREW
588438301
53
PORT.WASHOUT
532415598
55
BOLT
596240801
56
PRUŽINA
587358401
57
LOCK NUT
596039201
61
BOLT
584953901
65
MATICE
532110452
66
DEFLECTOR
587305701
67
SCREW
532137729
68
BELT GUIDE
532198468
69
COVER
586936805
75
BUMPER
582683203
78
BRACKET
501808302
79
BRACKET
(590439002) BRACKET LH
590439002
81
BUSHING
582360501
82
WASHER
596134901
84
BOLT
532170165
