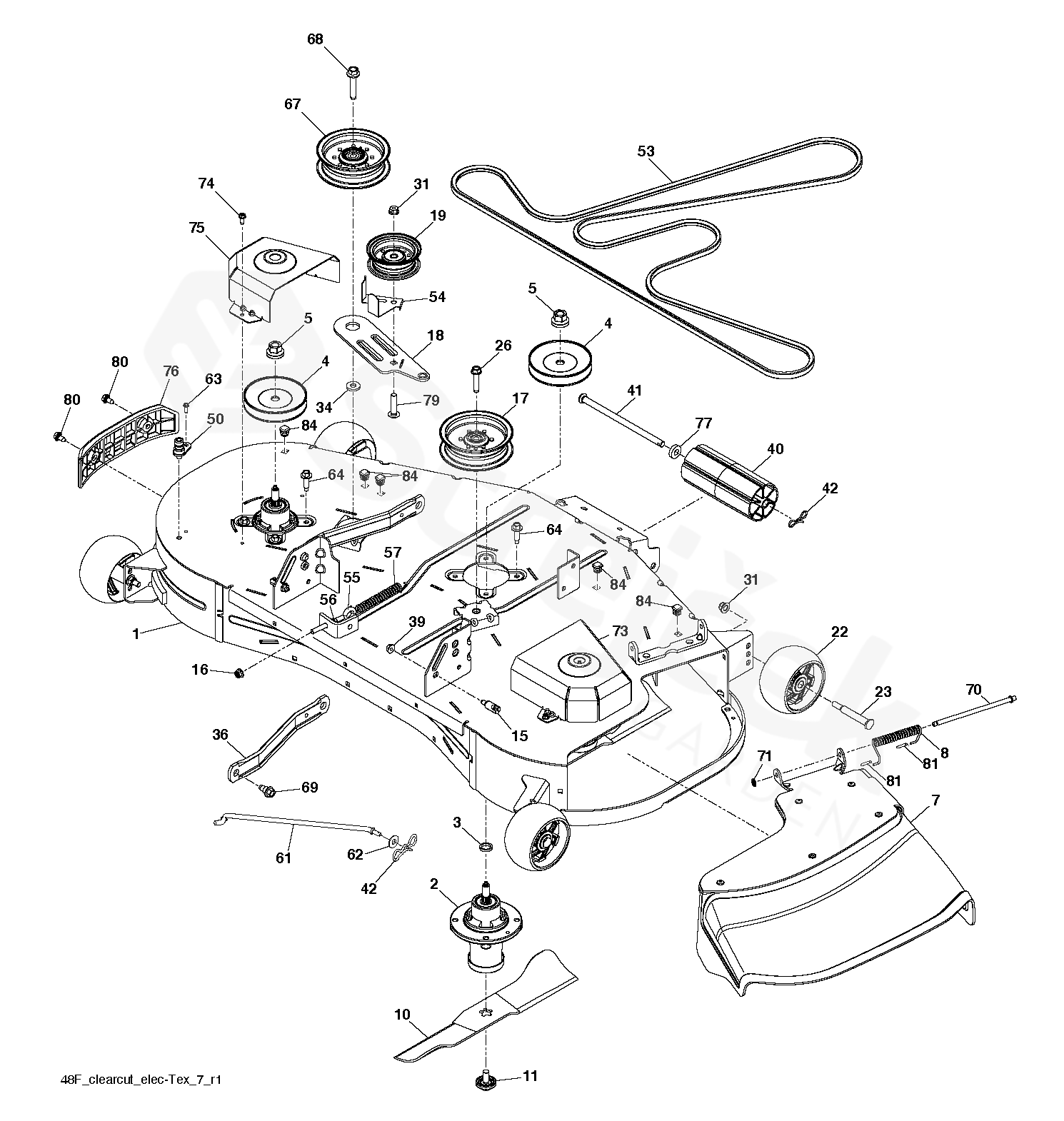

TS 248G TS 248G, 96043031000, 2019-07

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TS 248G, 96043031000, 2019-07

1	SERVICE KIT	583810001
2	SPINDLE RH	539131898
3	PODLOŽKA	532187690
4	PULLEY	532173434
5	HEXAGON NUT	596134801
7	DEFLECTOR ASSY	593649701
8	PRUŽINA	587354701
10	BLADE	588811002
11	SCREW	532193003
15	STUD	593824001
16	NUT	594944401
17	IDLER PULLEY	532196104
18	ARM	588812202
19	PULLEY	532193197
22	WHEEL	589527301
23	BOLT	596434404
26	SCREW	588438301
31	MATICE	873900600
34	PODLOŽKA	532178515
36	ARM	587140502
39	LOCK NUT LH	596135701
40	ROLLER	532176066
41	ROD	594092501
42	KOLÍČEK	532194208
50	PORT.WASHOUT	532415598
53	BELT	599275701
54	GUARD	532141043
55	BOLT	596240801
56	LOCK NUT	596039201
57	PRUŽINA	587358401
61	ROD	596274401
62	WASHER	596133201
63	SCREW	596637301
64	BOLT	584953901
67	IDLER PULLEY	532196106
68	BOLT	596564003
69	BOLT	532196539
70	ROD	595297001
71	MATICE	532110452
73	COVER	588812402
74	SCREW	532137729
75	COVER	588813102
76	BUMPER	582541103
77	BUSHING	582360501
79	BOLT	596136201
80	BOLT	532170165
81	HUB CAP	532105304
84	PLUG	596952201
	COUPLING	532416405
