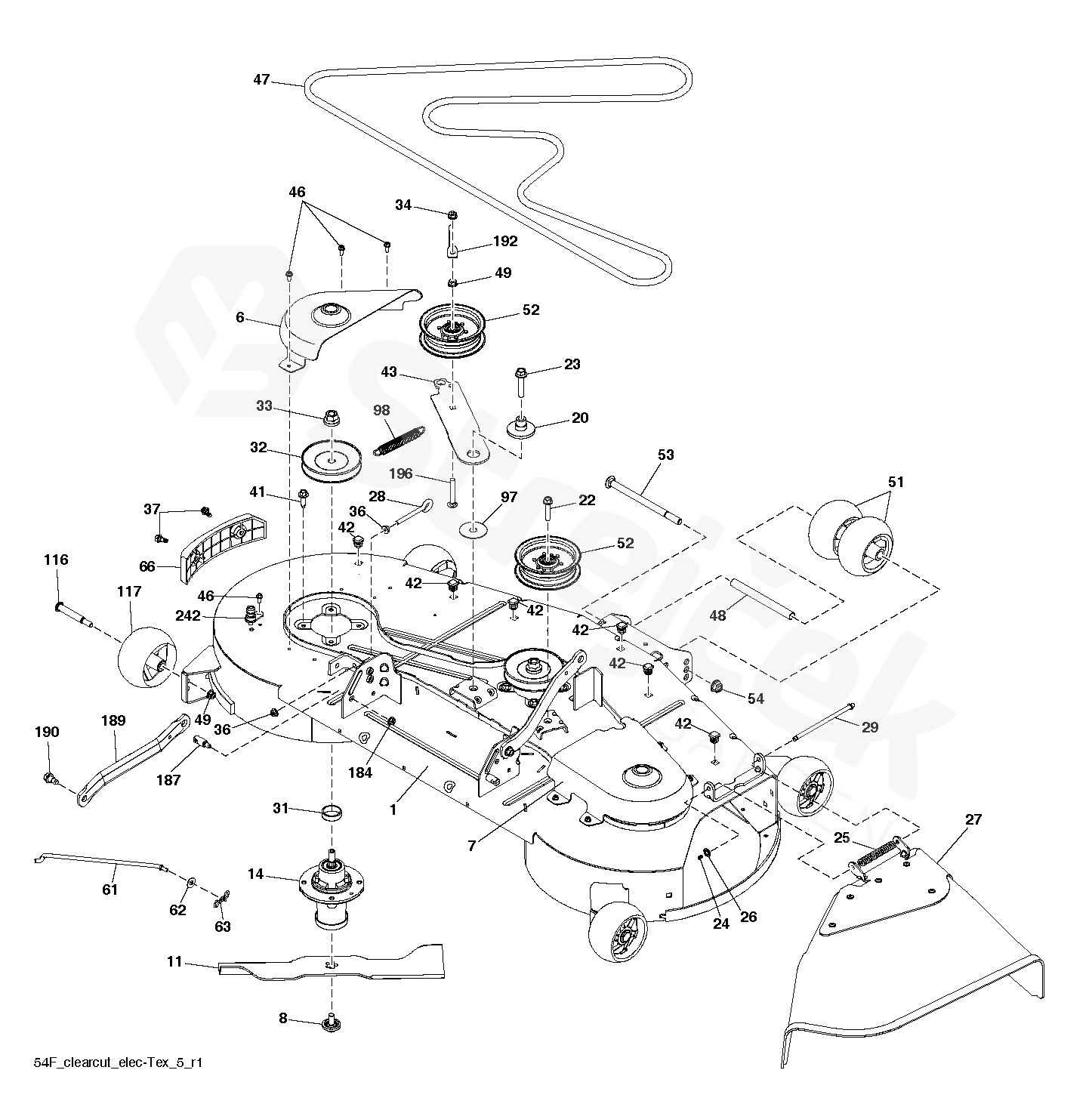

TS 254G TS 254G, 96041044500, 2019-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TS 254G, 96041044500, 2019-08

1	SERVICE KIT	592618801
6	COVER	590304303
7	COVER	590304203
8	SCREW	532193003
11	BLADE	582760508
14	SPINDLE	539131898
20	SPACER	532197236
22	BOLT	596564003
23	SCREW	588438301
24	HUB CAP	532105304
25	PRUŽINA	587354701
26	MATICE	532110452
27	DEFLECTOR ASSY	590632201
28	BOLT	596240801
29	ROD	595297001
31	PODLOŽKA	532187690
32	PULLEY	532153535
33	HEXAGON NUT	596134801
34	NUT	596322601
36	LOCK NUT	596039201
37	BOLT	532170165
41	BOLT	584953901
42	PLUG	596952201
43	ARM	582219602
46	SCREW	532137729
47	BELT	582236301
48	TUBE	574196502
49	MATICE	873900600
51	ROLLER	574169601
52	PULLEY	532197379
53	BOLT	594944501
54	NUT	521991102
61	TIGE ANTI-ROULIS	532400337
62	WASHER	596133201
63	KOLÍČEK	532194208
66	BUMPER ASSY	590732501
97	PODLOŽKA	532178515
98	PRUŽINA	587358401
116	BOLT	596434404
117	WHEEL	589527301
184	LOCK NUT	596135701
187	STUD	593824001
189	ARM	587140502
190	BOLT	532196539
192	BELT GUIDE	532198468
196	BOLT	596337801
242	PORT.WASHOUT	532415598
	CUTTING DECK COMPLETE	598579501
