Spare parts > Husqvarna > ICE AUGERS > ST 330T ST 330T, 96191008600, 2014-06 > DRIVE
Back to

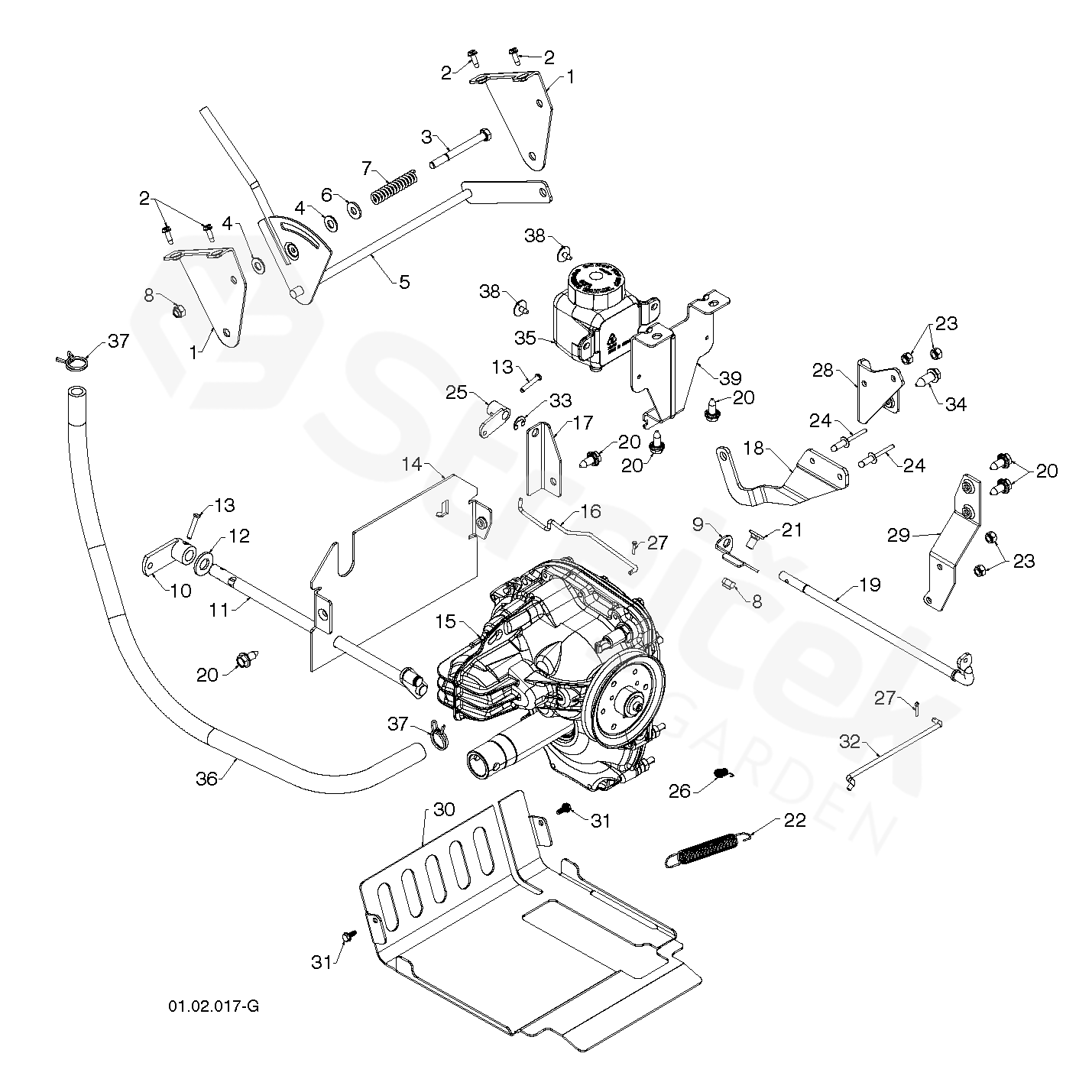

DRIVE
ST 330T ST 330T, 96191008600, 2014-06
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 330T, 96191008600, 2014-06
1 BRACKET 532443344
2 PLATE 817541008
3 CAPSCREW 874760552
4 SPACER 532179246
5 LEVER ASSY 532192001
6 CLIP 532155415
7 PULLEY ASSY 532192195
8 BRACKET 873800500
9 BRACKET 532429803
10 ARM 532443191
11 PAWL 532427542
12 VALVE DE VIDANGE MOTEUR 532188906
13 BEARING 532198580
14 PLATE 580750602
15 TRANSMISSION 532445058
16 ROD 532193256
17 BRACKET 532429805
18 SPEED CONTROL ARM, HYDRO 532187787
19 CLUTCH 532198251
20 BOLT 532428867
21 BOLT 532180355
22 PRUŽINA 532178828
23 MATICE 873800400
24 POP RIVET 532191995
25 CLUTCH 532198249
26 SPRING, TRACTION IDLER 532192873
27 CLIP 532700279
28 BRACKET 532407858
29 STRAP 532414771
30 COVER 585166802
31 SCREW 532443384
32 ROD 532446293
33 BOLT 532428288
34 SCREW 817060516
35 TANK 574811301
36 HOSE 580750801
37 CLAMP 532445298
38 SCREW 532189241
39 BRACKET 580750902
