Spare parts > Jonsered > BRUSHCUTTERS/CLEARING SAWS > FC2255 FC2255 > CLUTCH
Back to

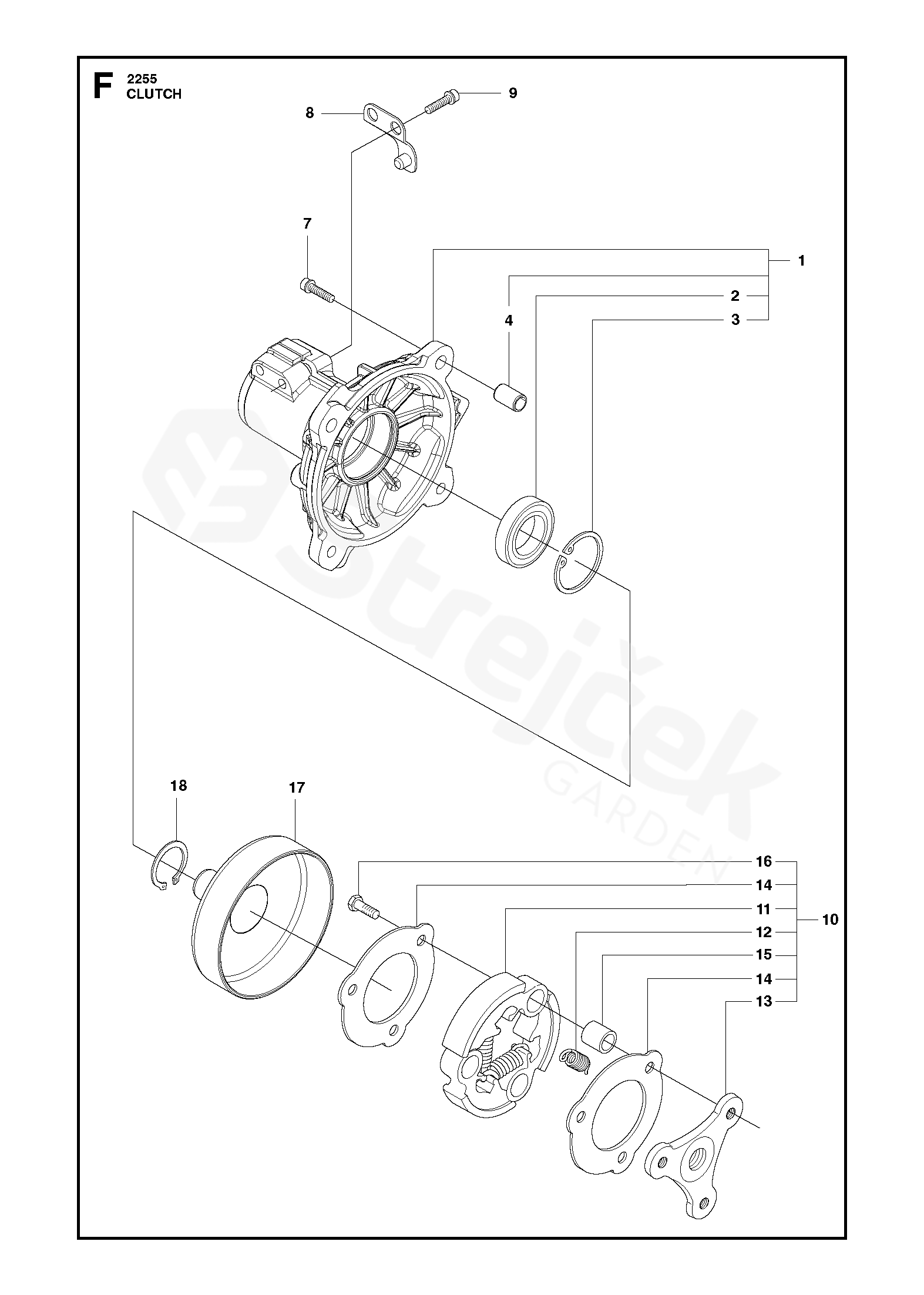

CLUTCH
FC2255 FC2255
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FC2255
1 CLUTCH COVER ASSY
up to s/n - 20191600180. Incl. pos. 2-4 		597519202
2 BALL BEARING 738220219
3 CIRCLIP 735313310
4 GUIDE BUSHING
up to s/n - 20191600180 		597371101
7 SCREW IHSCFM 503200778
8 LOCKING PLATE 544294801
9 SCREW IHSCM 725537265
10 CLUTCH ASSY Incl. Pos. 11-16
Incl. Pos. 11-16 		537404002
11 CLUTCH SHOE 537403701
12 CLUTCH SPRING
Ø 1.7 mm 		505435301
13 CLUTCH HUB 537403601
14 PODLOŽKA 544892801
15 BEARING BUSH 537135401
16 SCREW EHHM 503201802
17 CLUTCH DRUM ASSY 575861601
18 CIRCLIP 735311700
