Spare parts > Jonsered > BRUSHCUTTERS/CLEARING SAWS > FC2256 W FC2256W > CLUTCH
Back to

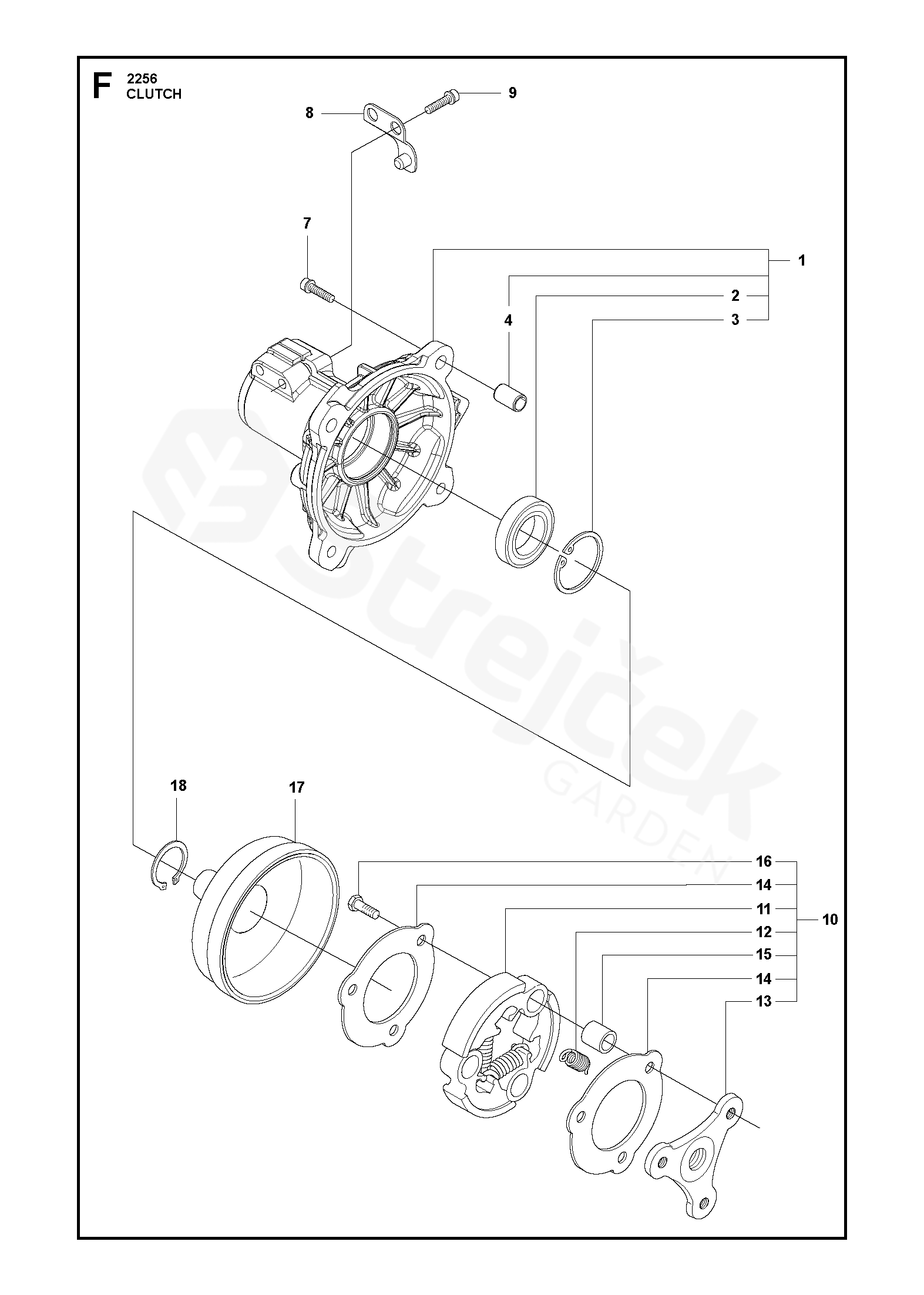

CLUTCH
FC2256 W FC2256W
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FC2256W
1 CLUTCH COVER ASSY
from s/n 20191600181- Incl. pos. 2-4 		597519201
2 BALL BEARING 738220219
3 CIRCLIP 735313310
4 GUIDE BUSHING
from s/n 20191600181 		597371101
7 SCREW IHSCFM 503200778
8 LOCKING PLATE 544294801
9 SCREW IHSCM 725537265
10 SPOJKA KOMPL. Incl. Pos. 11-16
Incl. Pos. 11-16 		579164002
11 CLUTCH SHOE
1 clutch shoe only 		537403701
12 PRUŽINA SPOJKY Ø 1.8 mm
Ø 1.8 mm 		578769401
13 CLUTCH HUB 537403601
14 PODLOŽKA 544892801
15 BEARING BUSH 537135401
16 SCREW EHHM 503201802
17 CLUTCH DRUM ASSY 586553303
18 CIRCLIP 735311700
