Spare parts > Jonsered > CHAIN SAWS > CS2258 CS2258 > CRANKCASE
Back to

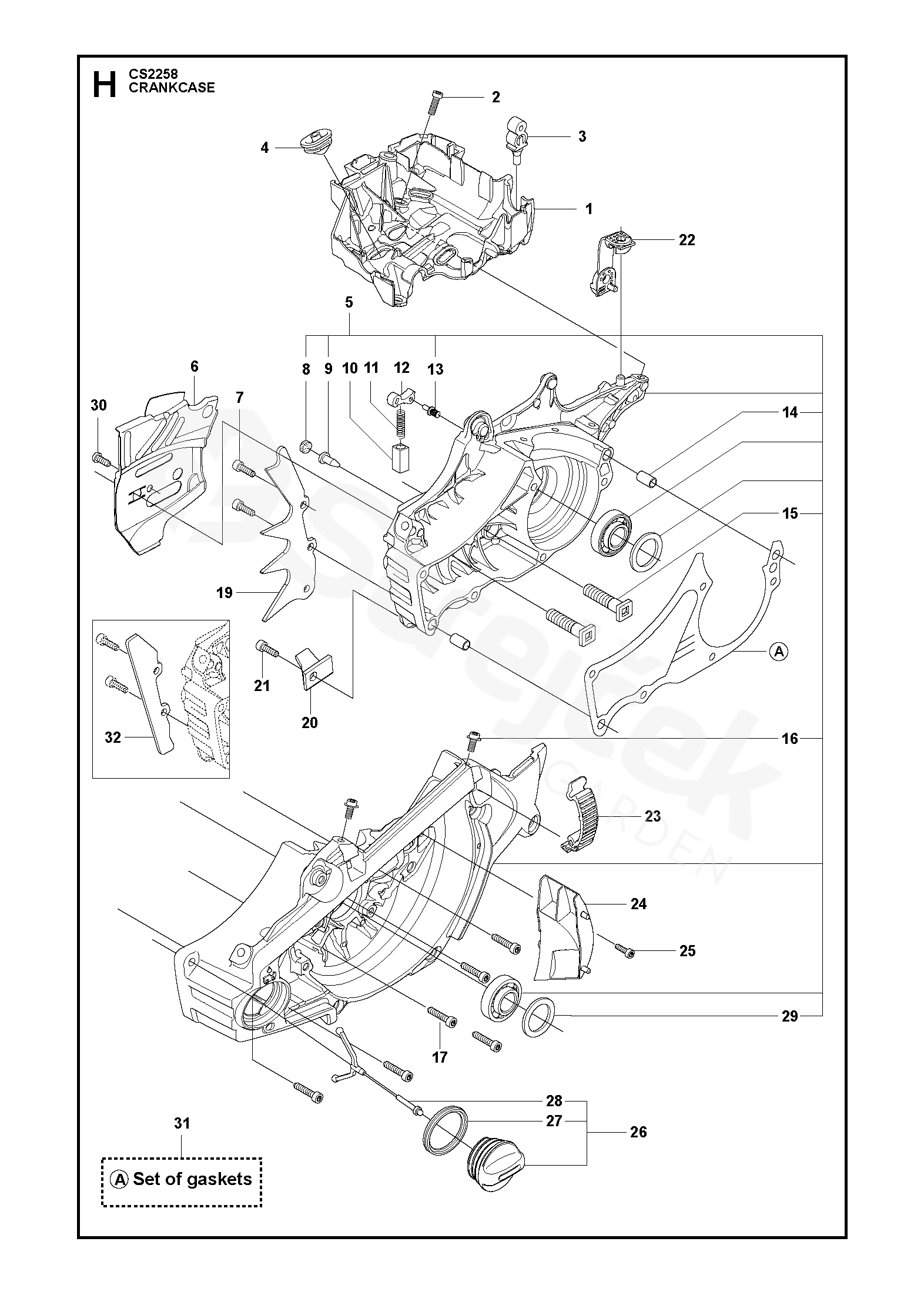

CRANKCASE
CS2258 CS2258
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CS2258
1 CARBURETTOR AREA BASE 588193902
2 SCREW ITXSCFM 525755202
3 KARBURÁTOR 503869301
4 BELLOWS 581559201
5 KLIKOVÁ SKŘÍŇ KOMPL. 575380219
6 VOCÍCÍ PLECH ŘETĚZU 505201101
7 SCREW IHSCM 725532955
8 FILTER 537403501
9 CHECK VALVE 530026119
10 SPRING GUIDE 537210701
11 POLOHOVÁ PRUŽINA 503436501
12 CATCH 505201201
13 PIN KNEE-JOINT 503751801
14 GUIDE BUSHING 593806001
15 BAR BOLT 505217301
16 SCREW ITXSCM 525824401
17 SCREW ITXSCM 575841104
19 ZUBOVÁ OPĚRKA 577935201
20 CHAIN CATCHER 537377902
21 SCREW ITXSCFT 525798103
22 ZRÁŽKA VYCHÝLENÍ 505125801
23 SNAP 503894703
24 VZDUCHOVÁ TYSKA 520291201
25 SCREW ITXSCM 526818101
26 TANK CAP ASSY 544111204
27 GASKET 589241101
28 HOLDER 503578901
29 RADIÁLNÍ TĚSNĚNÍ 525391201
30 SCREW CITXPANT 525887401
31 SADA TĚSNĚNÍ A=set of gaskets
A=set of gaskets 		575270003
32 ENCLOSED KIT 574889801
