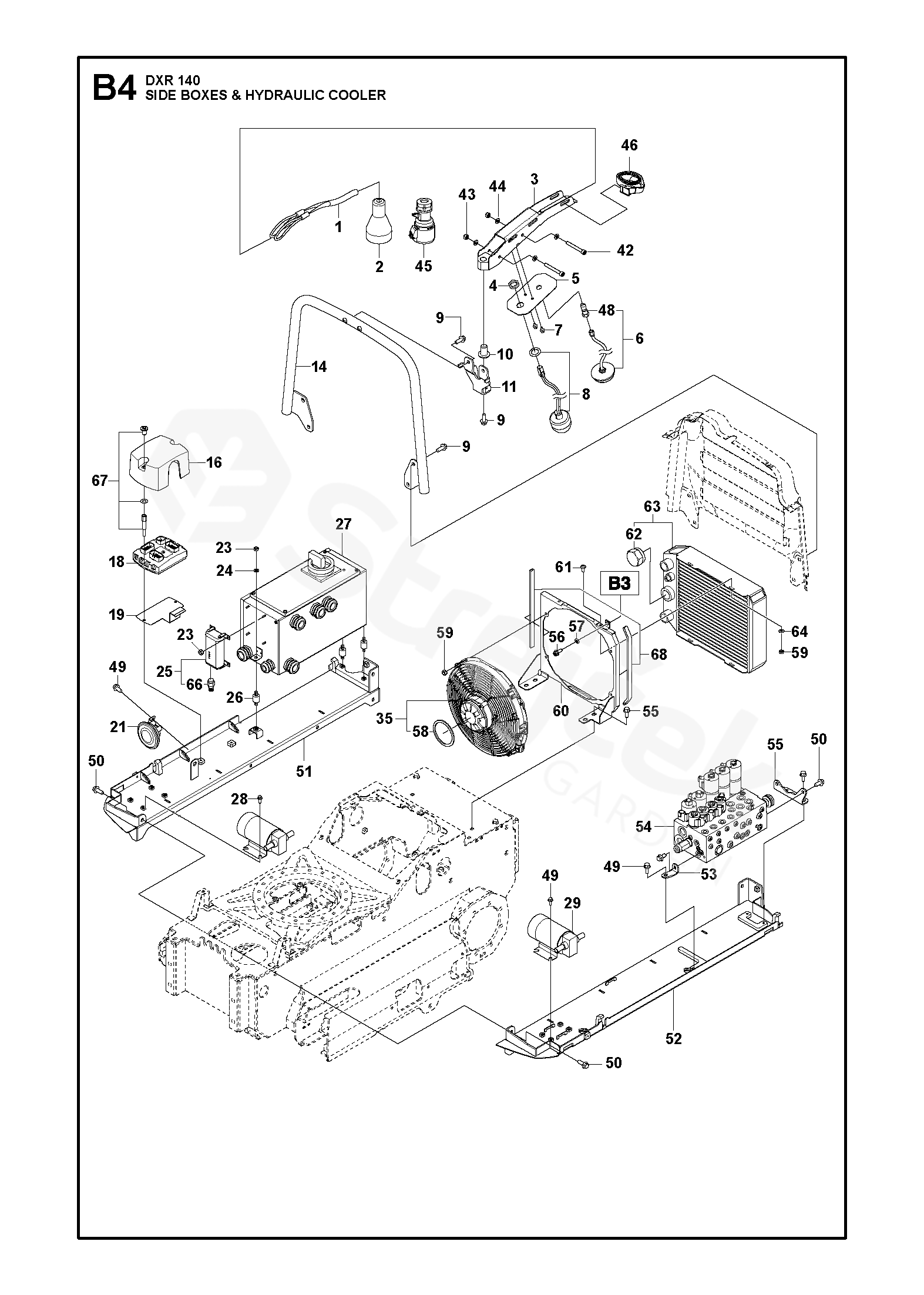

Spare parts - Partlist - DXR140 DXR 140 - SIDE BOXES & HYDRAULIC COOLER

Everything for your machines

DXR140 DXR 140

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DXR 140

1	CABLE CLAMP	574667801
2	CABLE	510277702
3	ARM	581566301
4	NUT	581480801
5	BRACKET	581590801
6	ANTENNA	580289201
7	LOCK NUT	522669401
8	LIGHT	581103501
9	SCREW EHHFM	574258901
10	PIN	574713001
11	BRACKET	581591501
14	PROTECTOR BAR	576566401
16	PROTECTION	574664901
18	ELECTRONIC BOX Master│Gen.5│Valid for machine S/N 506-forward│Empty/Contains NO Software	592630101
19	BRACKET	574701401
21	HORN	510126001
23	HEXAGON LOCKING NUT	732251201
24	WASHER	522671501
25	SERVICE KIT	593972501
26	DAMPER	575727701
27	ELECTRONIC BOX	593633901
28	LOCK NUT Valid for machine S/N 1-254	522668401
29	OIL PUMP Valid for machine S/N 255-forward	588838701
35	FAN	523032001
42	ŠROUB EHHM	587158701
43	LOCK NUT	522669401
44	PODLOŽKA	522671601
45	OBJÍMKA	531117131
46	PÁSEK	522733601
48	ADAPTER	592646501
49	SCREW Valid for machine S/N 1-254	725244751
50	SCREW EHHFM	522706601
51	BASEPLATE	587279701
52	BASEPLATE	587708801
53	BRACKET	501605801
54	VALVE ASSY	590217601
55	SCREW EHHFM	522668701
56	SCREW EHHFM	535475230
57	PODLOŽKA	522671601
58	SPACER RING	582180201
59	LOCK NUT	522669301
60	BRACKET	582676701
61	SCREW IHPANM	587394201
62	VALVE Valid for machine S/N 1-254	585314801
63	OIL COOLER	594116601
64	WASHER	522671501
66	ADAPTER	592646401
67	SCREW	574701501
68	SEAL KIT	587394301
