Spare parts > Husqvarna Construction Products > POWER CUTTERS > K 770 Smartguard K 770 Smartguard, 2020-04 > IGNITION SYSTEM
Back to

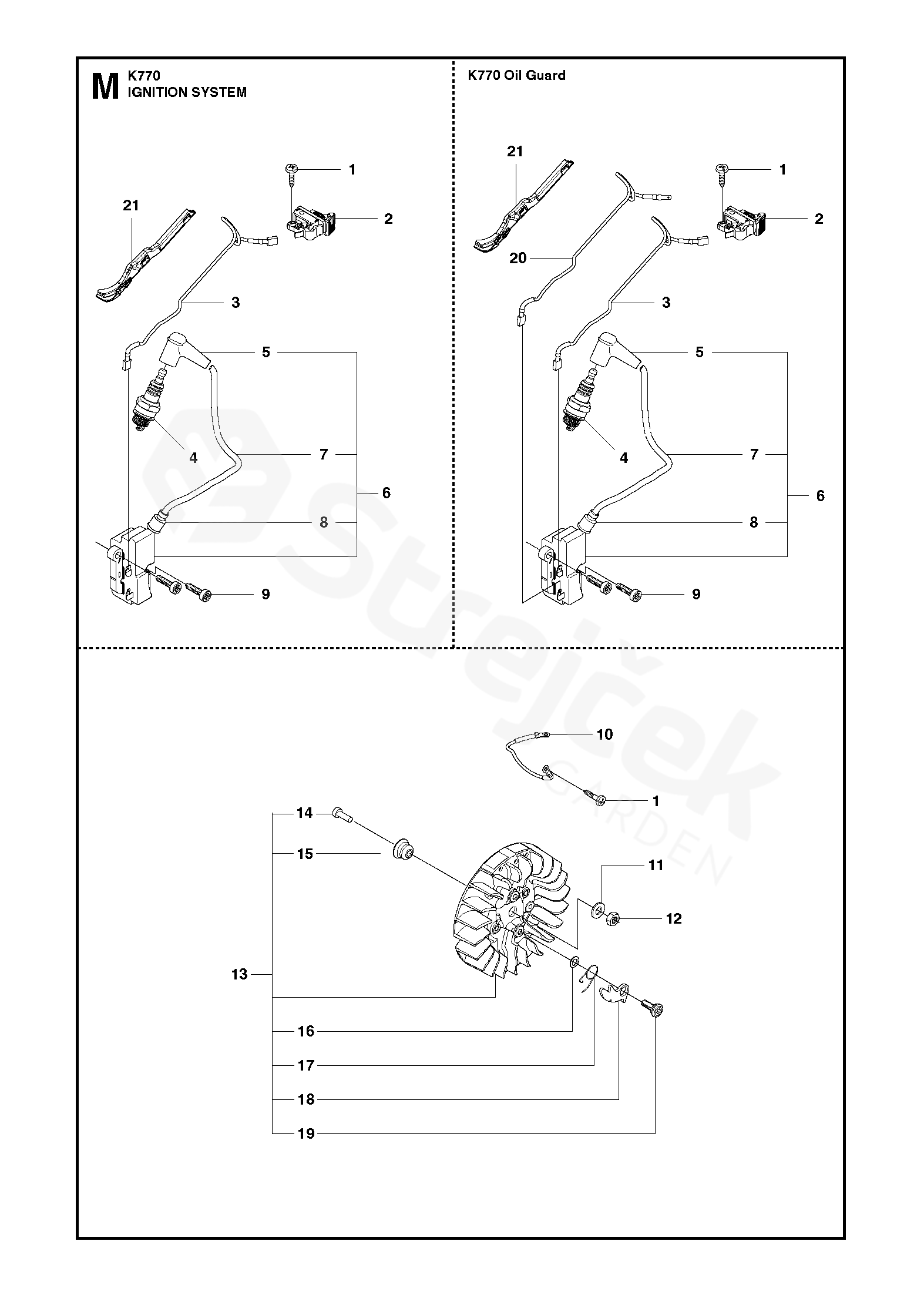

IGNITION SYSTEM
K 770 Smartguard K 770 Smartguard, 2020-04
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For K 770 Smartguard, 2020-04
1 SCREW CITXPANT 525887402
2 STOP SWITCH 506318604
3 CABLE 586497201
4 SPARK PLUG
RCJ 6 Y 		503235111
5 SPARK PLUG CAP 590504501
6 IGNITION MODULE
Incl. 5, 7 - 8 		580380505
7 IGNITION CABLE 506387834
8 ISOLERHATT 505277516
9 SCREW ITXSCM 505574120
10 CABLE 506378501
11 PODLOŽKA 503230101
12 HEXAGON NUT
Incl. 14 - 19 		503221011
13 FLYWHEEL ASSY 587702102
14 SCREW IHSCM 725532956
15 WEIGHT 574250901
16 PODLOŽKA 503230042
17 SPRING 576492601
18 PAWL 501673203
19 SCREW 506006901
20 CABLE Oil Guard
Oil Guard 		544384901
21 CABLE HOLDER 577242801
