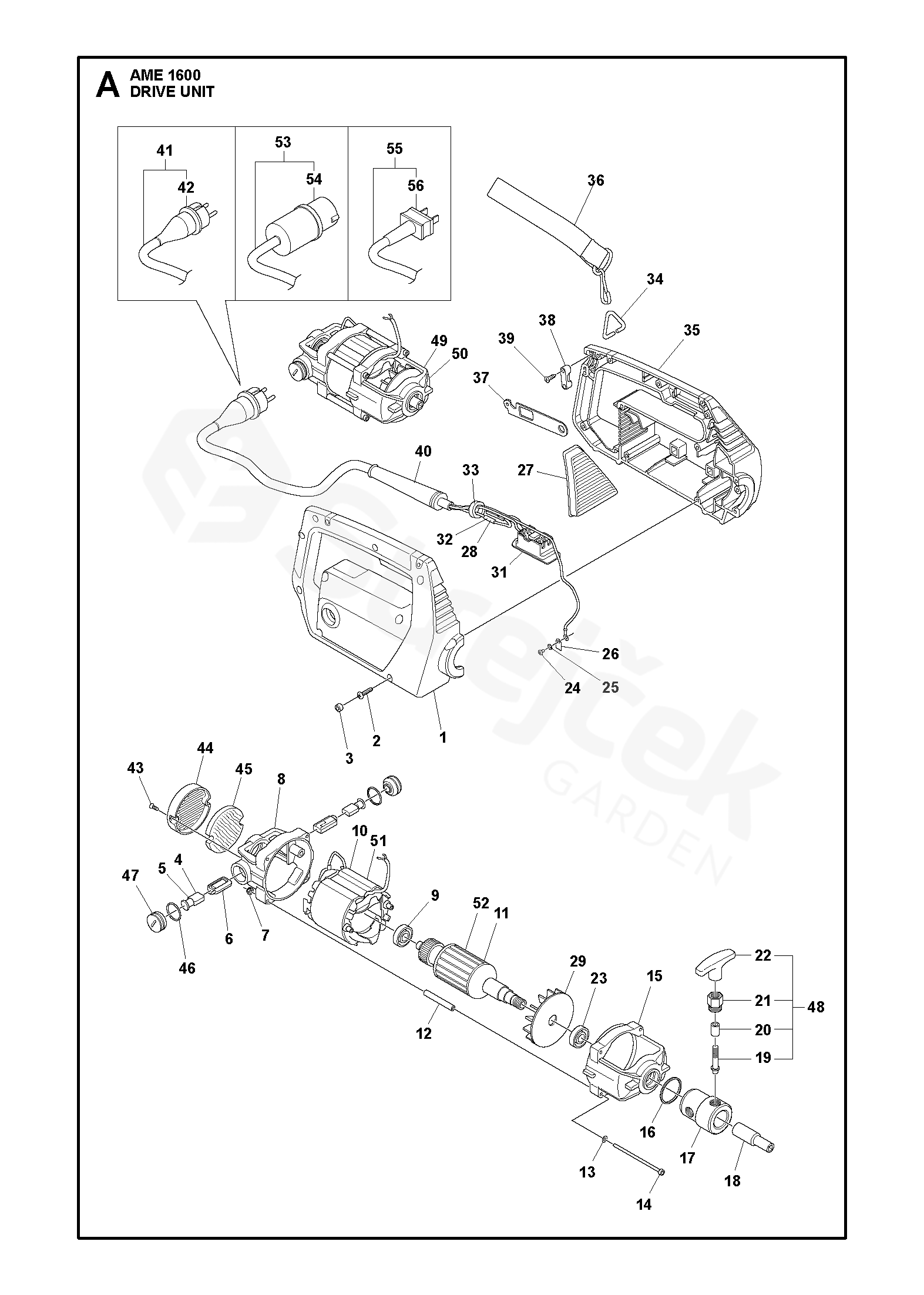

AME 1600 AME 1600, 967933601, 967933301, 967857801, 2019-09

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For AME 1600, 967933601, 967933301, 967857801, 2019-09

1	HOUSING Left + Right	595933101
2	SCREW 4.8x22 DIN7981	598443301
3	SEALING PLUG	598763601
4	BRUSH Brush, 230 V	594634101
5	BRUSH HOLDER Brush, 115 V	594634201
6	BRUSH HOLDER	594634301
7	NUT M5 DIN 985-8 zn	595112401
8	FRAME	594634401
9	BEARING 6201 2Z	594862801
10	STATOR Stator, 230 V	594634501
11	ROTOR Rotor, 230 V	594634601
12	FRAME	595491701
13	WASHER	594747901
14	BOLT M5x100 ISO4762 8.8	598443501
15	FRAME	595491801
16	O-RING 36x2 NBR 70 Shore	598443601
17	CONNECTOR	595491901
18	DRIVER	594634701
19	PLUG	594634801
20	SPRING	595492001
21	NUT	595204401
22	CONNECTION	594634901
23	BEARING 6003 2Z	595492101
24	BOLT M4x8 ISO1207	598443502
25	WASHER 4.3 DIN6798A	594747902
26	PLATE	595204501
27	COVER	595492201
28	PROTECTION Thermal protector, 230 V	594635101
29	FAN	595493801
31	SWITCH Switch + capacitors	594635001
32	HEAT PROTECTOR Thermal protector, 115 V	598445001
33	HOLDER	595525901
34	RING	595204701
35	O-RING	598443603
36	BELT	595204801
37	CABLE	595492401
38	CABLE	595492501
39	SCREW 3.9x22 DIN7982	598443302
40	CABLE	595204901
41	PLUG Cable + plug, 230 V	595205001
42	PLUG SCHUKO TYPE 2P 16A	595205101
43	SCREW 3.5x16 DIN 7981	598443303
44	COVER	595492801
45	AIR FILTER	594635201
46	O-RING 23x2 NBR 70 Shore	598443602
47	BRUSH	594635301
48	CONNECTION	594635401
49	MOTOR Motor set 230 V	594635501
50	MOTOR Motor set 115 V	595492901
51	STATOR Stator, 115 V	595204301
52	ROTOR Rotor, 115 V	595491601
53	CABLE Cable + plug, 115 V, UK	595492601
54	PLUG 2P+T 100/130V 16A 115 V UK	595492701
55	CABLE Cable + plug, 115 V, US	598763701
56	PLUG 125V 15A NEMA 5-15 115 V USA	598763801
