Husqvarna Construction Products
>
LIGHT COMPACTION
>
LF 100 L/LF 100 LAT LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
>
GROUND PLATE INSTALLATION
Back to
LF 100 L/LF 100 LAT
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08

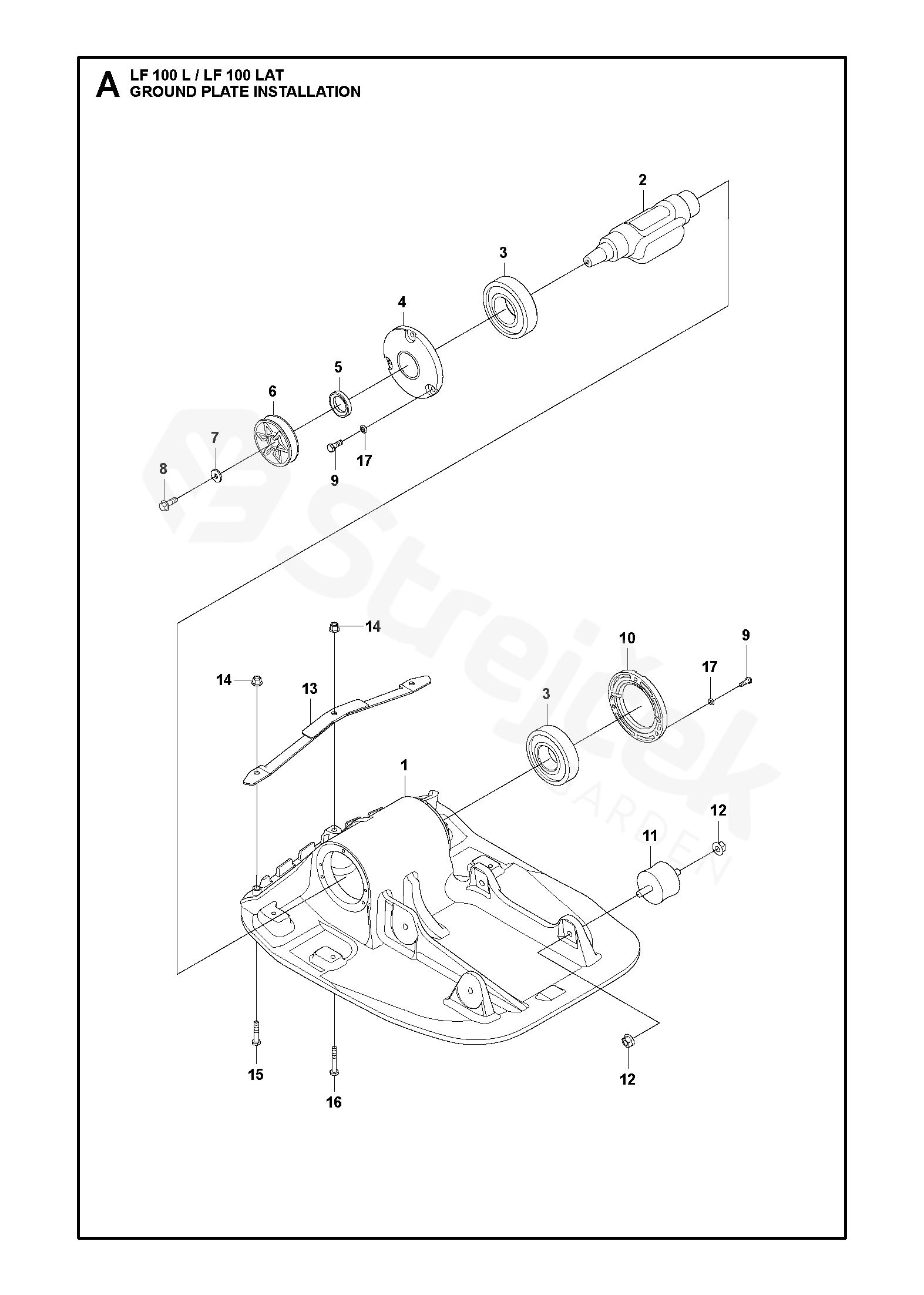

GROUND PLATE INSTALLATION
LF 100 L/LF 100 LAT
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
1
PLATE
594650901
2
SHAFT
594643901
3
BALL BEARING
594526101
4
COVER
594490101
5
SEAL
Lip-type
594128301
6
PULLEY
594486701
7
WASHER
8.4 x 16 x 1.5 mm, 0.33 x 0.63 x 0.06 in. 300 HV
594123401
8
SCREW
M8 x 25 mm 8.8 A2K
594120001
9
SCREW
M6х16 8.8, A2K
595033201
10
COVER
594490201
11
ABSORBER
594341901
12
HEXAGON NUT
M10 x 1.5 mm GEOMET®
594122601
13
BAR
500 mm, 19.7 in.
594653201
14
LOCK NUT
M8 x 1.25 mm
594123001
15
SCREW
M08x40 8.8, A2K
595033501
16
SCREW
M08x50, 8.8, A2K
595287101
17
WASHER
nordlock NL6 M6 DIA 13.5
594124601
