Husqvarna Construction Products
>
LIGHT COMPACTION
>
LF 100 L/LF 100 LAT LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
>
ENGINE INSTALLATION – HONDA
Back to
LF 100 L/LF 100 LAT
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08

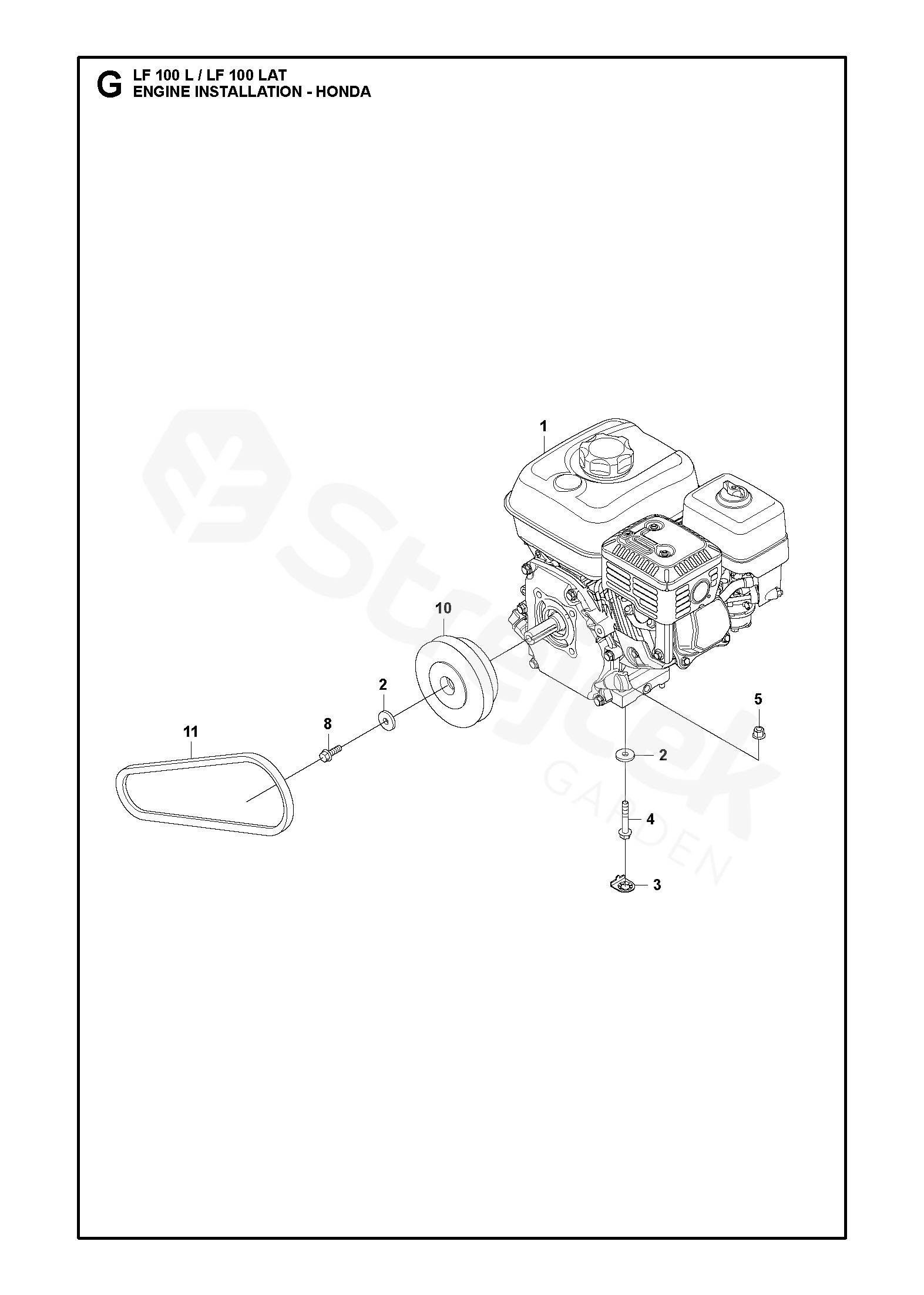

ENGINE INSTALLATION – HONDA
LF 100 L/LF 100 LAT
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LF 100 L/LF 100 LAT, 967855101, 967855101, 967855102, 967855103, 967855104, 967896801, 2019-08
1
ENGINE
594161101
2
WASHER
M08 8,4x26x4,0 300 HV
595112901
3
WASHER
594484201
4
SCREW
flange screw M8x50
594499101
5
LOCK NUT
594123001
8
SCREW
flange screw M8x25
594120001
10
CENTRIFUGAL CLUTCH
594480101
11
V-BELT
594488801
