Husqvarna Construction Products
>
LIGHT COMPACTION
>
LG 400 LG 400, 967855401, 967855402, 967896401, 967896403, 2019-08
>

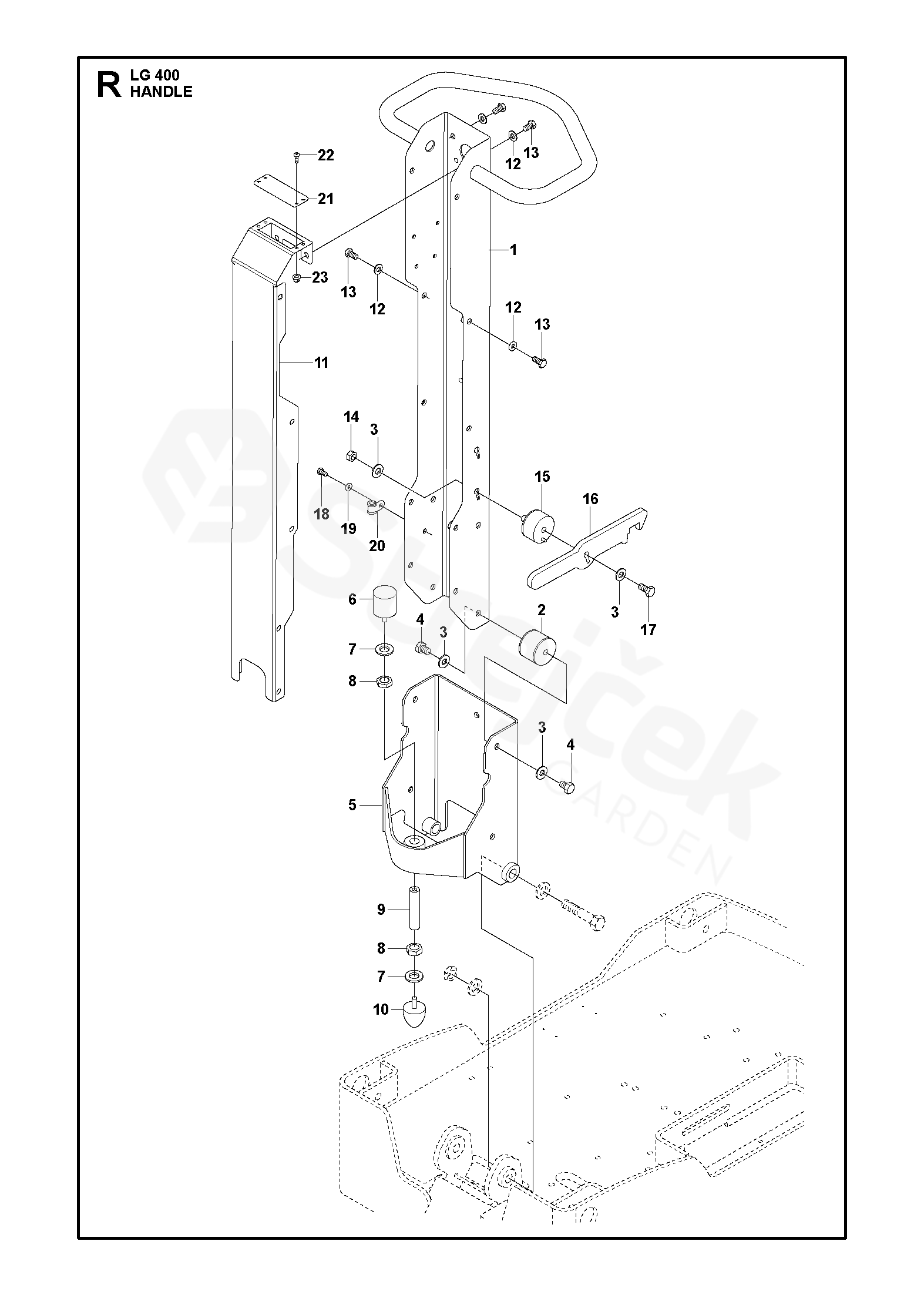

HANDLE
Back to
LG 400
LG 400, 967855401, 967855402, 967896401, 967896403, 2019-08
HANDLE
LG 400
LG 400, 967855401, 967855402, 967896401, 967896403, 2019-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
LG 400, 967855401, 967855402, 967896401, 967896403, 2019-08
1
HANDLE
594142901
2
ABSORBER
594147501
3
WASHER
10.5 x 22 x 2 mm, 0.41 x 0.87 x 0.08 in. 300 HV
594747401
4
CAP
M10 x 14 mm 8.8 A3K
594118301
5
BRACKET
595119401
6
ABSORBER
594527201
7
WASHER
17 x 30 x 3 mm, 0.70 x 1.18 x 0.12 in. 300 HV
595036701
8
NUT
M16 A3K
595059701
9
STUD
594492401
10
ABSORBER
594527201
11
COVER
594648601
12
WASHER
8.4 x 16 x 1.5 mm, 0.33 x 0.63 x 0.06 in. 300 HV
595036601
13
SCREW
M8 x 16 mm 8.8 A2K
595110101
14
NUT
M10 A3K
595029401
15
ABSORBER
594462701
16
HOOK
594434101
17
SCREW
M10 x 20 mm 8.8 A3K
594118401
18
SCREW
595033201
19
WASHER
6.4 x 12 x 1.5 mm, 0.25 x 0.47 x 0.06 in. 300 HV
595036501
20
CLAMP
595188701
21
COVER
594647101
22
SCREW
M5 x 14 A2-70
594535701
23
NUT
M5 A2K
595352401
