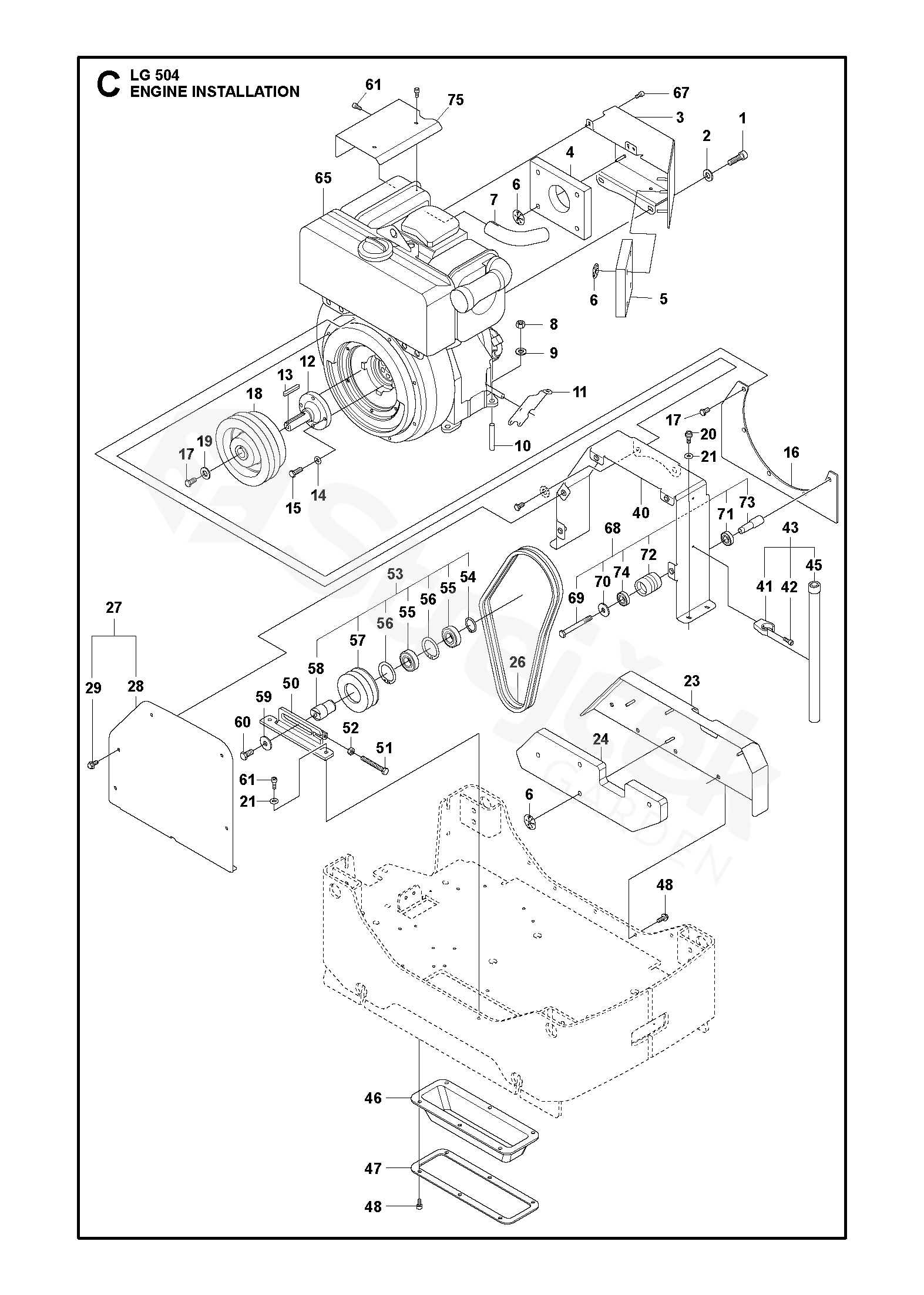

Spare parts - Partlist - LG 504 LG 504, 967855501, 967855502, 967855503, 967855504, 967855505, 967855506, 967855507, 967855508, 967855509, 967855510, 967855511, 967855512, 2019-08 - ENGINE INSTALLATION

Everything for your machines

LG 504 LG 504, 967855501, 967855502, 967855503, 967855504, 967855505, 967855506, 967855507, 967855508, 967855509, 967855510, 967855511, 967855512, 2019-08

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For LG 504, 967855501, 967855502, 967855503, 967855504, 967855505, 967855506, 967855507, 967855508, 967855509, 967855510, 967855511, 967855512, 2019-08

1	BOLT	594120901
2	WASHER	595066501
3	PROTECTION	594757101
4	INSULATION	594757001
5	INSULATION	594756901
6	WASHER	595051701
7	EXHAUST PIPE	595367401
8	NUT	594548601
9	WASHER	595067901
10	SCREW	594486101
11	BRACKET	595050001
12	SHAFT	594330501
13	KEY	594368201
14	WASHER	595067301
15	SCREW	595344301
16	COVER	594827501
17	SCREW	594118401
18	CLUTCH	594646801
19	WASHER	595066501
20	SOCKET	595348301
21	WASHER	595036601
23	INSULATION	594759701
24	INSULATION	594757701
26	V-BELT XPA 1208(6T43)	594189101
27	COVER	595276501
28	BELT COVER	595089001
29	SCREW	594119901
40	V-BELT	594180801
41	CLIP	594329501
42	SCREW	594329401
43	HOSE	594336901
45	HOSE	595049601
46	PROTECTION	594164501
47	FLANGE	594753001
48	SCREW	595034401
50	BRACKET	594182801
51	SCREW H M10 x 90 CL8.8 DIN933 ZnB	594119501
52	NUT М10 DIN 934-8 Zn	595029401
53	BELT	594431401
54	SNAP RING	595045501
55	BALL BEARING	594259101
56	SNAP RING	595046101
57	BELT	594440101
58	SHAFT	594431501
59	WASHER	594124001
60	SCREW	595345301
61	SCREW M8 х 25	595034501
65	ENGINE	596241206
67	SOCKET M6 х 12	595347901
68	BELT GUIDE	594192401
69	SCREW M10 x 100, 8.8, A3K	595345001
70	WASHER	594747401
71	BALL BEARING	594192701
72	BELT	594192301
73	SHAFT	594192601
74	BALL BEARING	594126501
75	PROTECTION Heat protection	595370801
