Husqvarna Construction Products
>
POKERS
>

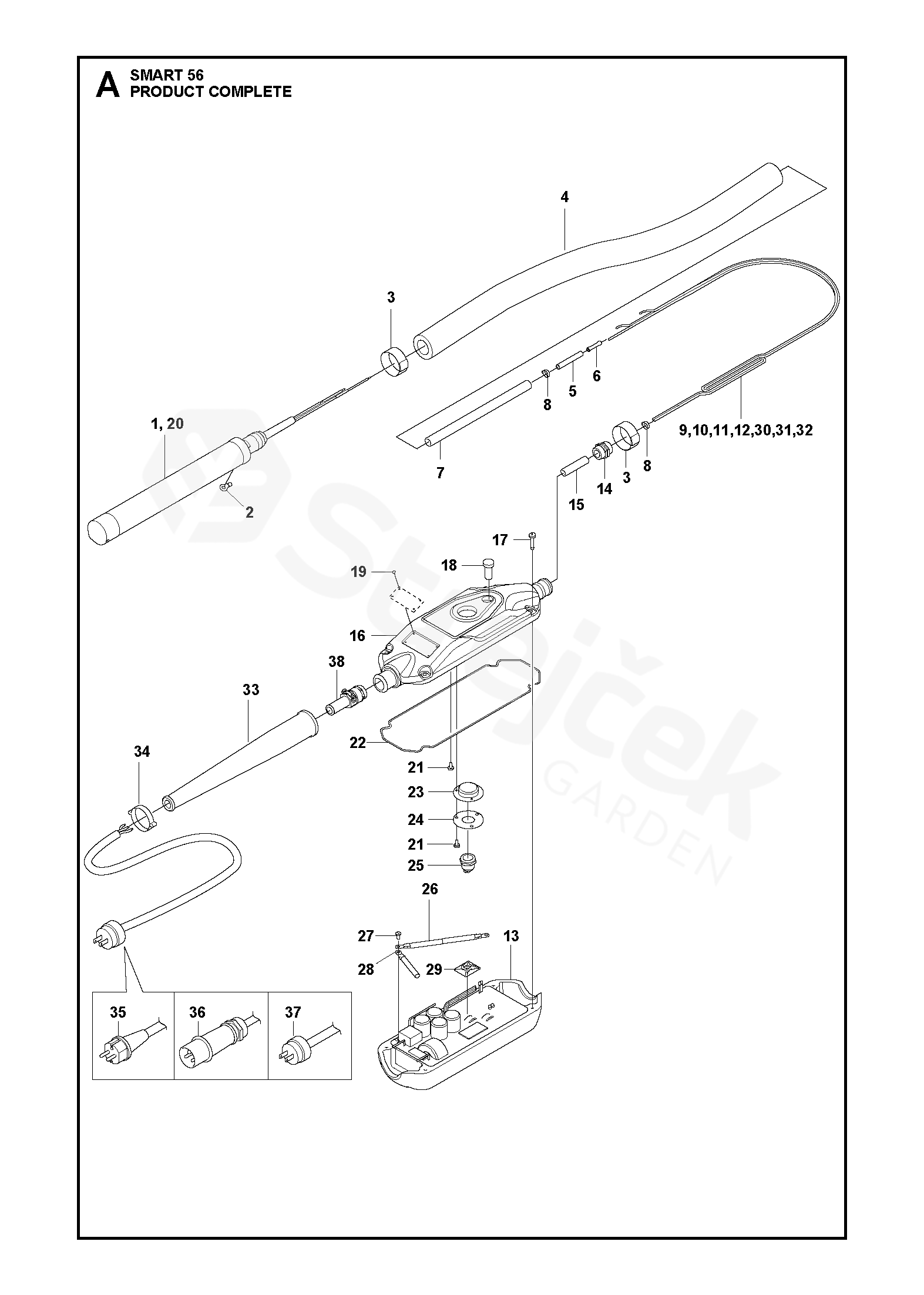

SMART 56/SMART 56E SMART 56/SMART 56E, 967856003, 967856004, 967856005, 967940301, 967940303, 2019-08
>
PRODUCT COMPLETE
Back to
SMART 56/SMART 56E
SMART 56/SMART 56E, 967856003, 967856004, 967856005, 967940301, 967940303, 2019-08
PRODUCT COMPLETE
SMART 56/SMART 56E
SMART 56/SMART 56E, 967856003, 967856004, 967856005, 967940301, 967940303, 2019-08
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
SMART 56/SMART 56E, 967856003, 967856004, 967856005, 967940301, 967940303, 2019-08
1
HEAD
Vibrating head SMART 56 230V
594627101
2
CLIP
594794701
3
CLAMP
594281701
4
HOSE
594388405
5
INSULATION
594257501
6
SLEEVE
595118501
7
HOSE
594254904
8
CLAMP
594286401
9
CABLE
White wire
594287702
10
WIRE
Red wire
598479102
11
WIRE
Blue wire
594285903
12
CABLE
Ground wire, yellow/green
594527804
13
UNIT
594619801
14
BOX
594408801
15
HOSE
594257102
16
COVER
594623001
17
SCREW
M5x30 DIN 7500C
594620401
18
HANDLE
594620201
19
RIVET
595141401
20
HEAD
Vibrating head SMART 56 115V
594627201
21
SCREW
M4x8 DIN 7500
594620301
22
O-RING
233x3 NBR 70 shore
594621401
23
DIAPHRAGM
594619901
24
PLATE
594620001
25
SWITCH
594620101
26
WIRE
594630701
27
SCREW
M4x8 BRASS DIN84A
594286101
28
UNIT
594853601
29
CLIP
595196501
30
WIRE
White wire, ETL poker, US
595196601
31
WIRE
Blue wire, ETL poker, US
595196701
32
WIRE
Red wire, ETL poker, US
598479201
33
SHEET
594256801
34
CLAMP
594255201
35
CABLE
Cable with plug EU 230 V
595045201
36
CABLE
Cable with plug UK 115 V
594623301
37
PLUG
Cable with plug US 115 V cETLus
595196801
38
PISTON
594619301
