BATTERY TELESCOPIC PRUNER TCS 20/18V P4A
BATTERY TELESCOPIC PRUNER TCS 20/18V P4A, 14770,
PRODUCT COMPLETE
BATTERY TELESCOPIC PRUNER TCS 20/18V P4A
BATTERY TELESCOPIC PRUNER TCS 20/18V P4A, 14770,

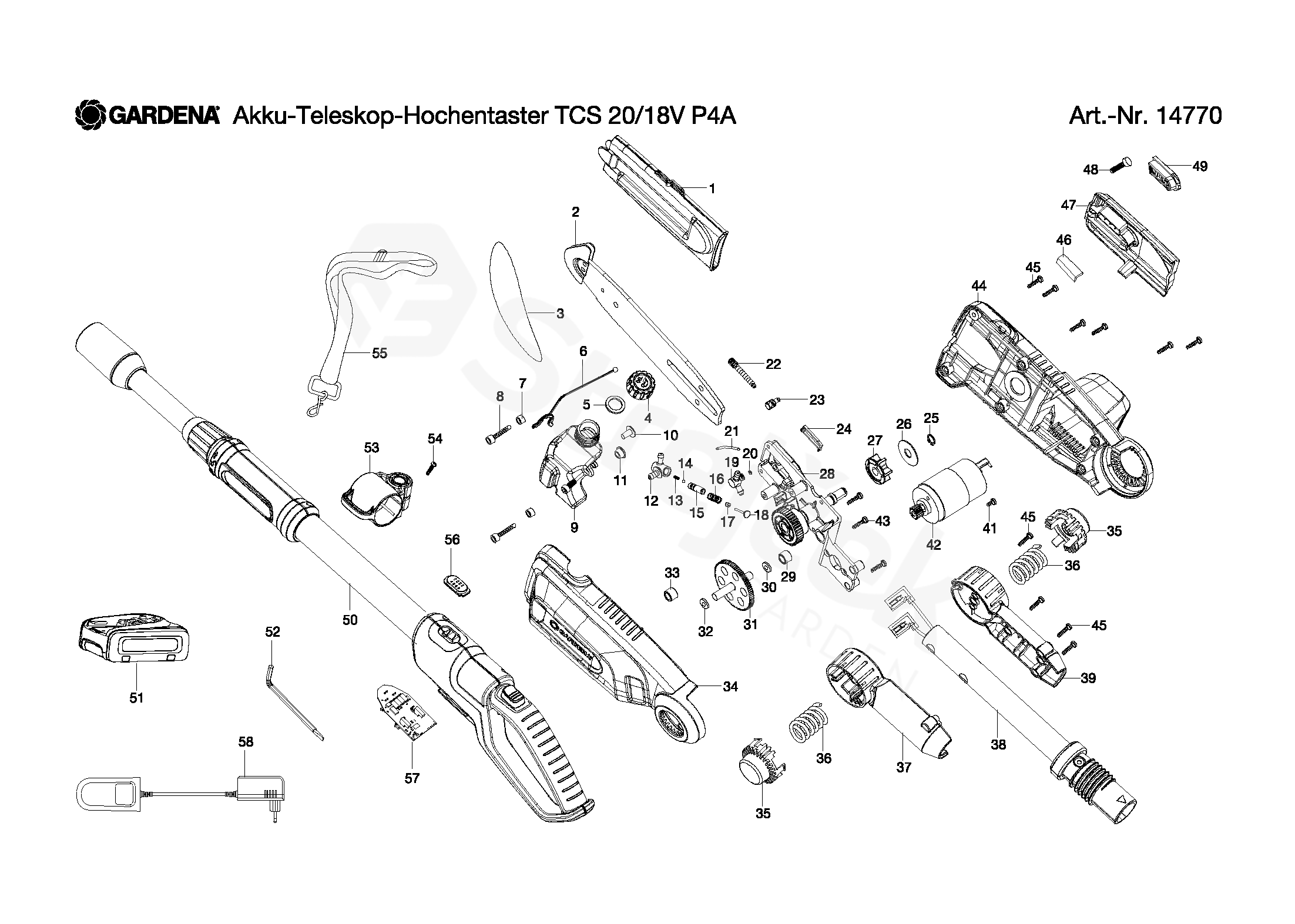

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
BATTERY TELESCOPIC PRUNER TCS 20/18V P4A, 14770,
1
CHAIN GUARD 8866-00.900.01
8866-00.900.01
586640701
2
GUIDE BAR 8866-00.900.02
8866-00.900.02
586640801
3
CHAIN 4049-00.701.00
4049-00.701.00
586611301
8
SCREW 8866-00.900.03
8866-00.900.03
586640901
9
OIL TANK 8866-00.900.04
8866-00.900.04
586641001
10
VALVE 8866-00.900.05
8866-00.900.05
586641101
11
GASKET 8866-00.900.06
8866-00.900.06
586641201
19
CONNECTION 8866-00.900.07
8866-00.900.07
586641301
20
O-RING 8866-00.900.08
8866-00.900.08
586641401
21
OIL PIPE 8866-00.900.09
8866-00.900.09
586641501
22
SCREW 8866-00.900.10
8866-00.900.10
586641601
23
BOLT 8866-00.900.11
8866-00.900.11
586641701
24
SEAL 8866-00.900.12
8866-00.900.12
586641801
25
KROUŽEK 8866-00.900.13
8866-00.900.13
586641901
26
DISC 8866-00.900.14
8866-00.900.14
586642001
27
ŘETĚZKA 8866-00.900.15
8866-00.900.15
586642101
34
HOUSING
8866-00.600.01
588051101
35
TRIGGER 8866-00.900.16
8866-00.900.16
586642201
36
PRUŽINA 8866-00.900.17
8866-00.900.17
586642401
37
MAIN BODY 8866-00.900.18
8866-00.900.18
586642601
38
ADAPTER 8866-00.900.19
8866-00.900.19
586644901
39
MAIN BODY 8866-00.900.20
8866-00.900.20
586645001
42
MOTOR ASSY 8866-00.900.21
8866-00.900.21
586645101
44
HOUSING
8866-00.600.02
588051201
45
SCREW 8866-00.900.22
8866-00.900.22
586645201
46
GASKET 8866-00.900.23
8866-00.900.23
586645301
47
COVER 8866-00.900.24
8866-00.900.24
586645401
48
SCREW 8866-00.900.25
8866-00.900.25
586645501
49
PRESSURE PLATE 8866-00.900.26
8866-00.900.26
586645601
51
BATTERY
14905-00.600.00
599992201
52
KLÍČ 8866-00.900.28
8866-00.900.28
586645801
55
HARNESS ASSY 8866-00.904.00
8866-00.904.00
586646301
56
COVER
14700-00.600.01
599576801
57
PRINTED CIRCUIT ASSY
14732-00.610.00
599579001
58
CHARGER
14900-00.600.00
599993201
149
ATTACHMENT 8866-00.905.00
8866-00.905.00
586646401
12,13,14,15,16,17,18
OIL PUMP ASSY 8866-00.902.00
8866-00.902.00
586646101
28,29
MOTOR SUPPORT 8866-00.903.00
8866-00.903.00
586646201
4,5,6
CAP ASSY 8866-00.901.00
8866-00.901.00
586646001
50,56,57
HANDLE ASSY
14732-00.620.00
529729101
53,54
HOLDER 8866-00.900.29
8866-00.900.29
586645901
