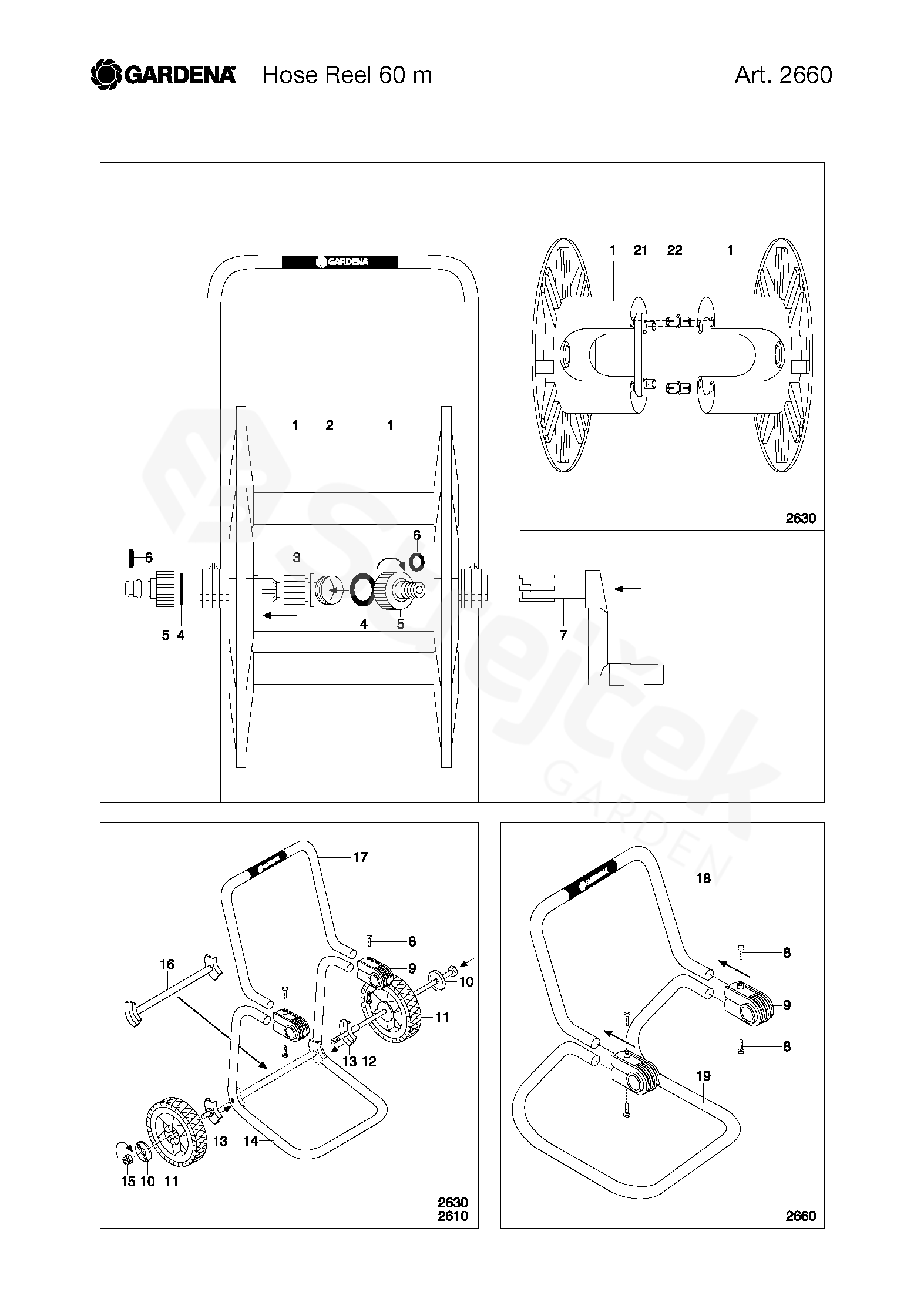

Spare parts > Gardena > WATERING > HOSE REEL 60 M HOSE REEL 60 M, 2660 > Art. 2660-20, until 2001
Back to
Art. 2660-20, until 2001
HOSE REEL 60 M HOSE REEL 60 M, 2660
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HOSE REEL 60 M, 2660
1 REEL DISC 60 2613-00.600.31
2613-00.600.31 		520468001
2 CROSS ARM 2613-00.600.36
2613-00.600.36 		520468101
3 BEARING SOCKET 2625-00.712.00
2625-00.712.00 		520469601
4 WASHER
1121-00.600.01 		596775201
6 O-RING 18300-00.600.16, not shown in image
18300-00.600.16 		501301801
7 CRANK CPL. 2613-00.610.00
2613-00.610.00 		520468201
8 SHEET METAL SCREW 4.2X13 1625-00.600.16
1625-00.600.16 		520401101
9 REEL SHAFT 2610-00.600.31
2610-00.600.31 		520466801
4,5,6 TAP CONNECTOR CPL. 3/4 901-00.100.00
901-00.100.00 		520331801
