Spare parts
Everything for your machines
Art. 2630-20, 1997 - 2000

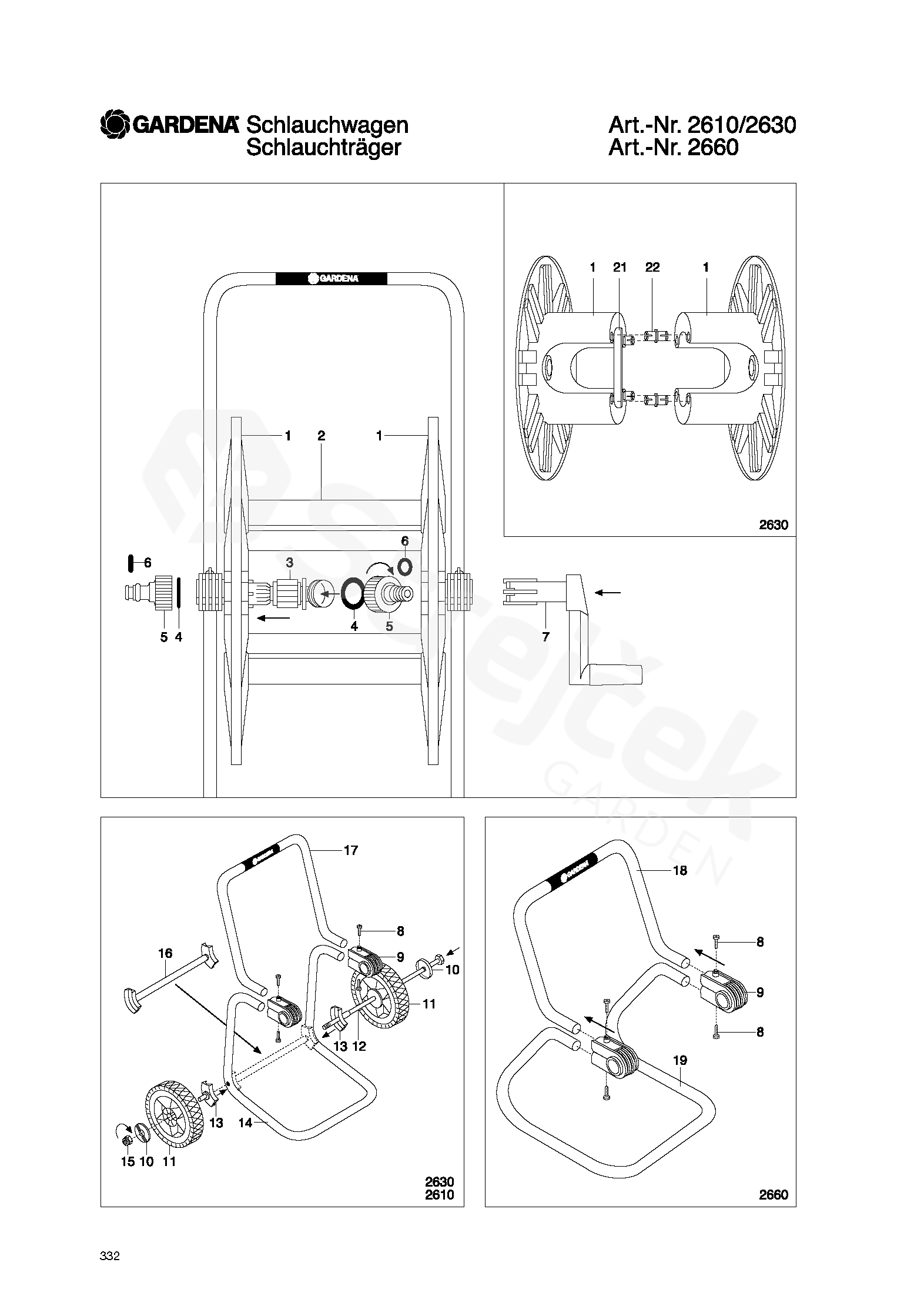

HOSE TROLLEY 100 M HOSE TROLLEY 100 M, 2630
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HOSE TROLLEY 100 M, 2630
3 BEARING SOCKET 2625-00.712.00
2625-00.712.00
520469601
4 WASHER
1121-00.600.01
596775201
6 O-RING 18300-00.600.16, not shown in image
18300-00.600.16
501301801
7 CRANK CPL. 2613-00.610.00
2613-00.610.00
520468201
8 SHEET METAL SCREW 4.2X13 1625-00.600.16
1625-00.600.16
520401101
9 REEL SHAFT 2610-00.600.31
2610-00.600.31
520466801
10 WHEEL NUT 2610-00.600.11
2610-00.600.11
520466501
13 WHEEL BEARING 2610-00.009.02
2610-00.009.02
520466301
15 HEXAGON NUT 2610-00.008.13
2610-00.008.13
520466101
21 INTERMEDIARY 2631-00.600.16
2631-00.600.16
520469901
22 DOWEL 2625-00.600.16
2625-00.600.16
520469301
POLY BAG. ACCESSORIES 2610-00.792.00
2610-00.792.00, not shown in image
520467201
4,5,6 TAP CONNECTOR CPL. 3/4 901-00.100.00
901-00.100.00
520331801
