VALVE BOX 9V BLUETOOTH SET VALVE BOX 9V BLUETOOTH SET, 1286,
>
PRODUCT COMPLETE
Back to
VALVE BOX 9V BLUETOOTH SET
VALVE BOX 9V BLUETOOTH SET, 1286,
PRODUCT COMPLETE

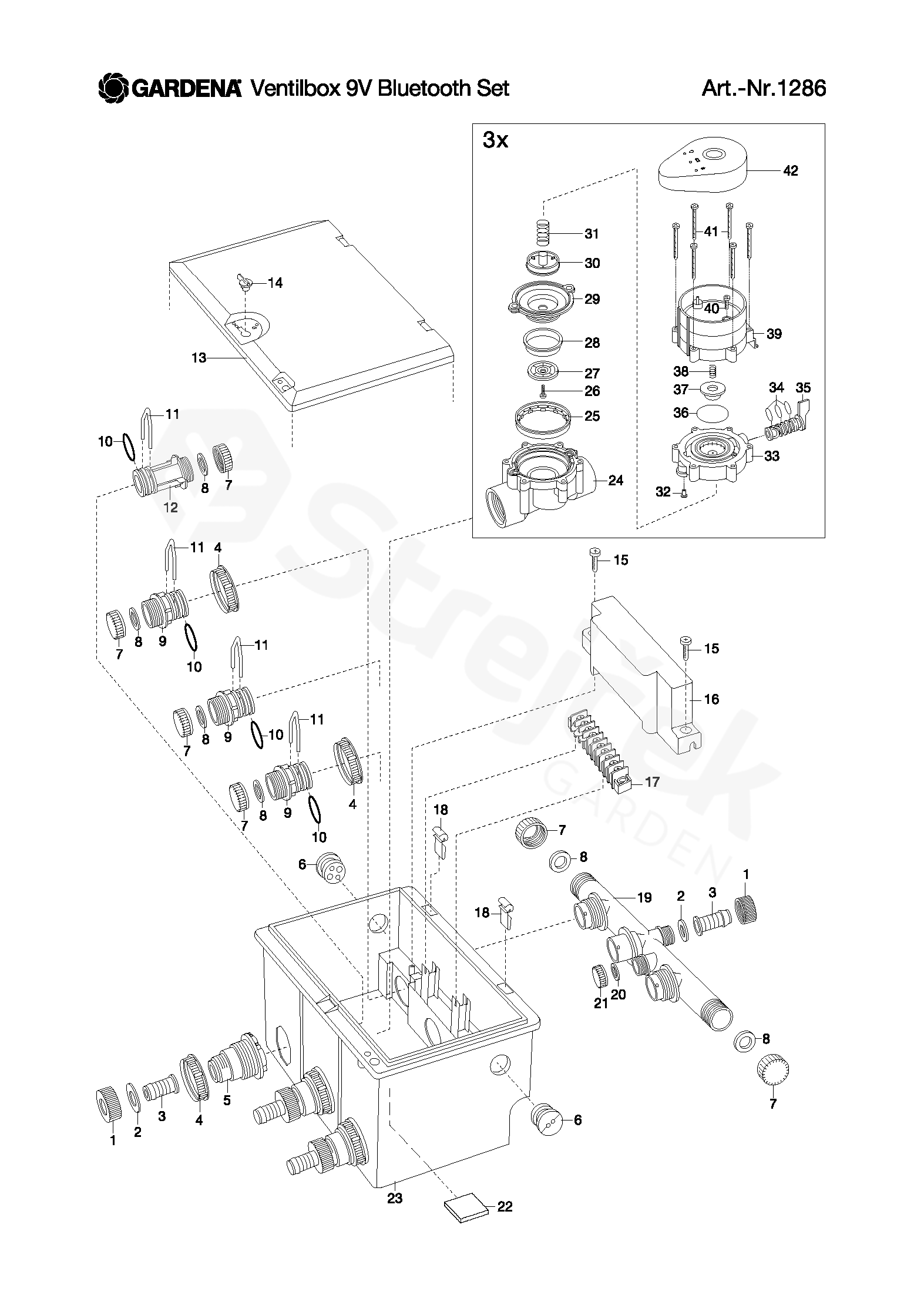

VALVE BOX 9V BLUETOOTH SET
VALVE BOX 9V BLUETOOTH SET, 1286,
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
VALVE BOX 9V BLUETOOTH SET, 1286,
4
NUT 1252-00.500.01
1252-00.500.01
520347801
5
ADAPTER 1255-00.600.21
1255-00.600.21
520349001
6
CLIP 1255-00.600.40
1255-00.600.40
520349401
9
CONNECTING BUSH. SHORT 1255-00.600.35
1255-00.600.35
520349301
10
O-RING
1252-00.500.40
590191101
11
BOW 1252-00.500.21
1252-00.500.21
520347901
12
CONNECTING BUSH. LONG 1255-00.600.30
1255-00.600.30
520349201
13
COVER 1240-00.600.06
1240-00.600.06
520345101
14
TURNING KNOB 1594-00.600.51
1594-00.600.51
520399501
15
SHEET METAL SCREW 4.2X19 2315-00.600.01
2315-00.600.01
520432201
16
COVERING
1255-00.600.06
520348701
17
TERMINAL BLOCK 1255-00.600.26
1255-00.600.26
520349101
18
CLIP 1255-00.600.16
1255-00.600.16
520348901
19
DISTRIBUTION PIPE 1255-00.600.11
1255-00.600.11
520348801
20
WASHER
1121-00.600.01
596775201
22
BAND 1240-00.600.31
1240-00.600.31
520345601
23
SHAFT 1255-00.600.45
1255-00.600.45
510123101
24
VALVE BODY 1251-00.500.31
1251-00.500.31
520347401
31
PRESSURE SPRING. LARGE 1174-00.610.08
1174-00.610.08
520340501
32
CONTROL NOZZLE RED 1815-00.610.27
1815-00.610.27
520419001
33
VALVE COVER CPL. 1251-00.560.00
1251-00.560.00
574725901
34
O-RING 7,5X2 913-00.680.01
913-00.680.01
520332401
36
O-RING 24X2 1672-00.600.11
1672-00.600.11
520402001
37
MAGNETIC PLATE COMPL. 1174-00.618.00
1174-00.618.00
525411201
38
PRESSURE SPRING. SMALL 1174-00.610.11
1174-00.610.11
520340601
39
ELECTRIC MAGNET. CPL. 1251-00.510.00
1251-00.510.00
520347501
40
SHEET METAL SCREW 3.5X25 1174-00.610.07
1174-00.610.07
520340401
42
UNIT
1287-00.600.00
529372801
2441
WATERING VALVE 1" 9 V 1251-00.500.00
1251-00.500.00
520347101
CONNECTOR
2758-00.901.00, not shown in image
599629601
1,2,3
CONNECTOR 1512-00.799.00
1512-00.799.00
520388301
2,8
WASHER 31.5/20X3 1122-00.000.01
1122-00.000.01
520338601
20,21
END CAP.CPL. 3/4 803-00.611.00
803-00.611.00
520318001
26,27,28,29,30
MEMBRANE COMPL. 1251-00.550.00
1251-00.550.00
520347701
34,35
MIXER DIAL. CPL. 1251-00.701.00
1251-00.701.00
523616201
7,8
CAP 1255-00.620.00
1255-00.620.00
581077401
