Spare parts > Husqvarna > Hedge Trimmers > 226 HD75 S 226HD75S > CYLINDER, PISTON & MUFFLER
Back to

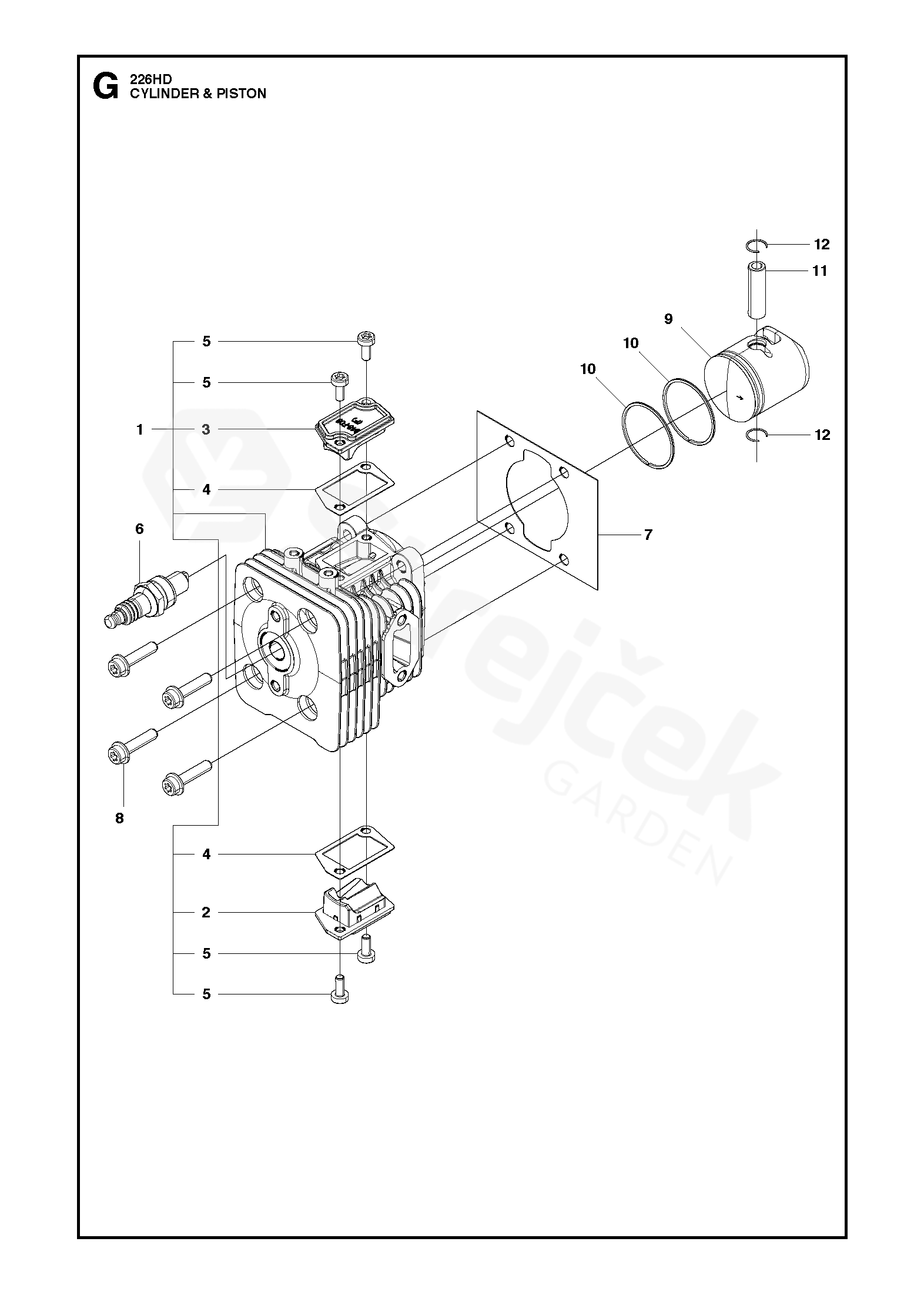

CYLINDER, PISTON & MUFFLER
226 HD75 S 226HD75S
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For 226HD75S
1 CYLINDER
20090100001-20130499999 		506653801
2 COVER 506654102
3 COVER 506654202
4 GASKET
20090100001-20130499999 		506654301
5 SCREW 504119201
6 SPARK PLUG
20090100001-20130499999 		506615101
7 GASKET 506629701
8 BOLT 506745201
9 PISTON
20090100001-20130499999 		506655001
10 KROUŽEK 506618101
11 KOLÍČEK 505040701
12 KROUŽEK 505045201
