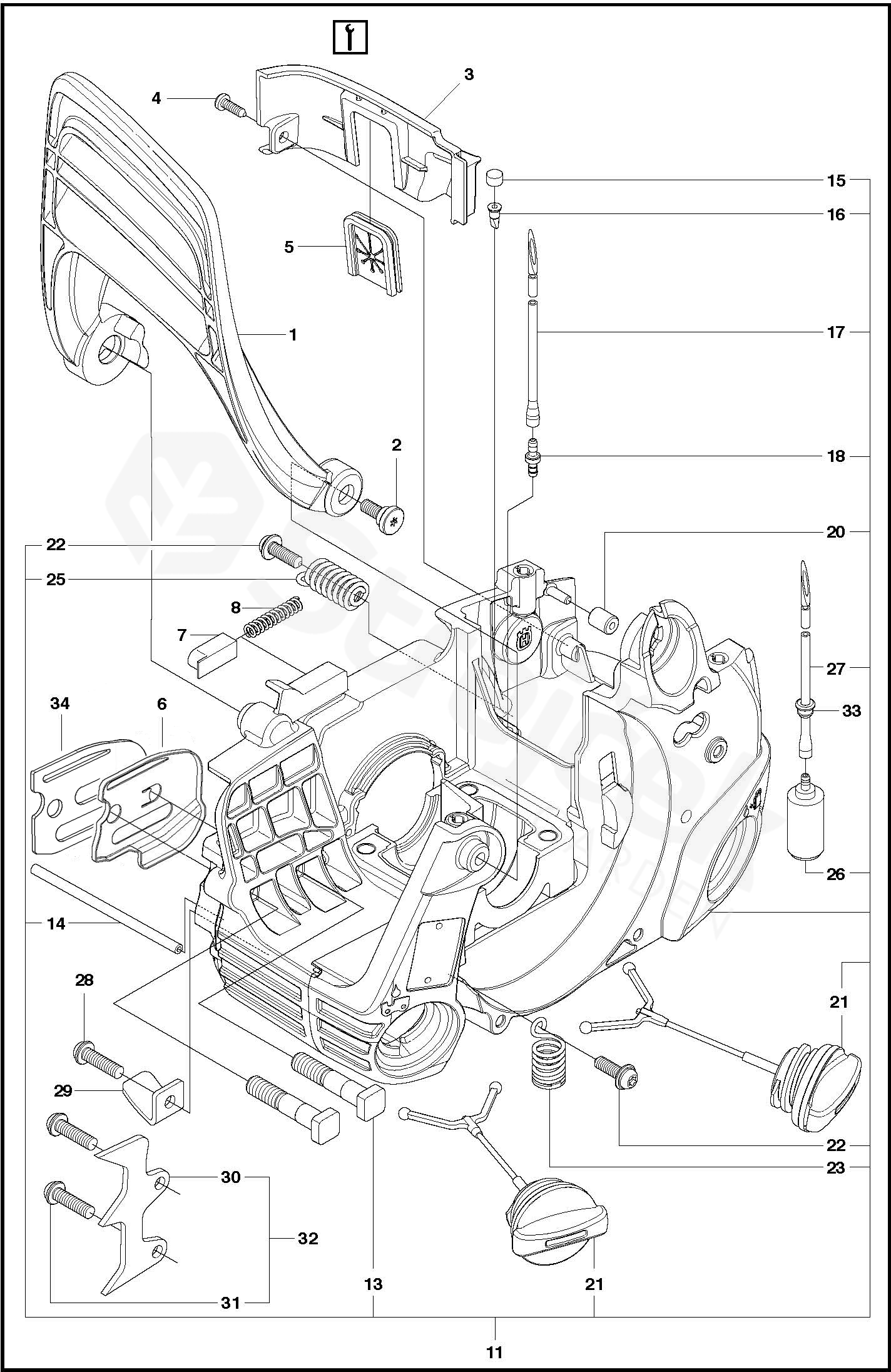

Spare parts - Partlist - 120 MARK II 120 MARK II - FUEL TANK & HANDLE

Everything for your machines

120 MARK II 120 MARK II (967861903 - 7391736617147)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 120 MARK II

1	HAND GUARD HAND GUARD ASSY HHS	577611901
2	BOSS BOSS SCREW HANDGUARD	545127301
3	REAR WHEEL REAR WHEEL	545061201
4	SCREW SCREW	545227101
5	GROMMET GROMMET REAR WALL	545075401
6	BAR BAR PLATE MOUNTING	545071401
7	CAP. SPRING HANDGUARD CAP. SPRING HANDGUARD	545071301
8	SPRING. HANDGUARD POSITION SPRING. HANDGUARD POSITION	545071201
11	CHASSIS For all EXCEPT For 967861912, 967861934, 967861936. CHASSIS ASSEMBLY MACH. BEARING.	587026801
13	BOLT BOLT M8 X 1.25	529310301
14	HADICE HOSE	545033501
15	PLUG PLUG	530029868
16	CHECK VALVE CHECK VALVE DUCKBILL	530026119
17	FUEL HOSE FUEL HOSE KIT LP100 5.3 O.D.	580727101
18	NIPPLE NIPPLE FITTING - FUEL LINE	530023877
20	ISOLATOR ISOLATOR FILTER HOUSING	545061901
21	TANK CAP ASSY TANK CAP ASSY GREY	544111203
22	SCREW SCREW	530015906
23	ISOLATOR ISOLATOR ASSY FRONT	545033801
25	SPRING For 967861912, 967861934, 967861936	577540601
26	ASSEMBLY ASSEMBLY FUEL PICKUP PRE FLUSHED	577167201
27	FUEL HOSE FUEL HOSE KIT LP100 5.3 O.D.	580727101
28	SCREW SCREW PT 60/10-14	530015814
29	CHAIN CATCHER CHAIN CATCHER	530029850
30	FELLING DOG FELLING DOG	530038990
31	SCREW SCREW	530016439
32	FELLING DOG FELLING DOG KIT SPIKE ASSEMBLY	530014381
33	BUSHING For 967861912, 967861934, 967861936	503735801
34	SPACER PLATE SPACER PLATE	592969801
