Spare parts > Husqvarna > RIDERS > CUTTING DECK C132 CUTTING DECK C132 > 52"/132CM CUTTING DECK
Back to

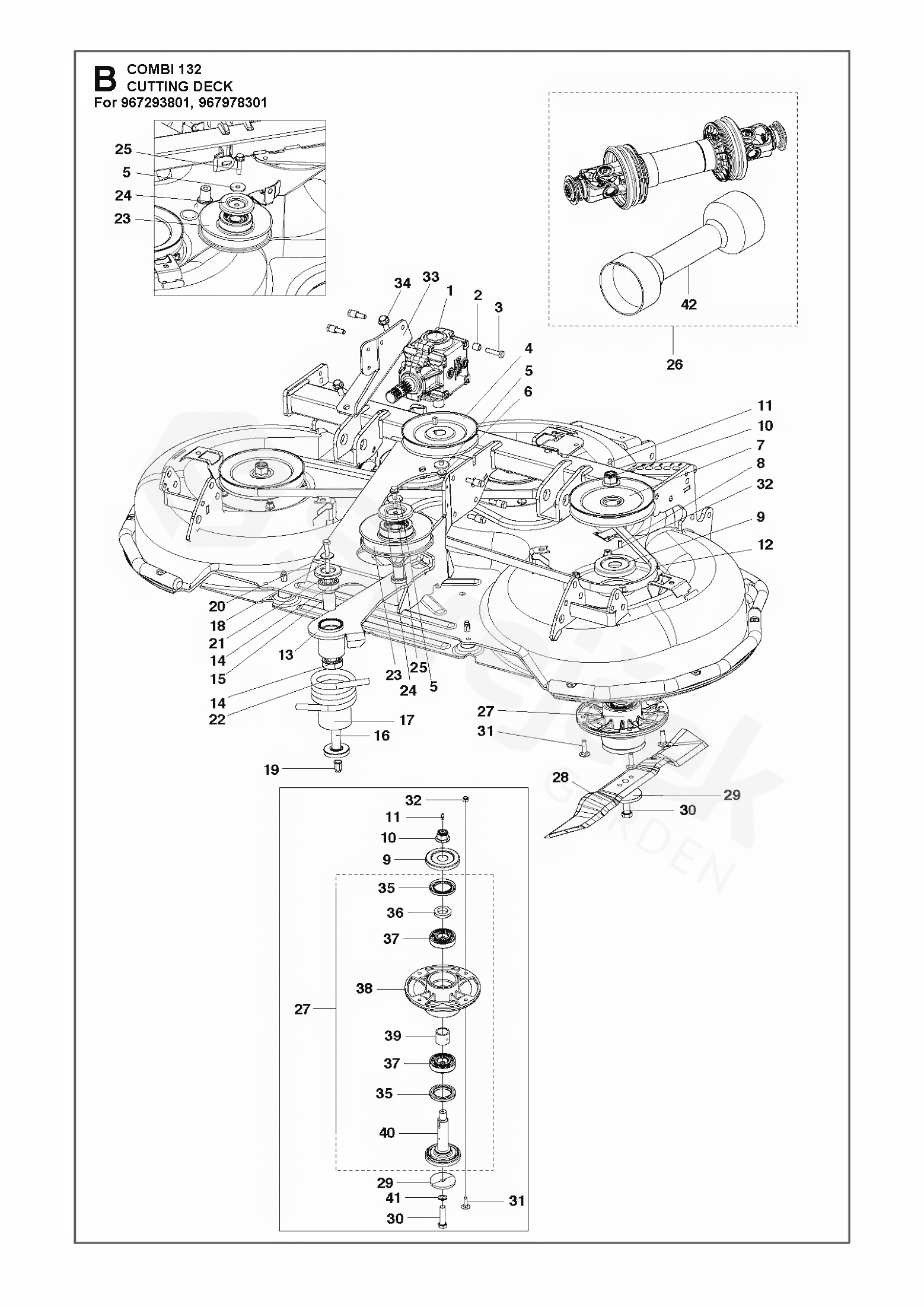

52"/132CM CUTTING DECK
CUTTING DECK C132 CUTTING DECK C132
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For CUTTING DECK C132
1 BEVEL GEAR 586224001
2 SLEEVE 585877301
3 BELT COVER 504021302
4 BELT COVER 585145102
5 BELT COVER 544221601
6 SCREW 577216501
7 PULLEY ASSY 583898101
8 PARALELNÍ KLÍN 506533501
9 DUST COVER 577970801
10 NUT FLANGE 577411901
11 LUBRICATION NIPPLE 738881001
12 BELT 589564201
13 ARM 586225801
14 BALL BEARING 738220319
15 DISTANCE 586226701
16 SHAFT 586226401
17 SPACER 525465601
18 SCREW EHHM 725246951
19 BLIND RIVET NUT 506916203
20 PODLOŽKA 734116441
21 KRYT 510254501
22 SPRING 586226101
23 BELT TENSIONER WHEEL ASSY 585128101
24 DUST COVER 587488301
25 SCREW EHHFM 506570106
26 SHAFT ASSY 586493201
27 BEARING HOUSING ASSY 588226201
28 BLADE 586198810
29 PLATE
588145602
30 SCREW EHHM 725254286
31 SCREW RSQM 535423805
32 NUT FLANGE 576645704
33 BRACKET 586224101
34 SCREW EHHFM 506675401
35 RADIAL SEAL 577226001
36 SPACER 577162401
37 BALL BEARING 580398001
38 BEARING HOUSING 578016101
39 SPACER 577207801
40 BLADE BRACKET 577970701
41 SPRING WASHER 579811701
42 COVER ASSY 579767301
