Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 415X AUTOMOWER 415X > BLADE MOTOR & CUTTING EQUIPMENT
Back to

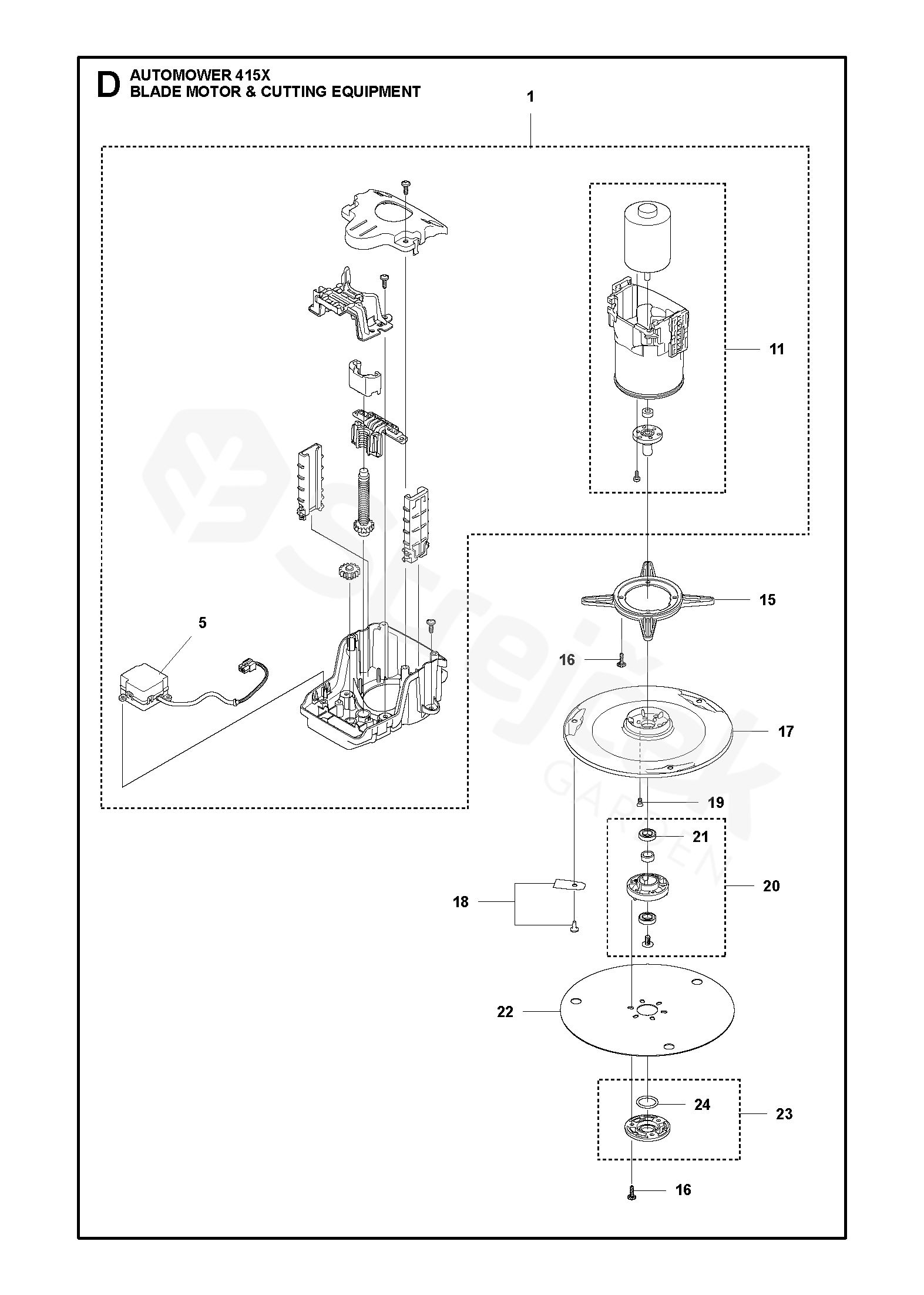

BLADE MOTOR & CUTTING EQUIPMENT
AUTOMOWER 415X AUTOMOWER 415X (970471711 - 7392930521056, 970471721 - 7392930518506)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For AUTOMOWER 415X
1 CUTTING SYSTEM
Cutting module assy 		599521301
5 MOTOR
HAM 		592735801
11 MOTOR ASSY 599428301
15 FRAME 599318201
16 SCREW 575543314
17 CUTTING DISC 597422201
18 BLADE SET
Endurance 6 pcs, Blister 		595084401
19 SCREW Screw 590508701
20 BEARING HOUSING ASSY 588421702
21 BALL BEARING
Tube 50 pcs 		593080801
22 SKID PLATE 598794801
23 COVER KIT 587449601
24 O-RING 585297501
