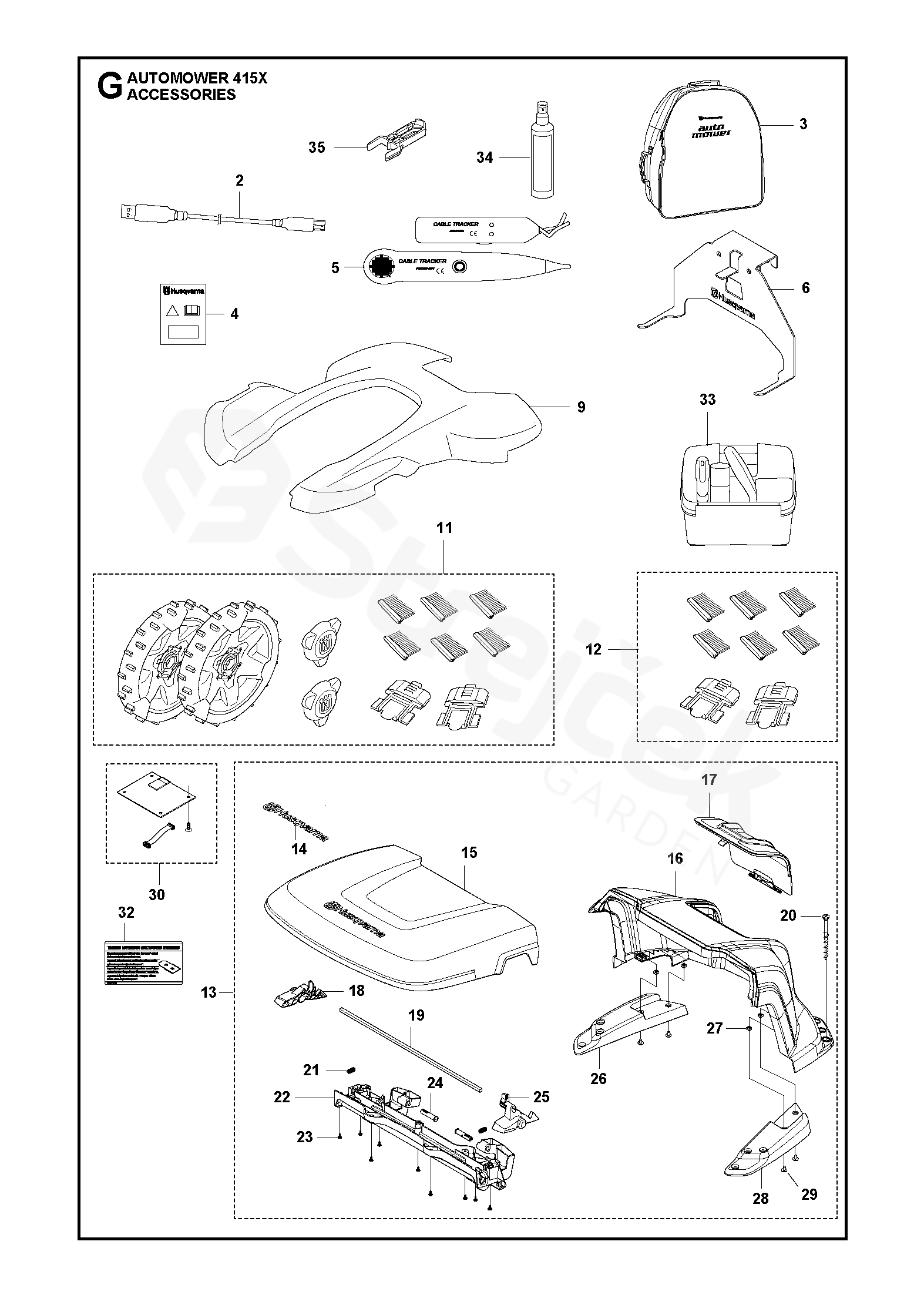

Spare parts - Partlist - AUTOMOWER 415X AUTOMOWER 415X - ACCESSORIES

Everything for your machines

AUTOMOWER 415X AUTOMOWER 415X (970471711 - 7392930521056, 970471721 - 7392930518506)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For AUTOMOWER 415X

2	CABLE Service Cable (USB)	577518102
3	BAG Bag	522916701
4	LABEL Warranty Seal 1pcs	580689502
5	TEST EQUIPMENT Test Equipment Interruption Detector	577606801
6	WALL HANGER Wallhanger AM305	597703601
9	BODY KIT Grey	529461303
11	WHEEL KIT Terrain KIT (Brush KIT + Rear wheels)	597705401
12	BRUSH 6 pcs Brush, 6 pcs	505132803
13	HOUSING House KIT	587236101
14	NÁLEPKA EMBLEM Decal	577469001
15	COVER Lid	585323501
16	COVER Cover Base	586993801
17	HATCH Hatch	585323601
18	HANDLE Handle Left	585324002
19	ROD Steel	585324101
20	ANCHOR 6 pcs+Key	597435801
21	SPRING Spring	580511401
22	BEAM Beam	585341601
23	SCREW Screw	575543314
24	HINGE PIN Hinge Pin	585341501
25	HANDLE Handle Right	585324001
26	SUPPORT Support Left	585323802
27	ANTIVIBRATION ELEMENT Square Nut	503226601
28	SUPPORT Support Right	585323801
29	SCREW IHPANM Screw	535129303
30	GPS MODULE AM Connect, KIT, UK,IE,CH,IT,ES,PT,DE,FR,AT,NL,BE,LUX,SI,SE,NO,DK,FI	586662309
32	DECAL Original Parts sticker EN ES FR IT Warning Original Blade UK,ES,FR,IT	591374103
33	KIT Maintenance and cleaning kit Maintenance and Cleaning	590855101
34	SPRAY Care and Shine 200ml	593967901
35	FORK	598764201
