Husqvarna
>
ICE AUGERS
>
ST 224 ST 224
>
CHASSIS, ENGINE & PULLEYS
Back to
ST 224
ST 224

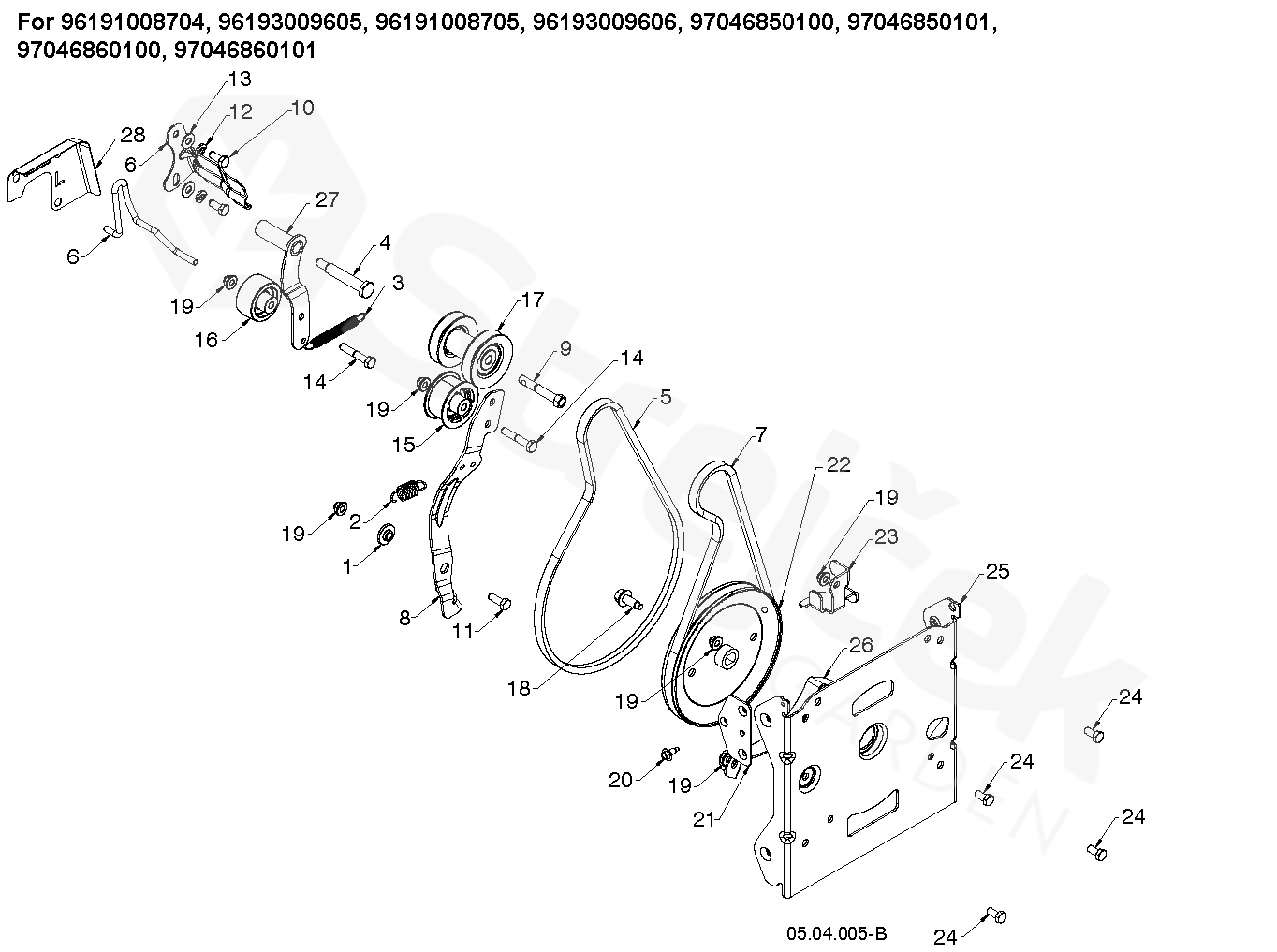

CHASSIS, ENGINE & PULLEYS
ST 224
ST 224
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST 224
1
BUSHING
587343701
2
PRUŽINA
587031201
3
PRUŽINA
580753001
4
BOLT
581413801
5
ŘEMEN
For 97046850101, 97046860101
582640701
6
GUIDE
For 97046850101, 97046860101
598644401
7
BELT
501818201
8
BRACKET
580831106
9
BOLT
582388401
10
SCREW
For 97046850101, 97046860101
874610516
11
BOLT
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101
596322201
12
WASHER
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101
596238801
13
WASHER
596204101
14
BOLT
874760528
15
PULLEY
For 97046850100, 97046860100
586880202
16
PULLEY
For 96191008704, 96193009605, 96191008705, 96193009606, 97046850100, 97046860100
586880202
17
PULLEY
For 97046850101, 97046860101
589262203
18
SCREW
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101
595517901
19
NUT
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101
594944401
20
SCREW
585517801
21
BRACKET
590044602
22
PULLEY
590699201
23
GUIDE
587587202
24
SCREW
For 96191008705, 96193009606, 97046850100, 97046850101, 97046860100, 97046860101
596031601
25
TBD CONTACT HONDA 1-800-426-7701
For 97046850101
TBD
26
RAMENO
For 97046850101, 97046860101
593192502
27
RAMENO
For 97046860101
593192502
28
COVER
For 97046850101, 97046860101
598711902
