Spare parts > Husqvarna > ICE AUGERS > ST 324P ST 324P > AUGER HOUSING & IMPELLER
Back to

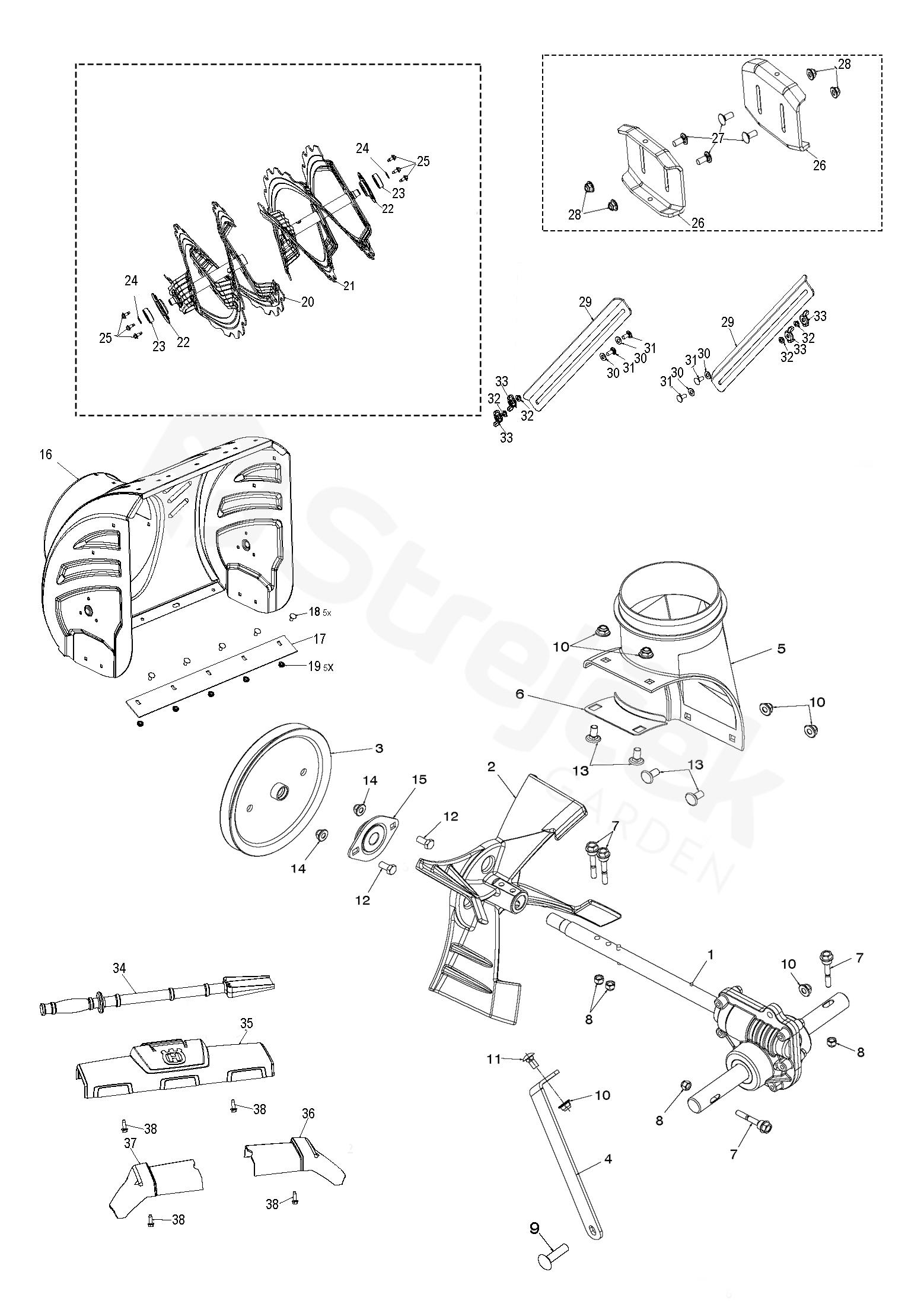

AUGER HOUSING & IMPELLER
ST 324P ST 324P
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 324P
1 GEARBOX 586715001
2 IMPELLER 585198303
3 PULLEY 586715401
4 SUPPORT 585109004
5 CHUTE 585056901
6 DESKA 532184095
7 BOLT 588077501
8 MATICE 873800400
9 BOLT 872110510
10 BOLT 585691301
11 BOLT 585832001
12 BOLT 532163183
13 BOLT 585691201
14 MATICE 532427942
15 BEARING 532188909
16 HOUSING ASSY 581708367
17 PLATE 585048302
18 BOLT 872270505
19 MATICE 532155377
20 AUGER LH
For 96193009103 		581970102
21 AUGER RH
For 96193009103 		581970202
22 BEARING SUPPORT 580855501
23 BEARING
For 96193009102 		532110485
24 CLIP 812000028
25 SCREW 585517801
26 BRACE 532407834
27 BOLT 585691701
28 BOLT 585691301
29 DRIFT BAR 532184747
30 SPACER 532179246
31 BOLT 872270506
32 PODLOŽKA 810040500
33 WING NUT 532128638
34 TOOL.CLEAN.OUT 532192199
35 TRIM 586414801
36 TRIM 586330302
37 TRIM 586330402
38 SCREW 817670412
