Spare parts > Husqvarna > ICE AUGERS > ST 227 ST 227 > CONTROL PANEL & DISCHARGE CHUTE
Back to

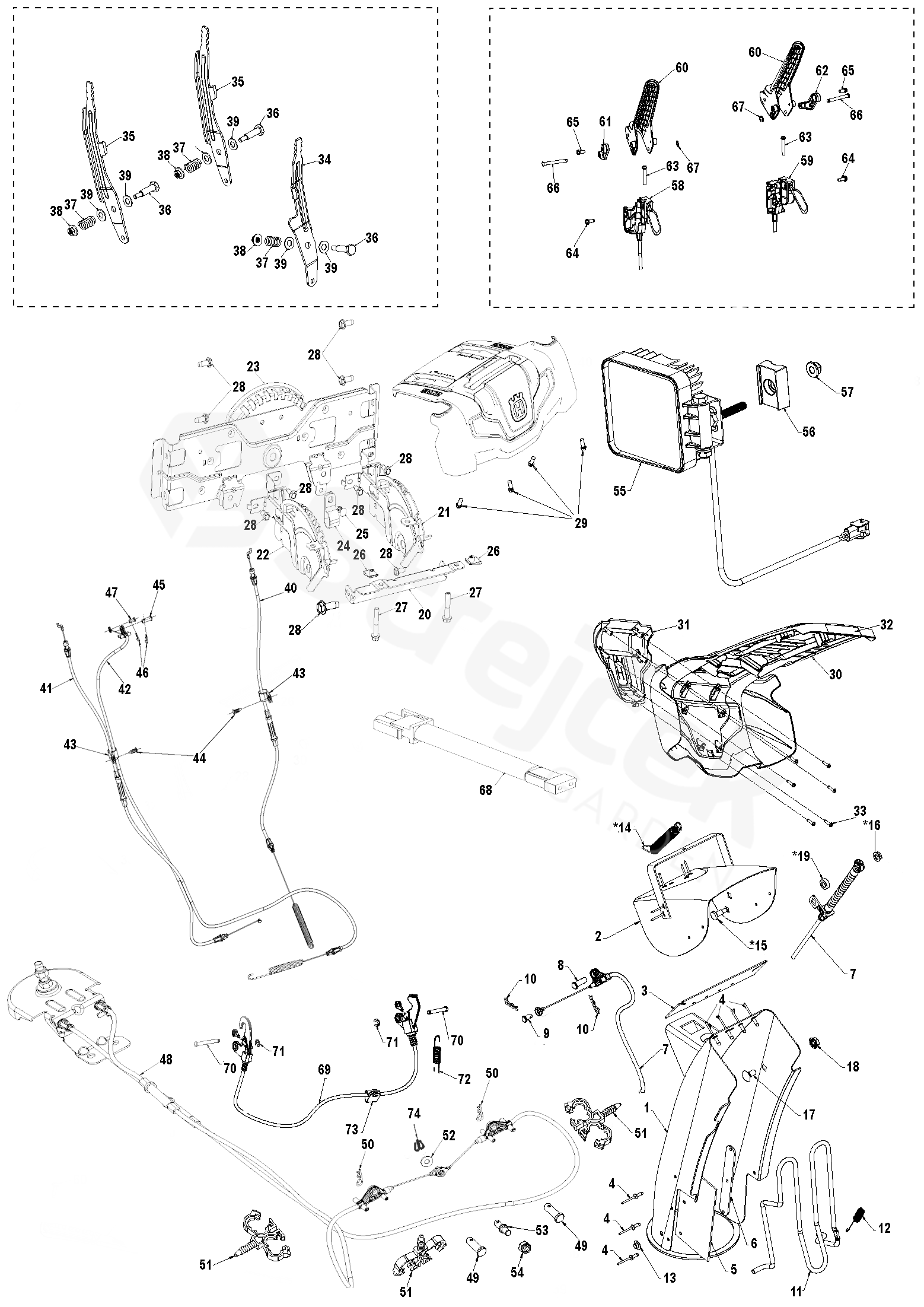

CONTROL PANEL & DISCHARGE CHUTE
ST 227 ST 227
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 227
1 CHUTE ASSY
INCLUDES KEY NUMBERS 1-6 		588077802
2 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
DEFLECTOR 		000000000
3 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SEAL 		000000000
4 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
POP RIVET 		000000000
5 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SHIELD 		000000000
6 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RETAINER 		000000000
7 LANKO KOMPL. 598450501
8 PEN 581329401
9 PEN 585808301
10 HAIR PIN COTTER 532423303
11 KRYT 593622201
12 SPRING 532435616
13 NUT 532059349
20 DRŽÁK 597991902
21 BRACKET 597992202
22 BRACKET 597992302
23 DRŽÁK 597992402
24 CLIP 532197991
25 FASTENER 532428124
26 MATICE 532174814
27 SCREW 501406601
28 SCREW 585517801
29 SCREW 532194189
30 OVLÁDACÍ PANEL
For 97046900100, 97046890100 		598803701
31 CONSOLE
For 97046900100, 97046890100 		598803801
32 NÁLEPKA
For 97046900100, 97046890100 		598812001
33 SCREW
For 97046900100, 97046890100 		532163409
34 LEVER 596786802
35 LEVER 581123902
36 BOLT 581329702
37 PRUŽINA 581329601
38 MATICE 586668901
39 SPACER 532179246
40 CABLE 582519002
41 CABLE 588113802
42 LANKO KOMPL. 598450401
43 CLIP 532197991
44 FASTENER 532428124
45 PEN
PIN 		581329401
46 HAIR PIN COTTER 532423303
47 PEN
PIN 		585808301
48 CABLE ASSY 598803401
49 PEN 581329401
50 HAIR PIN COTTER 532423303
51 CLIP 584652201
52 PODLOŽKA 586682101
53 CLEVIS PIN 599265401
54 PIN
For 97046890100 		587130803
55 LIGHT 590071301
56 MOUNTING BRACKET 590439801
57 NUT 594944401
58 CABLE 588263901
59 CABLE 588263902
60 LEVER 587463001
61 LEVER 587739701
62 LEVER 587739702
63 SCREW 581329501
64 SCREW 817060410
65 SCREW 817411308
66 KOLÍČEK 588147701
67 RETAINING RING 812000014
68 HARNESS 598458701
69 CABLE
For 97046900100, 97046890101, 97052870100 		593853401
70 PEN
For 97046900100, 97046890101, 97052870100 		532431762
71 RETAINING RING
For 97046900100, 97046890101, 97052870100 		812000014
72 SPRING
For 97046900100, 97046890101, 97052870100 		581151202
73 CLIP
For 97046900100, 97046890101, 97052870100 		532197991
*14 PRUŽINA 532184505
*15 BOLT 501417301
*16 MATICE 585691401
*17 BOLT 585832001
*18 MATICE 873970500
*19 PODLOŽKA 501417401
