Spare parts > Husqvarna > ICE AUGERS > ST 230 ST 230 > CHASSIS, ENGINE & PULLEYS
Back to

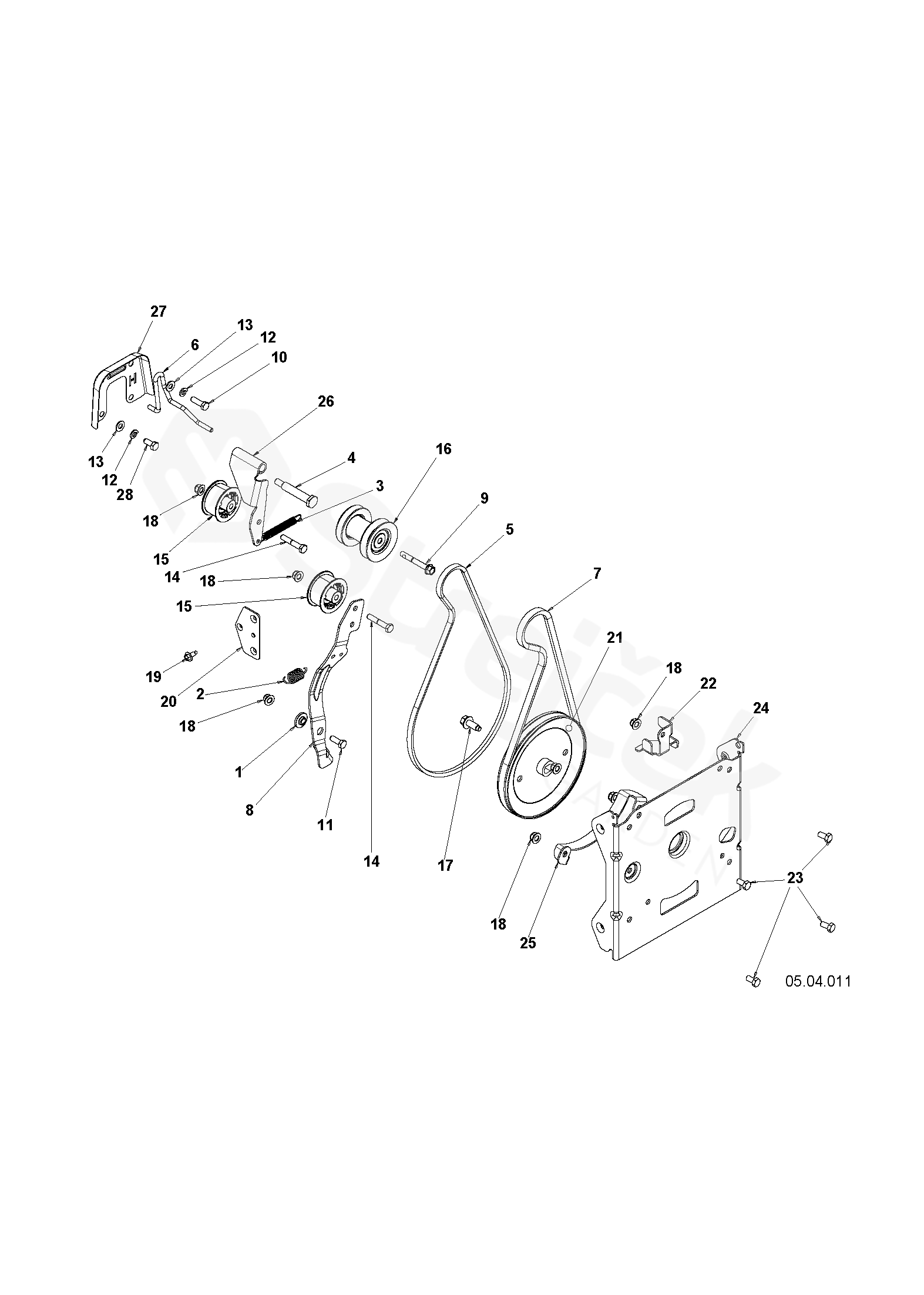

CHASSIS, ENGINE & PULLEYS
ST 230 ST 230
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 230
1 BUSHING 587343701
2 PRUŽINA 587031201
3 PRUŽINA 580753001
4 BOLT 581413801
5 BELT 582640702
6 VODÍTKO 598644401
7 BELT 501818202
8 BRACKET 580831106
9 BOLT 598758701
10 SCREW
For 97052880100 		874610516
11 BOLT 596322201
12 WASHER 596238801
13 WASHER 596204101
14 BOLT 874760528
15 PULLEY 581141402
16 PULLEY 598816003
17 SCREW 595517901
18 NUT 594944401
19 SCREW 585517801
20 BRACKET 590044602
21 PULLEY 590699201
22 GUIDE 587587202
23 SCREW 596031601
24 BRACKET 581592502
25 BRACKET 581632002
26 ARM
For 97052880100 		593192502
27 COVER 598712002
28 SCREW 874610512
