Husqvarna
>
ICE AUGERS
>
ST 327 ST 327
>

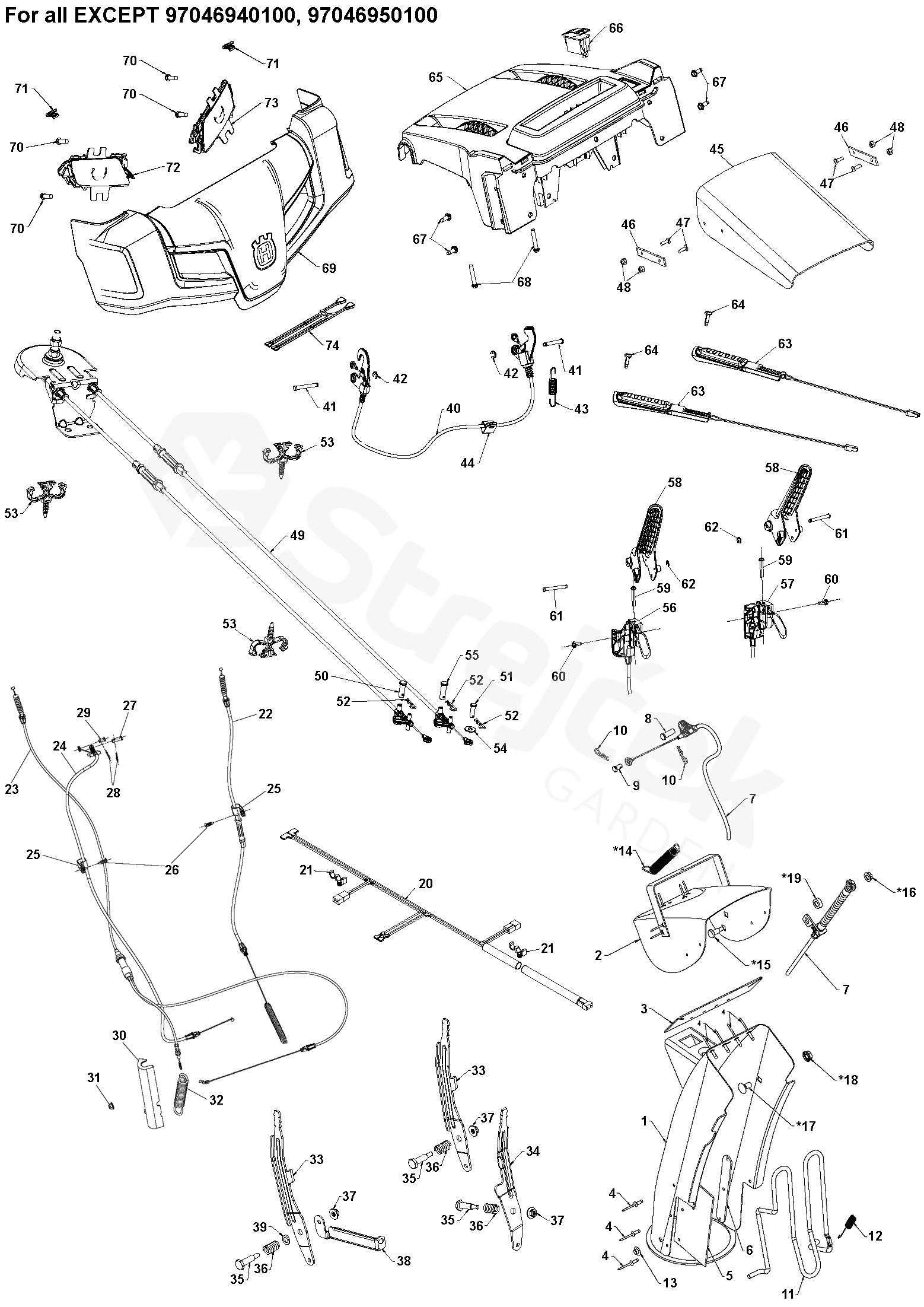

CONTROL PANEL & DISCHARGE CHUTE
Back to
ST 327
ST 327
CONTROL PANEL & DISCHARGE CHUTE
ST 327
ST 327
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
ST 327
1
CHUTE ASSY
588077802
2
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
DEFLECTOR
000000000
3
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SEAL
000000000
4
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
POP RIVET
000000000
5
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SHIELD
000000000
6
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RETAINER
000000000
7
CABLE
For 96193012701
590587002
8
PEN
581329401
9
PEN
585808301
10
HAIR PIN COTTER
532423303
11
KRYT
For 96193012701
593622201
12
SPRING
For 96193012701, 96193012700
532435616
13
NUT
For 96193012701, 96193012700
532059349
20
HARNESS
587535701
21
CLIP
532145006
22
CABLE
For 96193012401, 96193012701, Drive
501656603
23
CABLE
AUGER
579763601
24
CABLE
For 96193012401, 96193012701, SPEED
593848401
25
CLIP
532197991
26
FASTENER
532428124
27
PEN
581329401
28
HAIR PIN COTTER
532423303
29
PEN
585808301
30
COVER
CABLE COVER
589265201
31
NUT
For 96193012401, 96193012701
594944401
32
SPRING
For 96193012401, 96193012701
594716501
33
LEVER
581123902
34
LEVER
581241602
35
BOLT
581329702
36
PRUŽINA
581329601
37
MATICE
586668901
38
BRACE
584468402
39
PODLOŽKA
587031301
40
CABLE
593853401
41
PEN
532431762
42
RETAINING RING
812000014
43
PRUŽINA
581151201
44
CLIP
532197991
45
SHIELD
532421138
46
STRAP
532435831
47
SCREW
586118001
48
NUT
586118101
49
CABLE ASSY
581680302
50
PEN
581329401
51
PEN
877100812
52
HAIR PIN COTTER
532423303
53
CLIP
584652201
54
PODLOŽKA
586682101
55
PIN
587130803
56
CABLE
LH
588263901
57
CABLE
RH
588263902
58
LEVER
582917801
59
SCREW
581329501
60
SCREW
817060410
61
PEN
532431762
62
RETAINING RING
812000014
63
GRIP
590493601
64
FASTENER
532442250
65
CONSOLE
581131212
66
SWITCH
585805001
67
SCREW
817060410
68
SCREW
581329501
69
COVER
581127901
70
SCREW
532194189
71
CLIP
581928701
72
LIGHT
RH
586723501
73
LIGHT
LH
586723601
74
HARNESS
585868301
*14
PRUŽINA
532184505
*15
BOLT
501417301
*16
MATICE
585691401
*17
BOLT
585832001
*18
MATICE
873970500
*19
PODLOŽKA
501417401
