Spare parts > Husqvarna > ICE AUGERS > ST 330 ST 330 > CONTROL PANEL & DISCHARGE CHUTE
Back to

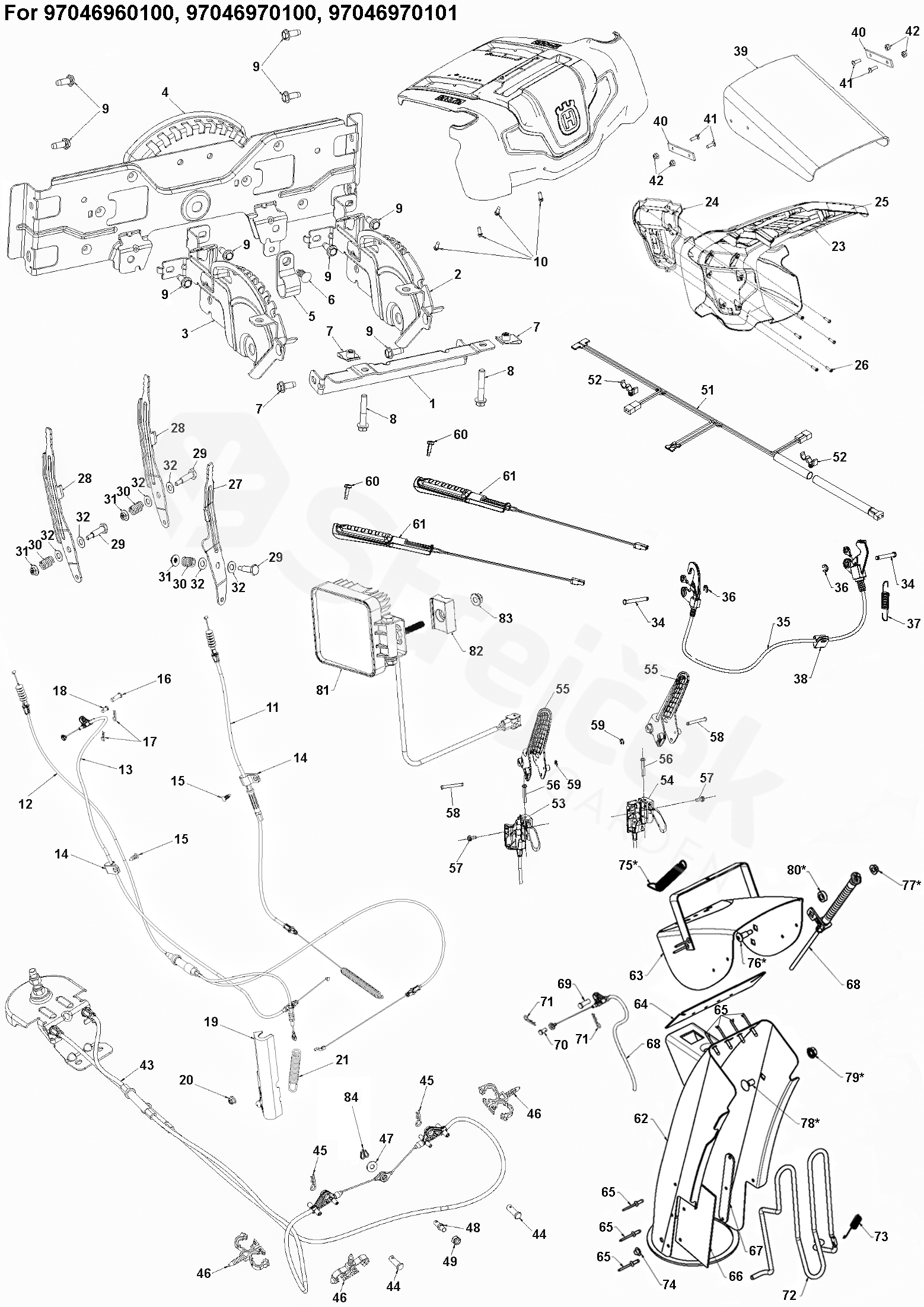

CONTROL PANEL & DISCHARGE CHUTE
ST 330 ST 330
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 330
1 DRŽÁK 597991902
2 BRACKET 597992202
3 BRACKET 597992302
4 DRŽÁK
RH 		597992402
5 CLIP
LH 		532197991
6 FASTENER 532428124
7 NUT.U-CHNL.1/4-20.550DP.350PNL 532417693
8 MATICE 532174814
9 SCREW 817060410
10 SCREW 585517801
11 CABLE
Drive 		501656603
12 CABLE
AUGER 		579763601
13 LANKO KOMPL.
SPEED 		598450401
14 CLIP 532197991
15 FASTENER 532428124
16 PEN 581329401
17 HAIR PIN COTTER 532423303
18 PEN 585808301
19 COVER
CABLE COVER 		589265201
20 NUT 594944401
21 SPRING 594716501
23 OVLÁDACÍ PANEL 598803701
24 CONSOLE 598803801
25 NÁLEPKA 598812001
26 SCREW 532163409
27 LEVER 596786802
28 LEVER 581123902
29 BOLT 581329702
30 PRUŽINA 581329601
31 MATICE 586668901
32 SPACER 532179246
34 PEN 532431762
35 CABLE 593853401
36 RETAINING RING 812000014
37 PRUŽINA 581151201
38 CLIP 532197991
39 SHIELD 532421138
40 STRAP 532435831
41 SCREW 586118001
42 NUT 586118101
43 CABLE ASSY 598803401
44 PEN 581329401
45 HAIR PIN COTTER 532423303
46 CLIP 584652201
47 PODLOŽKA 586682101
48 CLEVIS 596717201
49 NUT 595086601
51 HARNESS 598803601
52 CLIP 532145006
53 CABLE
LH 		588263901
54 CABLE
RH 		588263902
55 LEVER 582917801
56 SCREW 581329501
57 SCREW 817060410
58 PEN 532431762
59 RETAINING RING 812000014
60 FASTENER 532442250
61 GRIP 590493601
62 CHUTE ASSY 588077802
63 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
DEFLECTOR 		000000000
64 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SEAL 		000000000
65 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
POP RIVET 		000000000
66 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SHIELD 		000000000
67 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RETAINER 		000000000
68 LANKO KOMPL. 598450501
69 PEN 581329401
70 PEN 585808301
71 HAIR PIN COTTER 532423303
72 KRYT
For 97046970100, 97046970101 		593622201
73 SPRING
For 97046970100, 97046970101 		532435616
74 NUT
For 97046970100, 97046970101 		532059349
81 LIGHT 590071301
82 MOUNTING BRACKET 590439801
83 MATICE
For 97046960100 		532427942
75* PRUŽINA 532184505
76* BOLT 501417301
77* MATICE 585691401
78* BOLT 585832001
79* MATICE 873970500
80* PODLOŽKA 501417401
