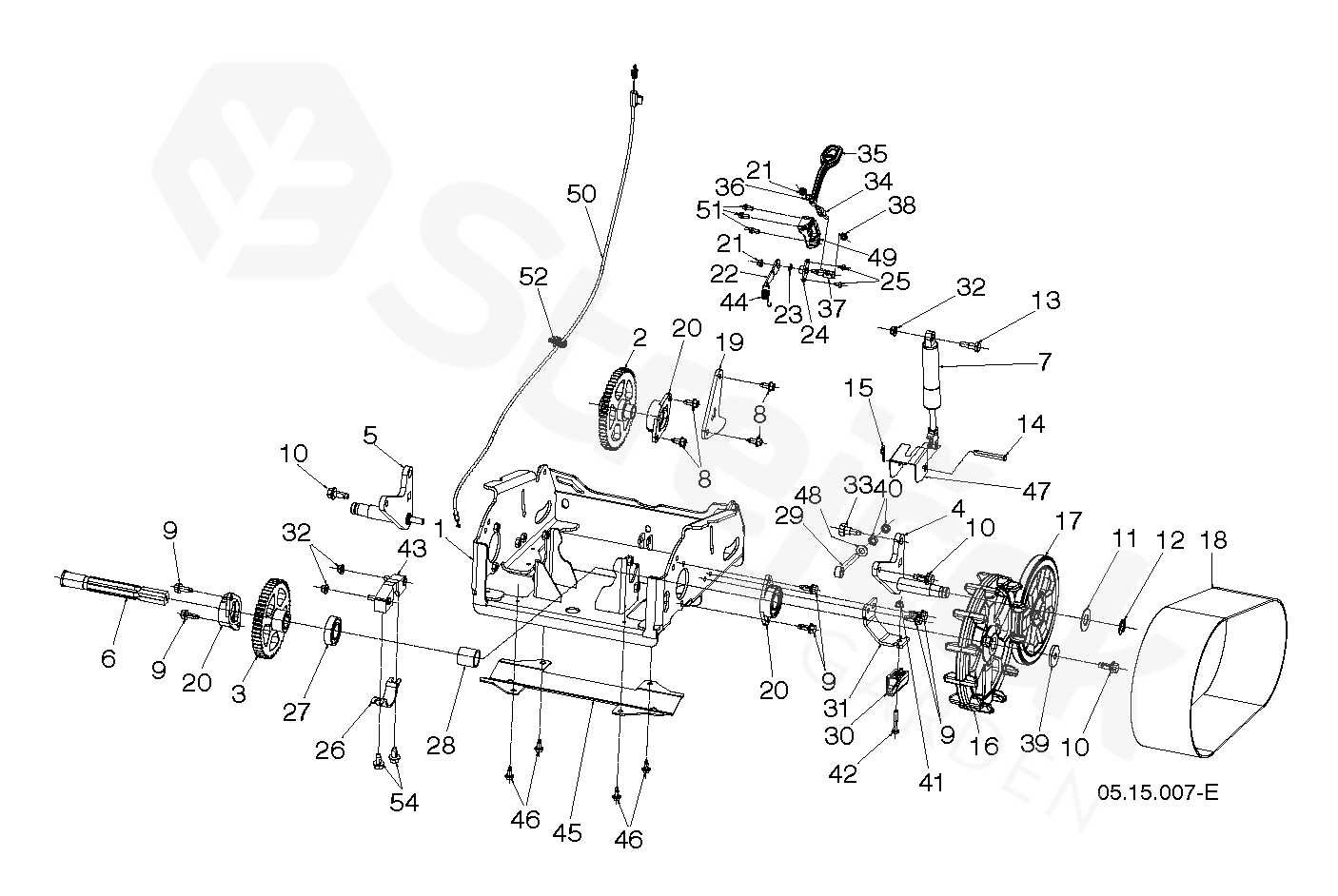

Spare parts - Partlist - ST 427T ST 427T - WHEELS & TIRES

Everything for your machines

ST 427T ST 427T

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For ST 427T

1	FRAME	589330402
2	GEAR	593092101
3	GEAR	589331801
4	ARM	589332401
5	ARM	589332402
6	AXLE	589459501
7	ACTUATOR ACTUATOR - LOCKABLE GAS (589 34 12-01)	589341201
8	BOLT	532428867
9	SCREW	595517701
10	SCREW	595517901
11	PODLOŽKA	532188967
12	POJISTNÝ KROUŽEK	812000029
13	BOLT	589353601
14	PIN	589353801
15	CLIP	532004497
16	SPROCKET	590554401
17	WHEEL	589367801
18	BELT	589367501
19	BRACKET	589793202
20	CARRIER	590000601
21	NUT	589927001
22	LEVER	597724402
23	WASHER	589746501
24	BUSHING	589645301
25	WASHER	532700216
26	MOUNT	590553701
27	BEARING	590553801
28	SPACER	590553901
29	ROD END	590554001
30	GUIDE	590554101
31	BRACKET	590554202
32	NUT	594944401
33	BOLT	590554302
34	ROD	590594301
35	LEVER	590594201
36	DISC SPRING	590594501
37	AXLE	590594401
38	NUT	595086601
39	SPACER PLATE	590698501
40	NUT	596433501
41	NUT	582478602
42	BOLT	874780424
43	MOUNT	590553601
44	SPRING	589481601
45	COVER	590849602
46	SCREW	585517801
47	COVER	590848402
48	WASHER	596565301
49	BRACKET	595080401
50	CABLE ASSY	589745901
51	SCREW	817411308
52	CLIP	592857401
54	BOLT	599351201
