Spare parts > Husqvarna > ICE AUGERS > ST 427T ST 427T > CONTROL PANEL & DISCHARGE CHUTE
Back to

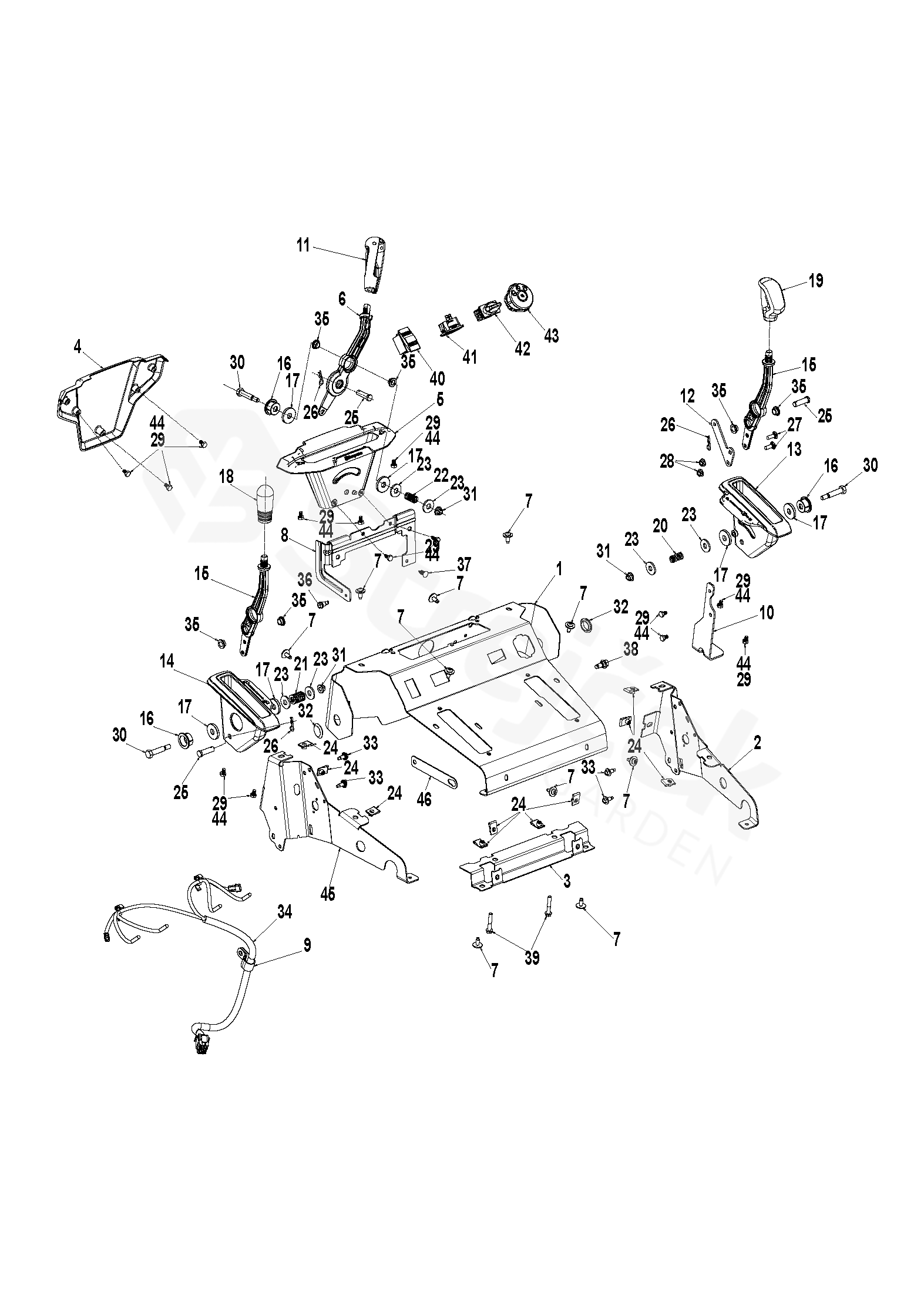

CONTROL PANEL & DISCHARGE CHUTE
ST 427T ST 427T
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 427T
1 CONSOLE 589626402
2 CONSOLE 589626804
3 BRACKET 589626902
4 BRACKET 589754201
5 BRACKET 589754301
6 LEVER 596924101
7 SCREW 589772201
8 BRACKET 599868801
9 CLIP 532197991
10 BRACKET 589796501
11 KNOB 589801101
12 LEVER 590774701
13 BRACKET 589754101
14 BRACKET 589754001
15 LEVER 589754401
16 BUTTON 589796101
17 PAD 589796201
18 KNOB 589796301
19 KNOB 589796401
20 SPRING 589800501
21 SPRING 596918401
22 SPRING 593075101
23 WASHER 597367401
24 NUT.U-CHNL.1/4-20.550DP.350PNL 532417693
25 CLEVIS PIN 590791701
26 HAIR PIN COTTER 532423303
27 BOLT 596238401
28 MATICE 532191730
29 BOLT 597425501
30 BOLT 593092001
31 NUT 594944401
32 PLUG 593084201
33 SCREW 585517801
34 HARNESS 529360501
35 BUSHING 590790601
36 BOLT 581726101
37 FASTENER 532428124
38 BOLT 532170165
39 SCREW 501406601
40 SWITCH 585805001
41 HOUR METER 596515501
42 SWITCH 591066501
43 SWITCH 594721801
44 WASHER 597425701
45 CONSOLE 589626803
46 BRACE 529585902
