Spare parts > Husqvarna > ICE AUGERS > ST 430 ST 430 > AUGER HOUSING & IMPELLER
Back to

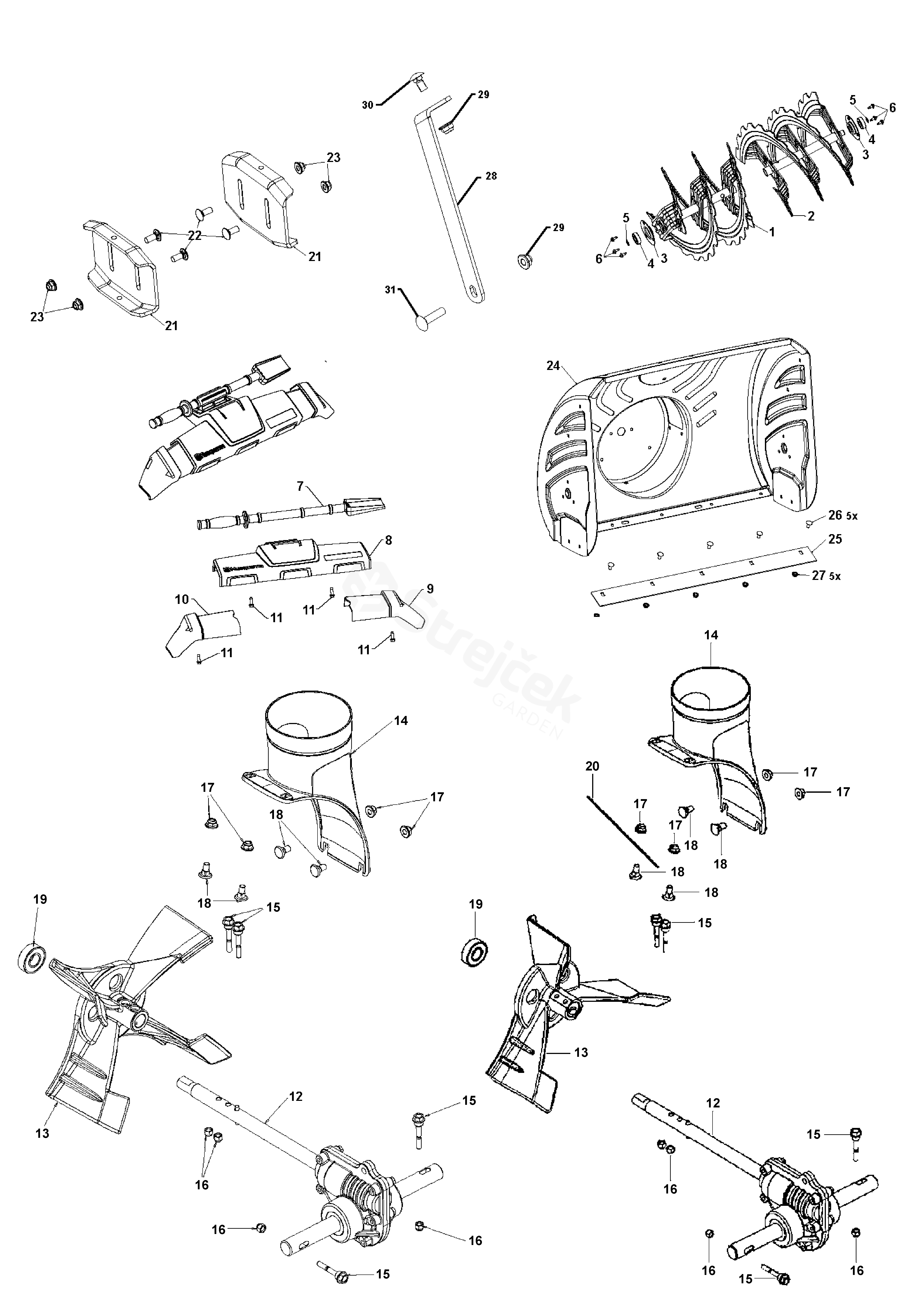

AUGER HOUSING & IMPELLER
ST 430 ST 430
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For ST 430
1 AUGER LH 581970503
2 AUGER RH 581970603
3 BEARING SUPPORT 580855501
4 BEARING 532110485
5 CLIP 812000028
6 TBD
For 97052960100 		8176740412
7 TOOL.CLEAN.OUT 532192199
8 TRIM 586414802
9 TRIM 586330302
10 TRIM 586330402
11 SCREW 817060410
12 GEARBOX 582867701
13 IMPELLER
For 97052960100 		596920101
14 CHUTE 593042802
15 BOLT 588077502
16 NUT 595086601
17 BOLT 585691301
18 BOLT 585691201
19 BALL BEARING 532198791
21 BRACE 532407834
22 BOLT 585691701
23 BOLT 585691301
24 HOUSING ASSY 588610240
25 PLATE 585048502
26 BOLT 596039401
27 LOCK NUT
For 97052960100 		596039201
28 SUPPORT 585109004
29 BOLT 585691301
30 BOLT 585832001
31 BOLT 872110510
