Spare parts > Husqvarna > TRACTORS/RIDE MOWERS > TC 138 TC 138 > ENGINE
Back to

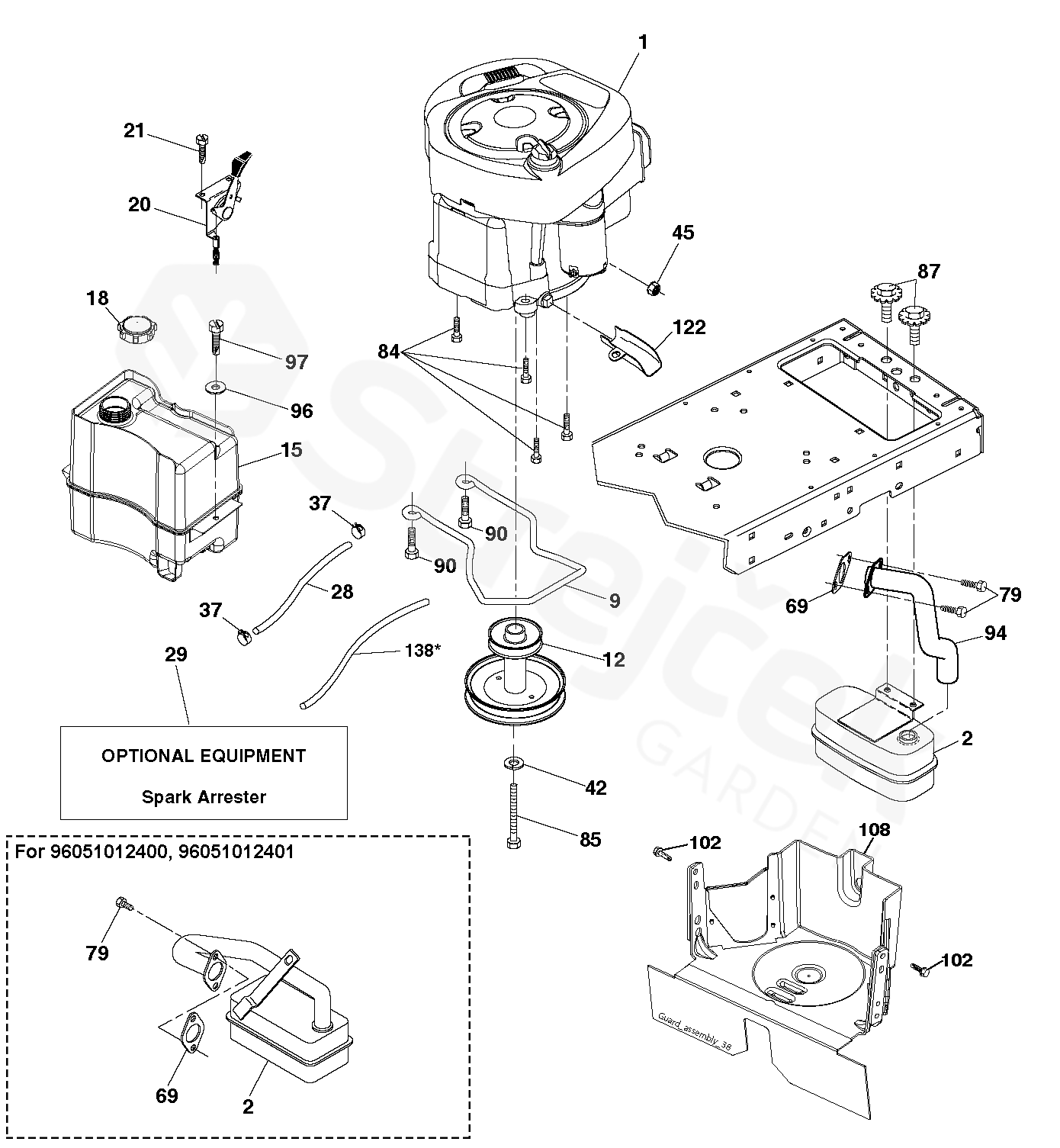

ENGINE
TC 138 TC 138 (960510179 - 7391883946718, 960510124 - 7393089103896, 960510200 - 7392930966741)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For TC 138
1 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
For 96051017900, Engine Briggs Model No. 31R577-0027-B5 (597359601 		000000000
2 MUFFLER
For 96051012403 		532446760
9 KEEPER 501832602
12 PULLEY 586478501
15 FUEL TANK ASSY
For 96051017900, EPA TANK 		597952201
18 HUB CAP 532430220
20 CONTROL
For 96051012400, 96051012401, 96051012402 		532183897
21 SCREW 596321701
28 HADICE 532137040
29 SPARK ARRESTER KIT 532137180
37 HADICOVÁ SVĚRKA 532123487
42 WASHER 596238901
45 MATICE
For all EXCEPT 96051017900 		873510400
69 GASKET 532165291
79 SCREW 596134201
84 SCREW 817060620
85 BOLT 501606501
87 BOLT
For all EXCEPT 96051012400, 96051012401 		532171877
90 SCREW 817000616
94 TUBE
For all EXCEPT 96051012400, 96051012401 		581880901
96 WASHER 596135301
97 SCREW 817670412
102 SCREW 593337601
108 COVER 587179510
122 EXTENSION PIPE 532421922
138* HOSE
For 96051017900, only equipped with the EPA tank 		587044531
