Spare parts
Everything for your machines
Spare parts
>
Husqvarna
>
ZERO TURN: COMMERCIAL
>
M-ZT 52 M-ZT52
>

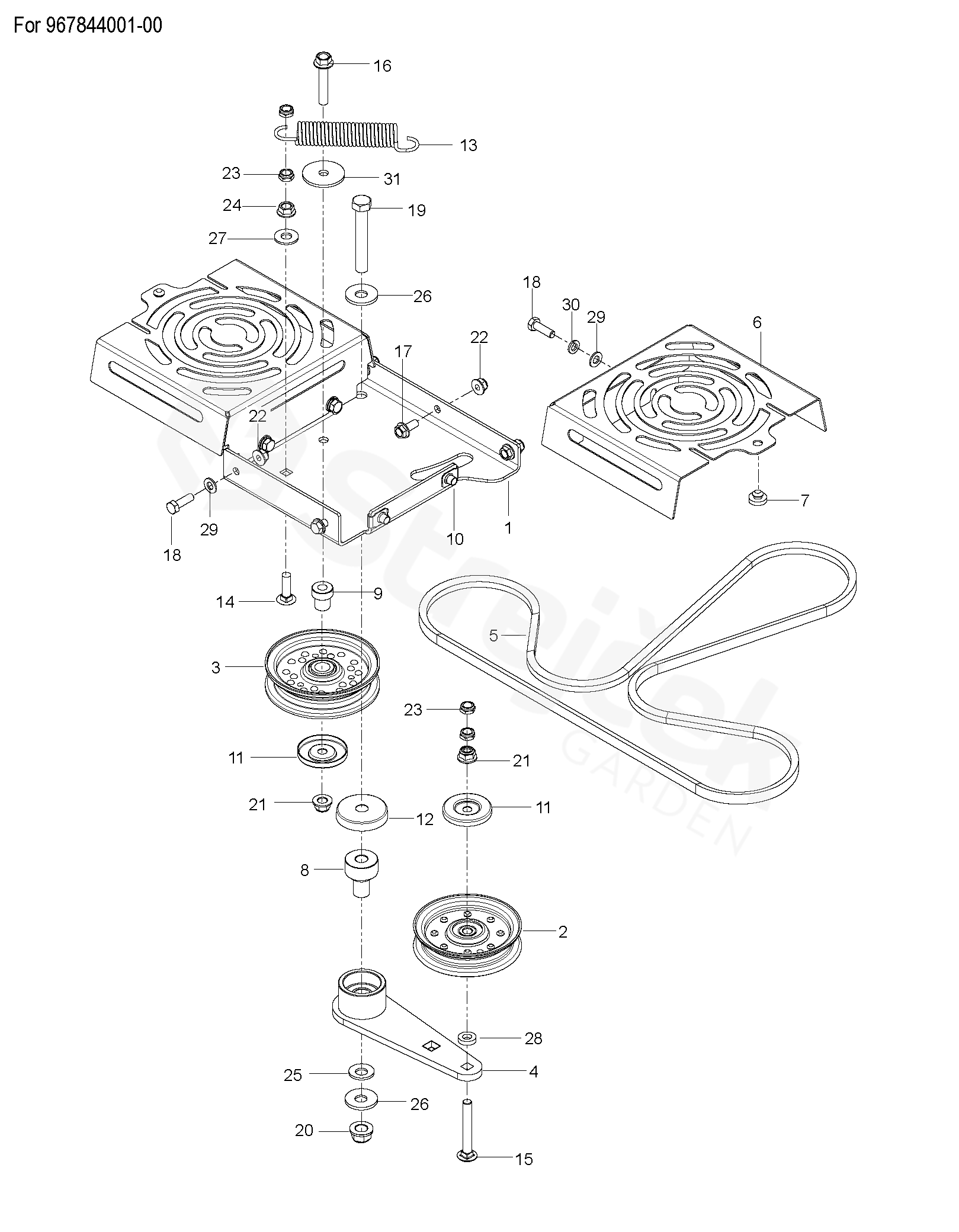

HYDRAULIC FRAME
Back to
M-ZT 52
M-ZT52
HYDRAULIC FRAME
M-ZT 52
M-ZT52
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
M-ZT52
1
DESKA
586670402
2
PULLEY
539976688
3
PULLEY
532175820
4
ARM
510041603
5
BELT
574870901
6
KRYT
584994202
7
ABSORBER
539102587
8
PIVOT
510206301
9
PIVOT
525435601
10
CLIP
539104763
11
KRYT
510254501
12
SHIELD, DUST
539114662
13
SPRING
510254401
14
BOLT
872140610
15
RHSNB 3/8-16 X 2.75 GR5 ZD
539130235
16
ŠROUB
874490632
17
BOLT
874490512
18
SCREW
539990209
19
BOLT
874780852
20
MATICE
521991101
21
MATICE
521996501
22
BOLT RETAINER 3/8
539112899
23
NUT
539200282
24
NUT
539990613
25
1/2` CONTACT BELLSPR
539115528
26
WASHER
819182212
27
PODLOŽKA
819141614
28
WASH 3/8 X 3/4 X .187 TK SPEC
539109562
29
PODLOŽKA
819111116
30
PODLOŽKA
539990187
31
WASHER, 3/8, SPEC
539111897
