Spare parts > Husqvarna > ZERO TURN: COMMERCIAL > MZ 48 MZ 48 > MOWER DECK / CUTTING DECK
Back to

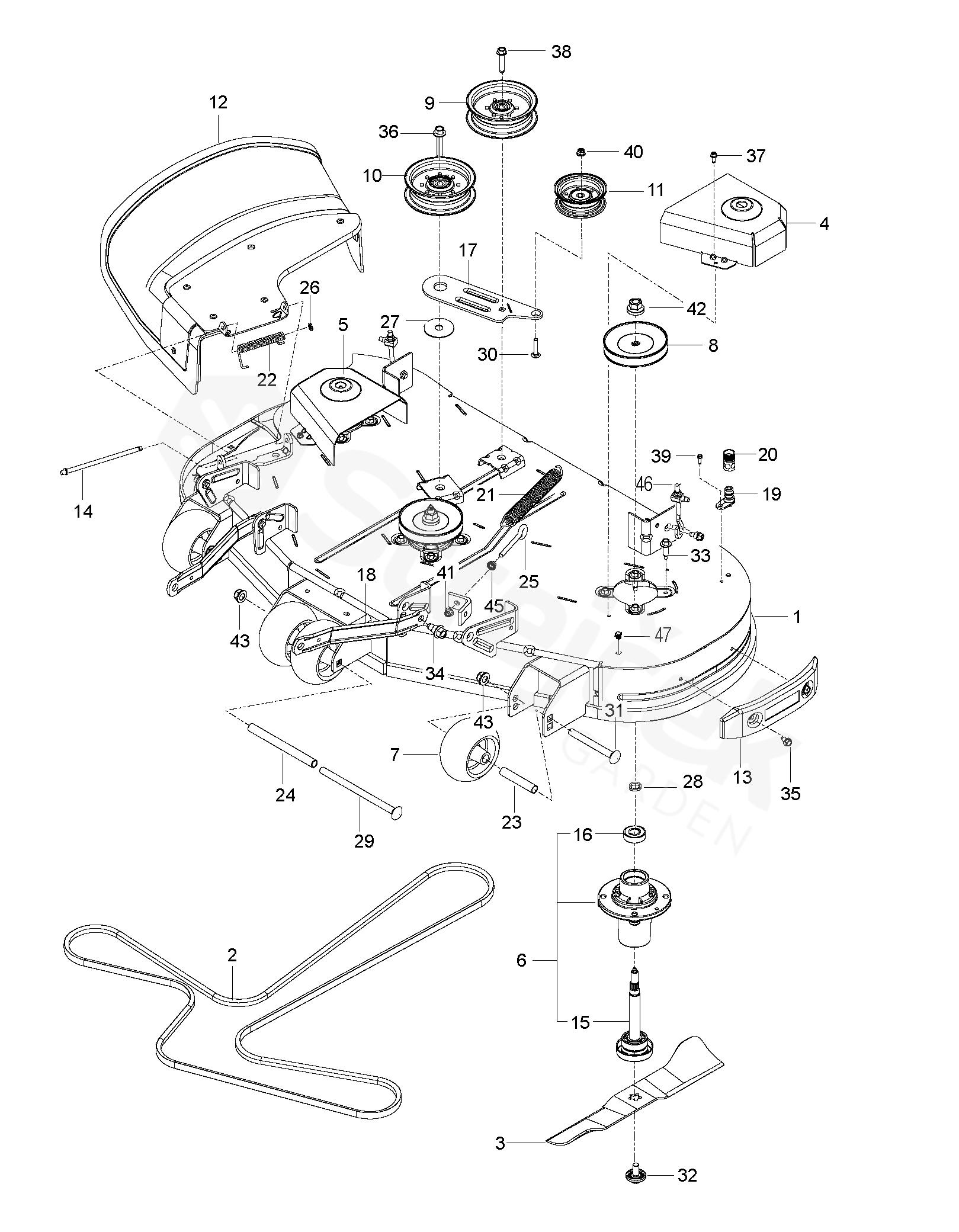

MOWER DECK / CUTTING DECK
MZ 48 MZ 48
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For MZ 48
1 SERVICE KIT
For 96766590101, 97045570100, 97045560100, 96766590100 		598852701
2 ŘEMEN 579678501
3 BLADE
For 96766590100, 967262801-00, 967262701-00 		588811002
4 COVER 588812802
5 COVER 588812402
6 HOUSING ASSY
ALUMINUM 		539112170
7 ROLLER 574169601
8 PULLEY
For 96766590101, 97045570100, 97045560100, 96766590100 		590805103
9 IDLER PULLEY 532196106
10 IDLER PULLEY 532196104
11 PULLEY 532193197
12 DEFLECTOR ASSY 593649701
13 BUMPER 582541101
14 ROD 595297001
15 SHAFT ASM MANDREL 532187291
16 SPACER
For 96766590101, 97045570100, 97045560100, 96766590100 		598645501
17 ARM
For 96766590101, 97045570100, 97045560100, 96766590100 		588812304
18 ARM
For 96766590101, 97045570100, 97045560100, 96766590100 		587140502
19 PORT.WASHOUT 532415598
20 COUPLING 532416405
21 SPRING 582504001
22 PRUŽINA 587354701
23 TUBE
For 96766590101, 97045570100, 97045560100, 96766590100 		574196402
24 TUBE
For 96766590101, 97045570100, 97045560100, 96766590100 		574196502
25 BOLT 596240801
26 MATICE
For 96766590100, 967262801-00, 967262701-00 		532110452
27 PODLOŽKA 532178515
28 PODLOŽKA 532187690
29 BOLT
For 96766590101, 97045570100, 97045560100, 96766590100 		594944501
30 BOLT 872110614
31 SCREW 510022302
32 SCREW
For 96766590101, 97045570100, 97045560100, 96766590100 		539119007
33 BOLT 584953901
34 BOLT 532196539
35 BOLT 817000510
36 SCREW 588438301
37 SCREW 532137729
38 BOLT 596564003
39 SCREW
For 96766590101, 97045570100, 97045560100, 96766590100 		596637301
40 MATICE 873900600
41 NUT
NUT HEXAGON FLANGE 5/16-18 		594944401
42 NUT
For 96766590101, 97045570100, 97045560100, 96766590100 		598490501
43 NUT 521991102
45 LOCK NUT 596039201
46 LINK ASSY
For 96766590101, 97045570100, 97045560100, 96766590100 		588783401
47 PLUG
For 96766590101, 97045570100, 97045560100, 96766590100 		596952201
