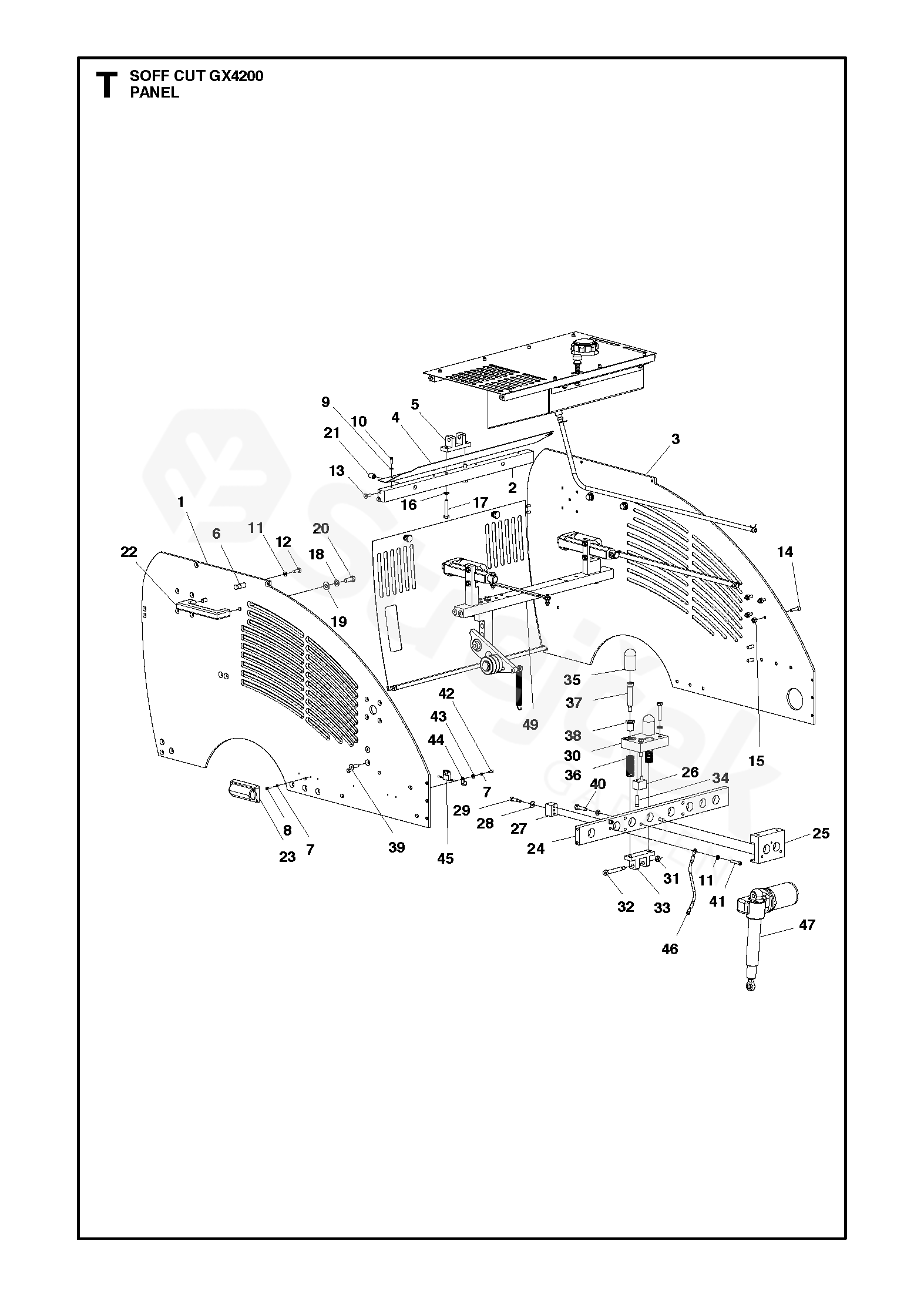

Spare parts - Partlist - SOFF CUT 4200 SOFF CUT 4200 - PANEL ASSEMBLY

Everything for your machines

SOFF CUT 4200 SOFF CUT 4200

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For SOFF CUT 4200

1	PLATE	505792601
2	CROSSBAR	505758801
3	PLATE	505792501
4	COVER	505757801
5	ACTUATOR	505757001
6	ROD	505718601
7	WASHER	505632701
8	BOLT	505628201
9	LK WASH #10 SPLIT SS	505633101
10	BOLT	505729601
11	LK WASH 1/4 SPLIT SS	505632801
12	BOLT	505627501
13	SCREW	505628601
14	SOCKET	505773401
15	MATICE	539976978
16	LK WASH 5/16 SPLIT SS	505633001
17	BOLT	505728501
18	LK WASH 3/8 SPLIT SS	505731001
19	WASHER	510301001
20	BOLT	505833101
21	INSERT	505748301
22	HANDLE	505716901
23	LAMP	505486902
24	FRONT WHEEL SUPPORT	505756001
25	FRNT WHL SPRG BLK LOWER	505756201
26	FRNT WHL SPRG BLK STOPPER	505756301
27	BLOCK	505683501
28	PODLOŽKA	539990188
29	BOLT	505726401
30	FRNT WHL SPRG BLK UPPER	505756101
31	MATICE	539990717
32	BOLT	505627201
33	ACT. BRACKET LOWER FRONT SHOCK	505757101
34	BOLT	505627901
35	CAP	505775601
36	SPRING	505690701
37	BOLT	523059611
38	BUSHING	505775501
39	SCREW	505730101
40	BOLT	505728401
41	BOLT	505628001
42	BOLT	505628101
43	WASHER	505822601
44	CBL CLAMP 3/8"	505748701
45	HARNESS	505797702
46	KIT	575446606
47	ACTUATOR	505848401
