Spare parts > Husqvarna Construction Products > SURFACE PREPARATION EQUIPMENT > HTC 950RX HTC 950RX, 967837705 967837706, 2021-01 > CHASSIS
Back to

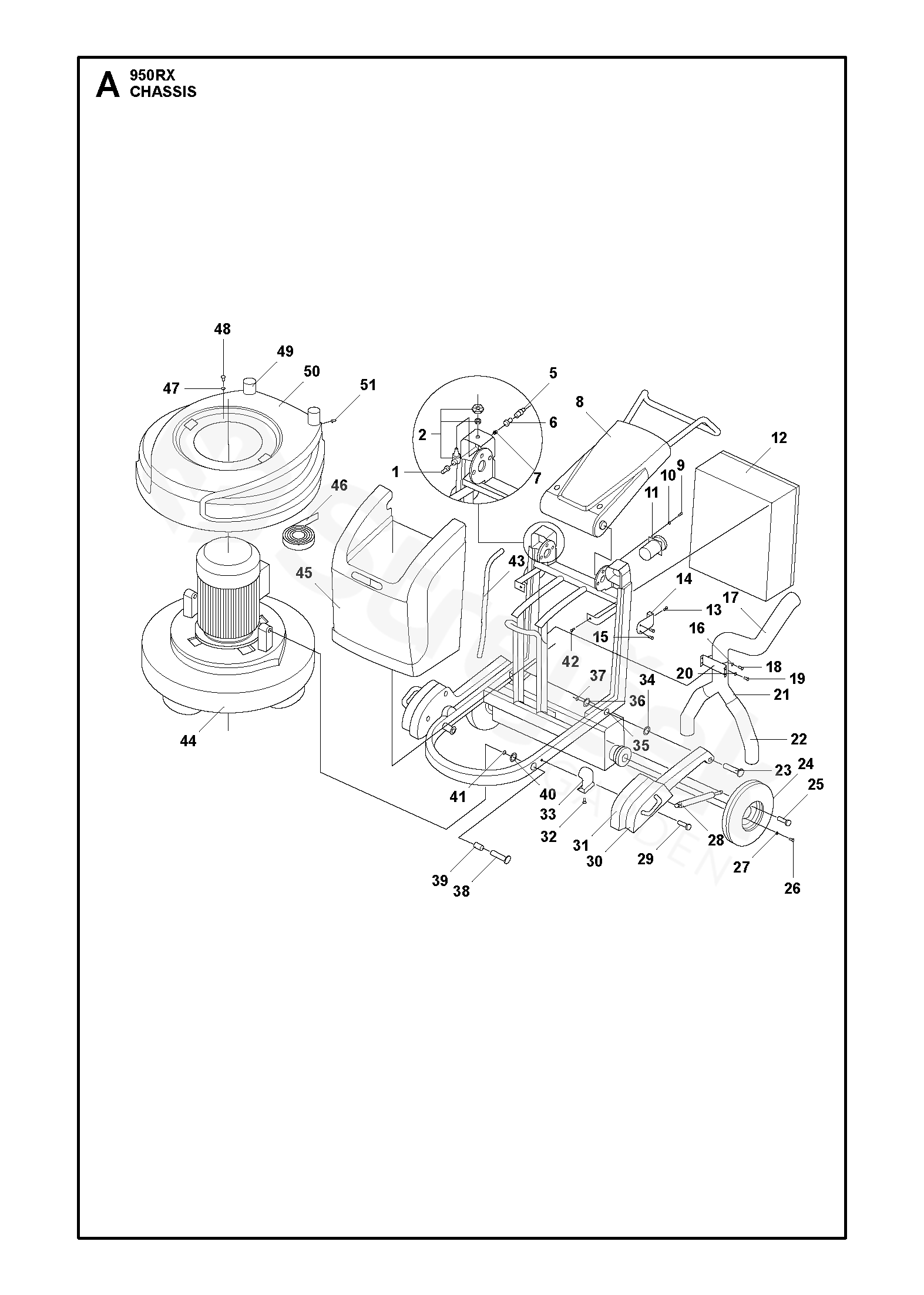

CHASSIS
HTC 950RX HTC 950RX, 967837705 967837706, 2021-01
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For HTC 950RX, 967837705 967837706, 2021-01
1 HOSE CONNECTOR
HOSE CONNECTION 3/8 		593417001
2 VALVE
SLIDING VALVE 		593439301
5 COUPLING
QUICK COUPLING FEMALE 		595811201
6 COUPLING
QUICK COUPLING MALE 		595811301
7 BARREL
BARREL NIPPLE 3/8 		595811401
8 TBD Download from your local supportsite
HANDLE COMPLETE 		0
9 SCREW
SCREW M5x12 		593502001
10 WASHER
WASHER M5 		593504301
11 TUBE
SUCTION TUBE 		593413301
12 TBD
POWER UNIT 15Kw 		595636301
13 SCREW
SCREW M8x35 		593504001
14 WEAR PROTECTION
WEAR PROTECTION UPPER 		593422101
15 SCREW
SCREW M6X25 		593497801
16 WASHER
WASHER M6 		593496001
17 HOSE
HOSE 75mm. 0.7m 		593478701
18 LOCK NUT
NUT NYLOCK M6 		593500001
19 SCREW
SCREW M6X12 		593497301
20 WASHER
WASHER M6 		593496001
21 PIPE
FORK PIPE 		595809901
22 HOSE
HOSE 63mm. 0.5m 		593479101
23 SHAFT
WEIGHT SHAFT 		593413501
24 WHEEL
GREY Ø400MM 		593479601
25 PISTON
LEVER INDEXING PLUNGER 		593413901
26 SCREW
SCREW M8x20 		593502801
27 WASHER
WASHER M8 		593500401
28 GAS SPRING
GAS SPRING COMPLETE 		593414201
29 PISTON
LEVER INDEXING PLUNGER 		593431001
30 SCREW
SCREW M6x20 		593497101
31 SCREW
SCREW M16x55 		595672101
32 SCREW
SCREW M8x16 		593500601
33 WEAR PROTECTION
WEAR PROTECTION LOWER 		593413801
34 WASHER
WASHER M24 		593504401
35 BUSHING
BUSHING BM25 		593417201
36 WASHER
WASHER M24 		593504401
37 CIRCLIP
CIRCLIP SGA 25 		593496801
38 SHAFT
SHAFT CHASSI/GRINDING HEAD 		593421301
39 BUSHING
BUSHING BF25 		593417201
40 WASHER
WASHER M24 		593504401
41 PIN
LOCKING PIN 		593506201
42 SCREW
SCREW M8x16 		593500601
43 TBD Download from your local supportsite
HOSE COARSE ARMOURED 		0
44 HEAD
GRINDING HEAD WITHOUT MOTOR 		593426701
45 COVER
MACHINE COVER 		593414302
46 CROSS MEMBER
VELCRO MALE 38mm 		593615501
47 WASHER
WASHER M8 		593500401
48 SCREW
SCREW M8x16 		593500601
49 HOSE
SUCTION TUBE 		595809801
50 COVER
FLOATING COVER COMPLETE 		593524902
51 NUT
POP RIVET 4.8X19 		595671101
