Spare parts
Everything for your machines
Spare parts
>
Husqvarna Construction Products
>
DRIVE UNITS
>
CF 67 CF 67
>
FREQUENCY CONVERTER
Back to
CF 67
CF 67
FREQUENCY CONVERTER
CF 67
CF 67

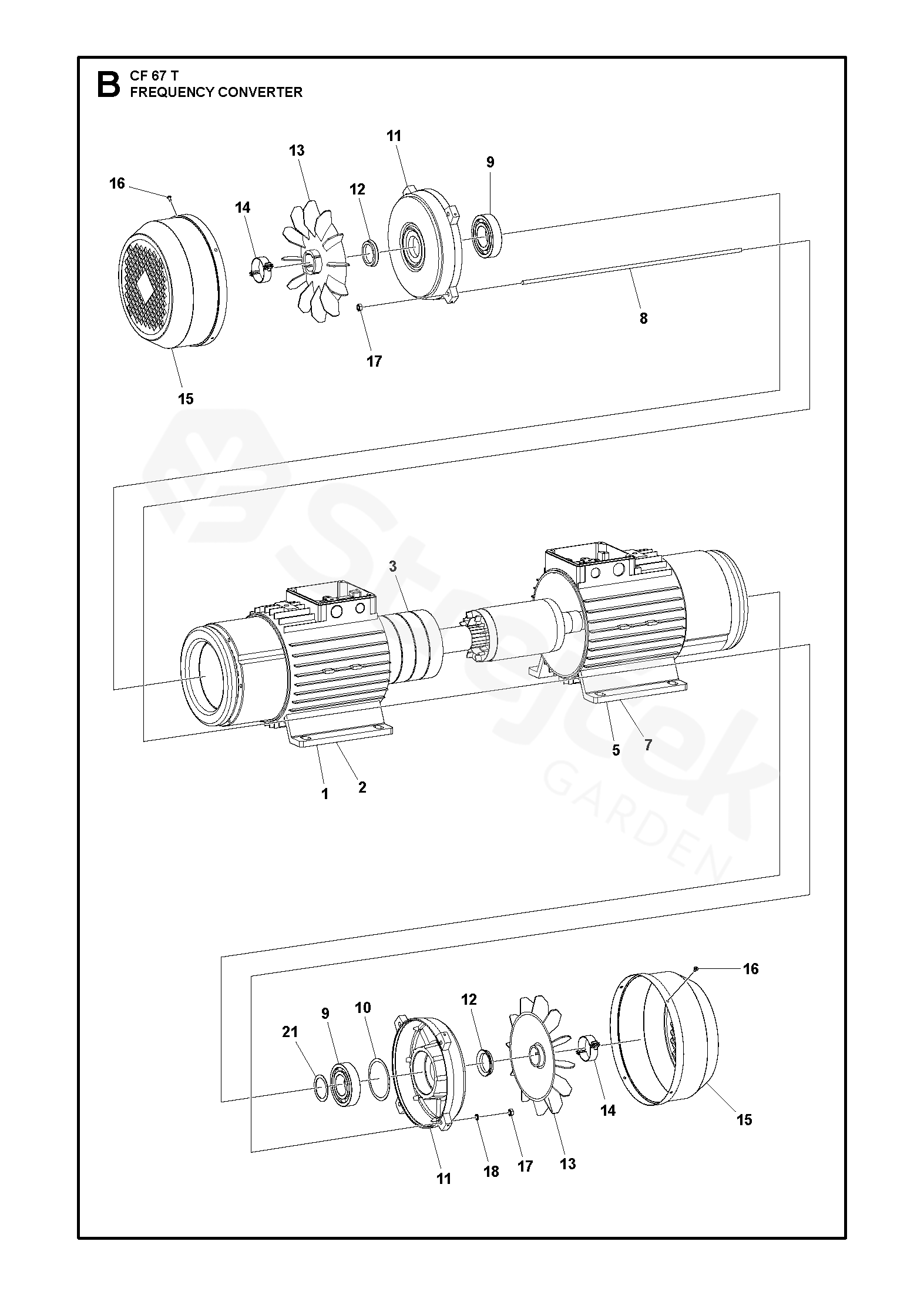

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CF 67
1
HOUSING
CF67T 400V, CF67T CI4P
596066202
2
HOUSING
CF67T 380V
595476302
3
ROTOR
595194601
5
MOTOR HOUSING
CF67T 400V, CF67T CI4P
594625202
7
HOUSING
CF67T 380V
595476402
8
SCREW
Treated rod
595473301
9
BEARING
594618101
10
WASHER
595473401
11
FLANGE
599895201
12
GASKET
595473501
13
FAN
594618201
14
RING
594618301
15
FAN COVER
594625302
16
SCREW
ST3.5x9.5, ISO7049, A2
599142501
17
NUT
M6, ISO4032, ZnB
595180801
18
SPRING WASHER
M5, DIN7980, Grower
599142401
21
WASHER
529336501
