Spare parts > Husqvarna Construction Products > POKERS > SMART E SMART E > VIBRATOR SMART -E 40
Back to

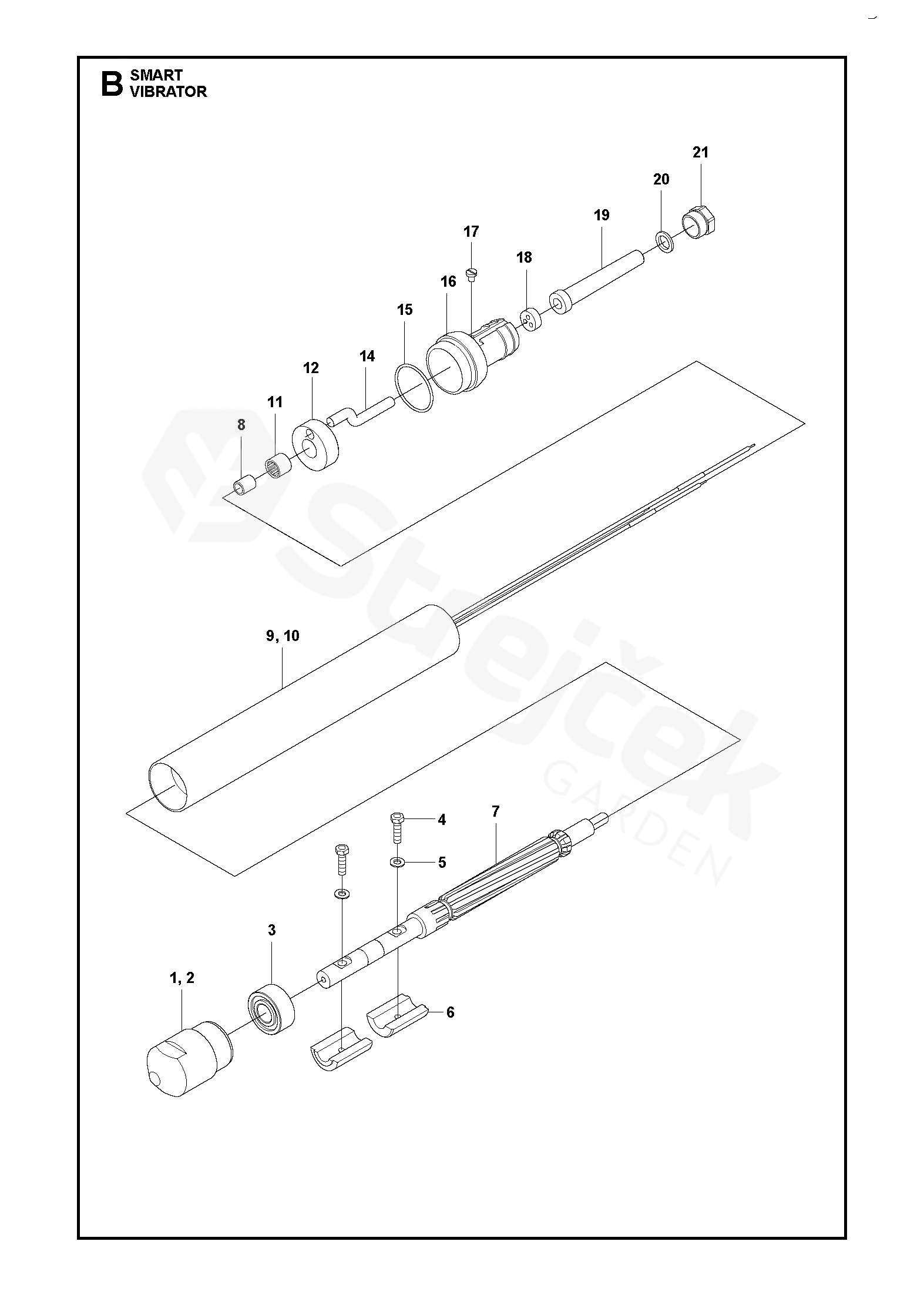

VIBRATOR SMART -E 40
SMART E SMART E
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For SMART E
1 CAP 594290101
2 CAP
Rubber end cap, optional 		595156701
3 BEARING
FAG 4201 B TVH-C3 		594290301
4 SCREW
M5x18 ISO 4017 8.8 A2K 		594286501
5 WASHER
ZM5 NFE25-511 FZB 		594399301
6 EXCENTER 594290201
7 ROTOR 594262301
8 BUSHING 594272301
9 TUBE
Stator, complete 230 V 		594621501
10 TUBE
Stator, complete 115 V 		594860201
11 BEARING
HK 1012 B 		594272201
12 BEARING 594621601
14 HOSE 595149001
15 O-RING
33.05x1.78 NBR 70 shore 		594268001
16 NIPPLE 595156001
17 SCREW
M4x5 BRASS DIN84A 		594272701
18 GASKET 594289001
19 PROTECTION 594290401
20 RING 594287501
21 SCREW 594287301
