Spare parts
Everything for your machines
Spare parts
>
Husqvarna Construction Products
>
TROWELS
>
CRT60-74LX CRT60-74LX
>

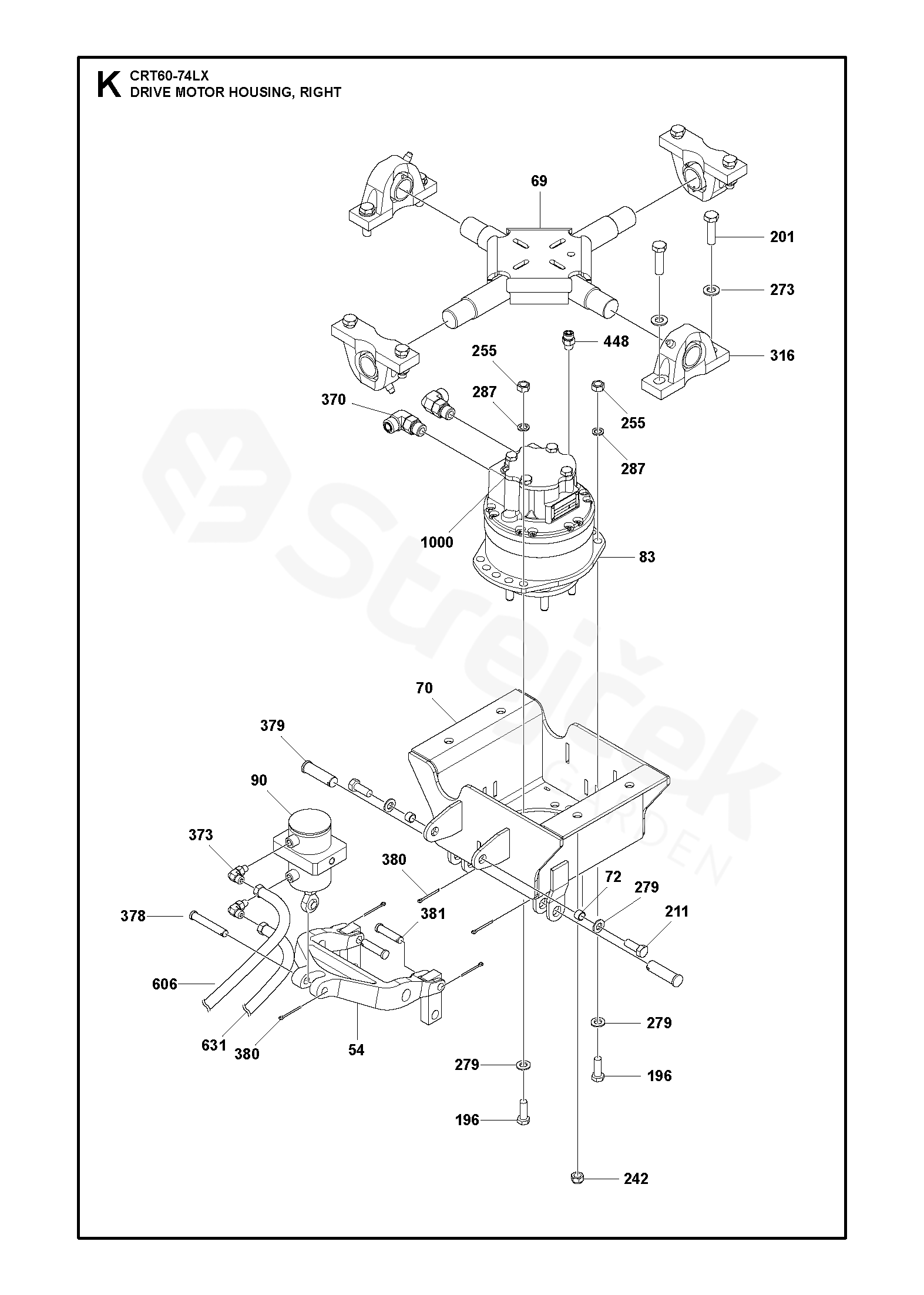

DRIVE MOTOR HOUSING, RIGHT
Back to
CRT60-74LX
CRT60-74LX
DRIVE MOTOR HOUSING, RIGHT
CRT60-74LX
CRT60-74LX
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
CRT60-74LX
54
YOKE
599050301
69
UNIT
599080501
70
HOUSING
599068101
72
SPACER
599104001
83
MOTOR
599078501
90
CYLINDER
599068901
196
SCREW
M12 x 35, 120Nm/89ft.lbs, ISO 4017
599161101
201
SCREW
M14 x 50, 99Nm/73ft.lbs, ISO 4017
597979101
211
BOLT
1/2-13 x 1.25in, 36Nm/27ft.lbs
596435301
242
NUT
M14, ISO 7035
598556501
255
HEXAGON LOCKING NUT
M12
732252271
273
WASHER
M14, ISO 7090
599165701
279
WASHER
13
599166301
287
PODLOŽKA
13
734117771
316
BEARING
598994501
370
FITTING
No.10 ORB X No.10 ORFS, 18Nm/13ft.lbs
598997401
373
FITTING
SAE No.4 x 90
598990701
378
PIN
599175301
379
PIN
599175401
380
PIN
1/8 x 1-1/2"
599164901
381
PIN
1/2 x 2"
599165301
448
FITTING
55Nm/41ft.lbs
598987401
606
HOSE
33.00"
599500601
631
HOSE
33.00"
599501402
1000
SEAL KIT
Seal KIT Drive motor CRT60
599517301
