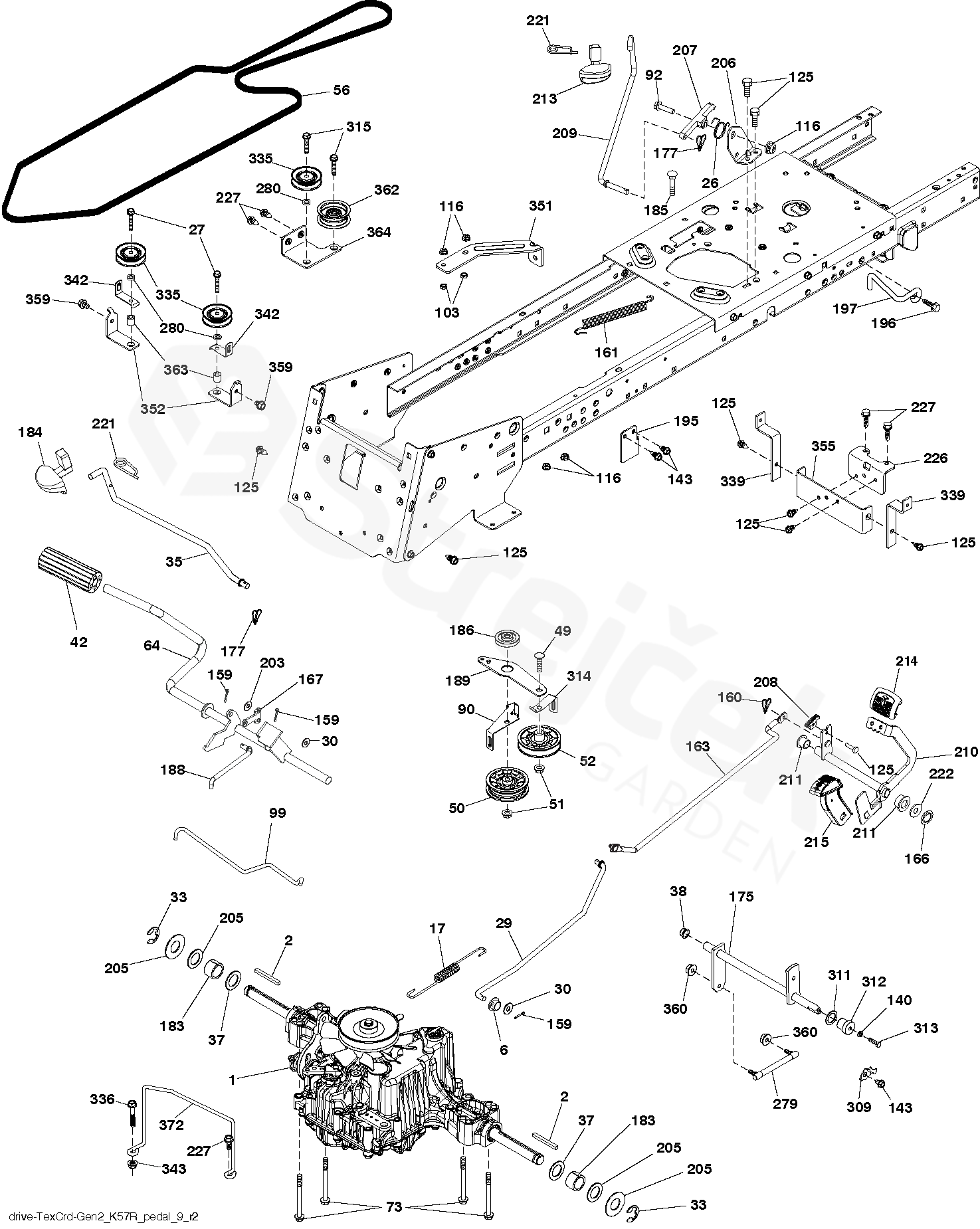

Spare parts - Partlist - TC 242TX TC 242TX - DRIVE

Everything for your machines

TC 242TX TC 242TX

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TC 242TX

1	W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701 TRANSAXLE TUFFTORQ K57AH (585743601)	000000000
2	KEY	532123583
6	BUSHING	532124028
17	SPRING	532436227
26	SPRING	532199679
27	SCREW	596241001
29	ROD	532442795
30	WASHER	596140201
33	RETAINER RING	812000001
35	ROD	583864502
37	PODLOŽKA	532188967
38	SLEEVE	532169613
42	PEDAL RUBBER	532008883
49	BOLT	596136201
50	PULLEY	532194327
51	MATICE	873900600
52	PULLEY	532194326
56	BELT	591065301
64	HRÍDEL	532197865
73	BOLT	595316601
90	KEEPER	532443605
92	SCREW	595305701
99	ROD	532443947
103	NUT	596436301
116	LOCK NUT	596135701
125	SCREW	817000512
140	WASHER	596029801
143	SCREW	596030701
159	PIN	596029501
160	RETAINER	596029401
161	PRUŽINA	532105709
163	ROD	594084102
166	MATICE	532429164
167	LATCH	532405257
175	SHAFT	532429359
177	PIN	587225301
183	ROZPĚRKA	532137057
184	HANDLE	587653701
185	BOLT	872110622
186	ROZPĚRKA	532194321
188	ČLÁNEK	582217001
189	BELLCRANK	532433611
195	BRACKET	580456901
196	SCREW	817000616
197	CLUTCH	585658602
203	WASHER	596204101
205	PODLOŽKA	532121748
206	BRACKET	532448596
207	LATCH	587031402
208	GEAR	596564101
209	ROD	596869801
210	PEDAL ARM	532400980
211	BEARING	532120183
213	CONTROL	532403119
214	PAD	532421263
215	PEDAL	586606502
221	RETAINER SPRING	532403187
222	PODLOŽKA	879212010
226	BRACKET	532401564
227	BOLT	596135901
279	LINK	593898401
280	WASHER	596039901
309	RETAINER	532165581
311	WASHER	532169845
312	HUB	532165614
313	BOLT	596040701
314	RETAINER	532444713
315	BOLT	817580520
335	PULLEY	532199534
336	BOLT	587259602
339	PÁSEK	532436867
342	BELT GUIDE	532182682
343	NUT	594944401
351	BRACKET	532436998
352	BRACKET	532435645
355	PÁSEK	532435669
359	BOLT	596564002
360	MATICE	532444714
362	IDLER	532436812
363	SPACER	532442780
364	BRACKET	532443032
372	KEEPER	582654901
