Spare parts > Partner > LAWN MOWERS: CONSUMER WALK-BEHINDS > P56-675 SMW P56-675 SMW, 96111000903, 2008-03 > PRODUCT COMPLETE
Back to

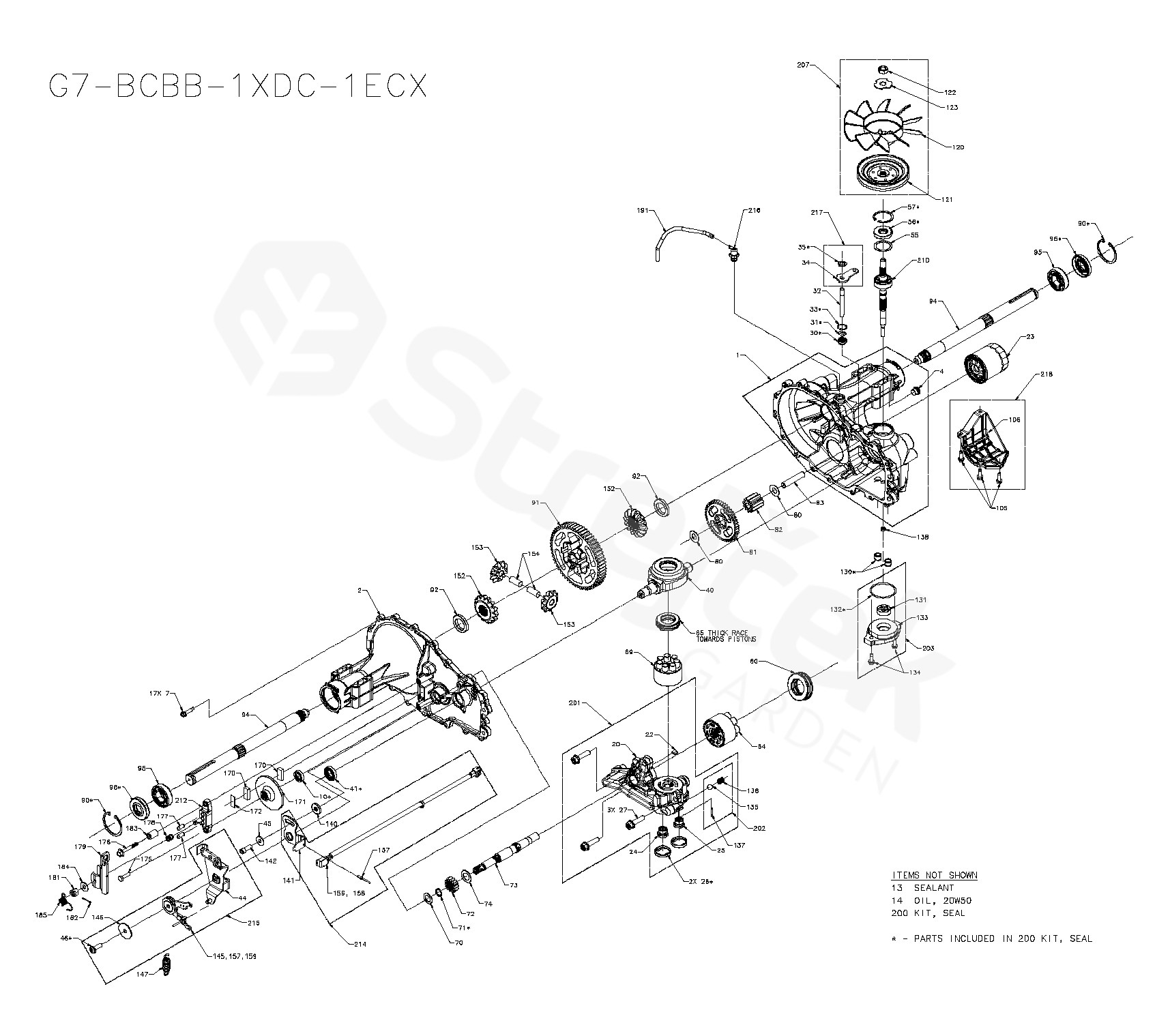

PRODUCT COMPLETE
P56-675 SMW P56-675 SMW, 96111000903, 2008-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For P56-675 SMW, 96111000903, 2008-03
1 HOUSING ASSY
KIT, MAIN HOUSING-(INCLUDES: 9/16-18 METAL PLUG, MAIN HOUSING, .25 x .375 PIN, .624 x .719 x .562 BUSHING, .865 x .985 x .790 BUSHING, 1.0 x 1.376 x .99 FLANGE BEARING) 		532421183
2 HOUSING ASSY
KIT, HOUSING SIDE- (INCLUDED: SIDE HOUSING, .624 x .719 x .562 BUSHING, .865 x .985 x .790 BUSHING. 1.0 x 1.376 x .99 FLANGE BEARING) 		532421184
4 PLUG
9/16-18 METAL PLUG (INCLUDED W/KIT #1) 		532170434
7 SCREW
1/4-20X1.25 SCREW 		582161201
10 SEAL
LIP SEAL (INCLUDED W/KIT #200) 		532417764
13 GASKET
SEALANT (TUBE) 		532178322
14 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
OIL (20W50) 		000000000
20 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
LH CENTER SECTION, CHRG (INCLUDED W/KIT #201) 		000000000
22 PLATE
BYPASS PLATE (INCLUDED W/KIT #201) 		532421185
23 FILTER
OIL FILTER 		532421186
24 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
CHECK PLUG (INCLUDED W/KIT #201) 		000000000
25 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
CHECK PLUG (INCLUDED W/KIT #201) 		000000000
26 PLUG
PLUG SEAL (INCLUDED W/ KITS #200 & #201) 		532421187
27 SCREW
3/8-16X1.5 SCREW (INCLUDED W/KIT #201) 		532421188
30 SEAL
LIP SEAL (INCLUDED W/KIT #200) 		532421189
31 RING
RETAINING RING (INCLUDED W/KIT #200) 		532421190
32 ROD
BYPASS ROD 		532421191
33 RING
RETAINING RING (INCLUDED W/KIT #200) 		532421192
34 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
BYPASS ARM (INCLUDED W/KIT #217) 		000000000
35 RING
RETAINING RING (INCLUDED W/KITS #200 & #217) 		532421193
40 CONNECTION
SWASHPLATE 		532170354
41 SEALING
LIP SEAL (INCLUDED W/KIT #200) 		532170363
44 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
CONTROL ARM (INCLUDED W/KIT #215) 		000000000
45 WASHER 532142884
46 SCREW
SCREW (INCLUDED W/KITS #200 & #215) 		532421194
55 SPACER
WASHER 		532170360
56 SEALING
LIP SEAL (INCLUDED W/KIT #200) 		532170361
57 RING
RETAINING RING (INCLUDED W/KIT #200) 		532169870
60 BEARING
THRUST BEARING 		532421195
64 BLOCK
BLOCK ASM (INCLUDED: BLOCK, SPRING, SEAT WASHER, PISTON) 		532421196
65 BEARING
THRUST 		532173159
69 BLOCK
BLOCK ASM (INCLUDED: BLOCK, SPRING, SEAT WASHER, PISTON) 		532421197
70 WASHER 532170404
71 RING
RETAINING RING (INCLUDED W/KIT #200) 		532170405
72 GEAR
GEAR 14T 		532421198
73 SHAFT
MOTOR SHAFT 		532421199
74 WASHER 532170433
80 WASHER 532170418
81 GEAR
GEAR 45T 		532421200
82 GEAR
GEAR 11T 		532421201
83 PIN RETAINING SCREW
JACKSHAFT 		532170394
90 RING
RETAINING RING (INCLUDED W/KIT #200) 		532169539
91 GEAR
GEAR 60T 		532421202
92 SPACER
SPACER 		532421203
94 AXLE
KIT, KEYED AXLE 		582161401
95 BALL
BALL BEARING 		582164501
96 SEAL
LIP SEAL (INCLUDED W/KIT #200) 		582161301
105 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
1/4-20X.75 SCREW (INCLUDED W/KIT #218) 		000000000
106 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
LH FILTER GUARD (INCLUDED W/KIT #218) 		000000000
120 FAN
RECESS FAN (INCLUDED W/KIT #207) 		532421205
121 TBD CONTACT HONDA 1-800-426-7701
PULLEY (INCLUDED W/KIT #207) 		TBD
122 NUT
LOCK NUT (INCLUDED W/KIT #207) 		532150794
123 WASHER
SLOTTED WASHER (INCLUDED W/KIT #207) 		532199658
130 TUBE
CONNECTING TUBE (INCLUDED W/KIT #200) 		532421207
131 GEAR
GEAR ASM. (INCLUDED W/KIT #203) 		532169531
132 RING
O-RING (INCLUDED W/KITS #200 & #203) 		532421208
133 COVER
CHARGE PUMP COVER (INCLUDED W/KIT #203) 		582161501
134 SCREW
1/4-20X.75 HX FLG SCREW (INCLUDED W/KIT #203) 		532178343
135 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
STEEL BALL (INCLUDED W/KITS #201 & #202) 		000000000
136 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RELIEF SPRING (INCLUDED W/KITS #201 & #202) 		000000000
137 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
PIN SPRING (INCLUDED W/KITS #201 & #202) 		000000000
138 SEAL
SEAL, GEROTOR 		582161601
140 SPACER
SPACER 		532421210
141 ARM
NEUTRAL ASM. RETURN (INCLUDED W/LIT #214) 		582164601
142 SCREW 532421211
145 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RETURN ASM. (INCLUDED W/KIT #215) 		000000000
146 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
.343X1.5X.062 WASHER (INCLUDED W/KIT #215) 		000000000
147 SPRING 532421212
152 GEAR
BEVEL GEAR 14T 		532421213
153 GEAR
BEVEL GEAR 10T 		532421214
154 PIN 532421215
156 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
SWITCH RETAINER (INCLUDED W/KIT #214) 		000000000
157 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
5/32 RIVET (INCLUDED W/KITS #214 & #215) 		000000000
158 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
RCS SWITCH (INCLUDED W/KIT #214) 		000000000
159 W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
ACTUATOR CLIP (INCLUDED W/KIT #215) 		000000000
170 SPACER
BRAKE PUCK 		532142883
171 ROTOR
BRAKE ROTOR 		582161701
172 PLATE
PUCK PLATE 		532142882
175 BOLT
1/4-20X1 BOLT 		532142892
176 FLANGE
1/4-20X2 BOLT 		532170410
177 PEN
PLATED BRAKE PIN 		532170409
178 SPRING
COMPRESSED BRAKE ANTI-DRAG 		532170417
179 ARM
BRAKE 		532178330
181 NUT
CASTLE NUT 		532170415
182 PIN RETAINING SCREW
3/32X3/4 COTTER PIN 		532170416
183 SLEEVE
SPACER 		532170411
184 WASHER 532142884
185 SPRING
BRAKE ARM 		532178335
191 TUBE 532421218
200 SEAL
KIT, SEAL 		532421219
201 HOUSING ASSY
KIT, LH CENTER SECTION 		532421220
202 CHARGER
KIT, CHARGE RELIEF 		532421221
203 SERVICE PARTS SYSTEM
KIT, CHARGE 		582164801
207 PULLEY
KIT, FAN/PULLEY 		532421223
210 SHAFT
KIT, INPUT SHAFT (INCLUDED: INPUT SHAFT, 17X40X12 BALL BEARING, RETAINING WIRE RING) 		532421224
212 YOKE
KIT, YOKE/BRAKE W/ SQUARE HEAD BOLT 		532178329
214 KIT.G700/G730.ROS.SERV(71750) 532421225
215 SERVICE PARTS SYSTEM
KIT, RTN/ROS 		582164901
216 BREATHER
KIT, BREATHER (INCLUDED: 9/16 SAE FITTING, BARBED VENT CAP) 		532421227
217 COLLET
KIT, BYPASS 		532421228
218 FILTER
KIT, FILTER GUARD 		532421229
W/O DESCRIPTION HONDA GCV160-LABHH FOR SERVICE & PARTS 1-800-426-7701
JOURNAL BEARING (INCLUDED W/KIT #201) 		000000000
