Spare parts > Husqvarna Construction Products > DEMOLITION ROBOTS > DXR 305 DXR 305, 2021-12 > ARM THREE
Back to

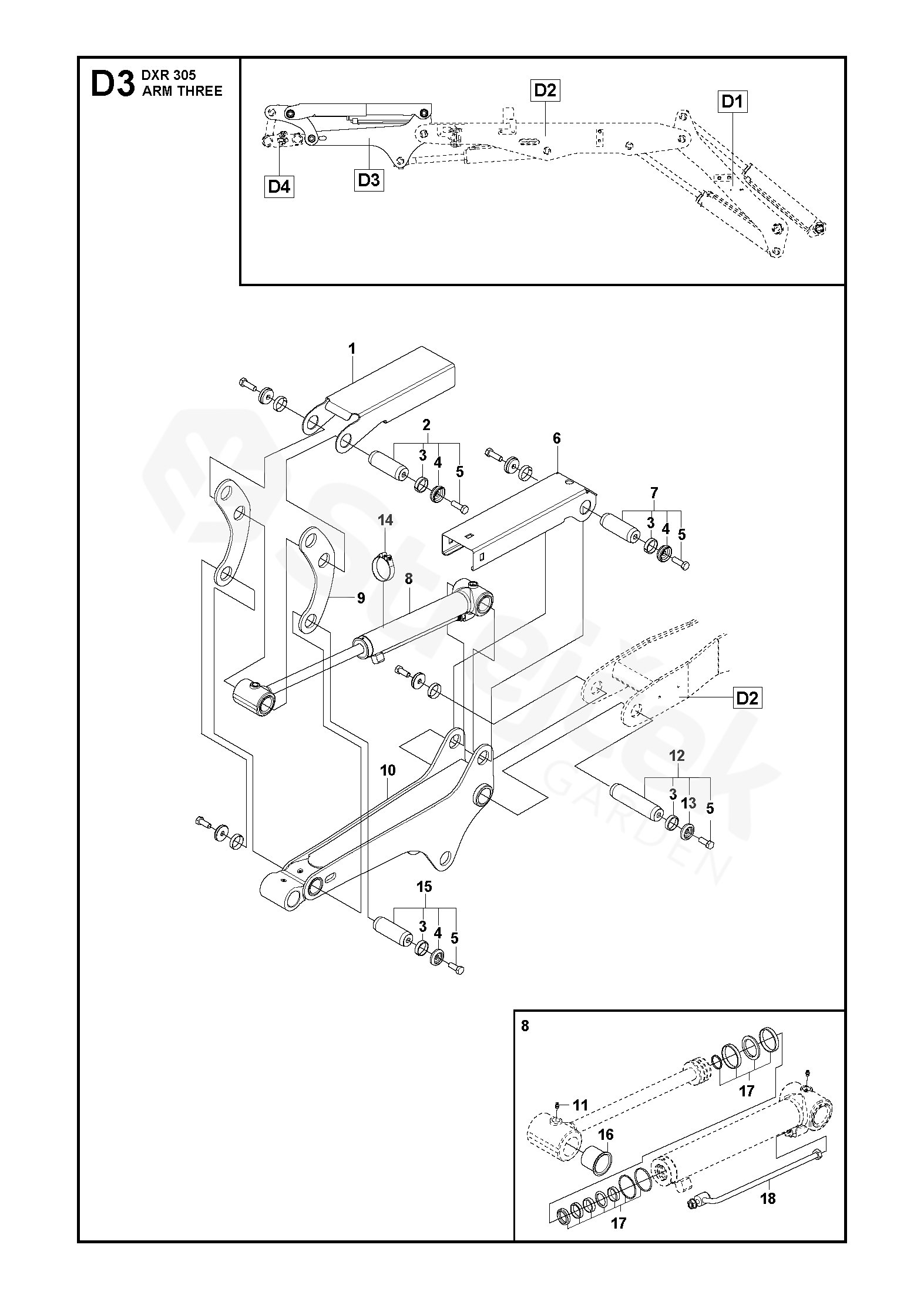

ARM THREE
DXR 305 DXR 305, 2021-12
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For DXR 305, 2021-12
1 PROTECTION 592798301
2 SHAFT ASSY 588905201
3 SLEEVE 522841401
4 WASHER 522842101
5 SCREW EHHM 522842301
6 PROTECTION 592798501
7 SHAFT ASSY 588905101
8 CYLINDER 522722901
9 PLATE 505332001
10 ARM 504897801
11 LUBRICATION NIPPLE 504895301
12 SHAFT ASSY 585593101
13 WASHER 522841901
14 HOSE CLAMP 576998401
15 SHAFT ASSY 504905801
16 BEARING BUSH 504894901
17 SEAL 522857301
18 HYDRAULIC PIPE 522915101
