Spare parts > Husqvarna Construction Products > FLOOR SAWS > FS 4600 G FS 4600 G, 2022-03 > GEARBOX, OUTER
Back to

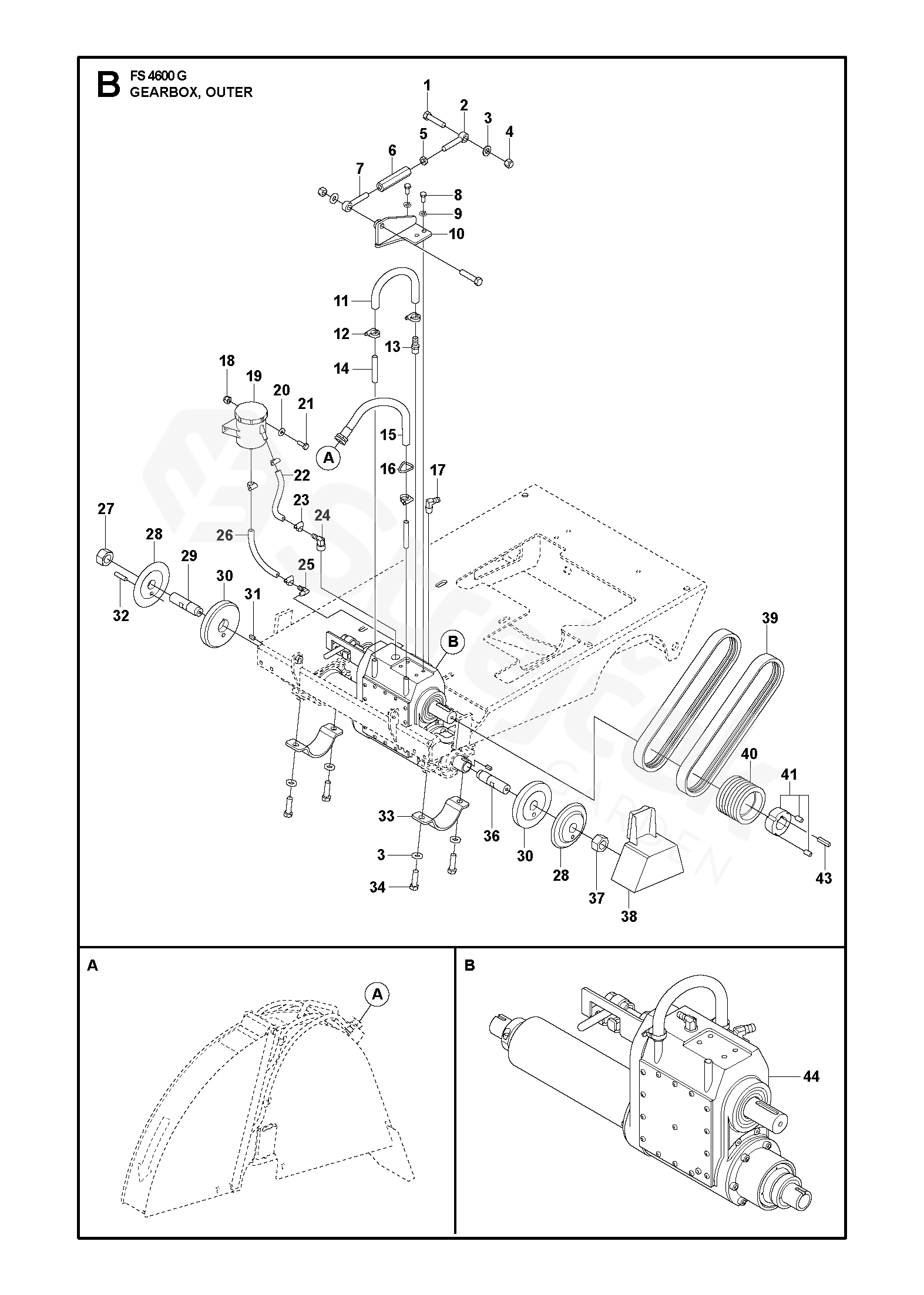

GEARBOX, OUTER
FS 4600 G FS 4600 G, 2022-03
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For FS 4600 G, 2022-03
1 BOLT 541204943
2 BOLT 523254201
3 PODLOŽKA 539990250
4 NUT 539101331
5 NUT 523327701
6 COUPLING 523254101
7 BOLT 523254001
8 BOLT 539990134
9 PODLOŽKA 539990118
10 TRANSMISSION 522526743
11 HOSE 541207610
12 CLAMP, HOSE, MAH-6, 5/16-7/8 539300011
13 FITTING 541204814
14 TRANSMISSION 522526748
15 HOSE 525393301
16 CLAMP, HOSE, MAH-6, 5/16-7/8 539300011
17 FITTING 504548501
18 MATICE 539976978
19 RESERVOIR 523262201
20 WASHER 1/4 SAE 539990055
21 SCREW 539990580
22 FUEL HOSE 531369201
23 HADICOVÁ SVĚRKA 542020049
24 HYDRAULIC KIT 576250801
25 TRANSMISSION 522526741
26 FUEL HOSE 531369201
27 NUT 542020017
28 COLLAR Outer - 4-1/2" OD 542167188
29 SHIELD 521969503
30 COLLAR 521937307
31 KEY 521969801
32 KOLÍČEK "14""-30""" 505531901
33 MOUNT 521911001
34 BOLT 541204644
36 BLADE SHAFT 521966504
37 NUT 541204625
38 GUARD 516021001
39 TBD 536314401
40 PULLEY 521934703
41 BUSHING 523265301
43 TBD 542188143
44 TRANSMISSION
Complete 		522526701
