Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC > CHASSIS UPPER 2007-2009
Back to

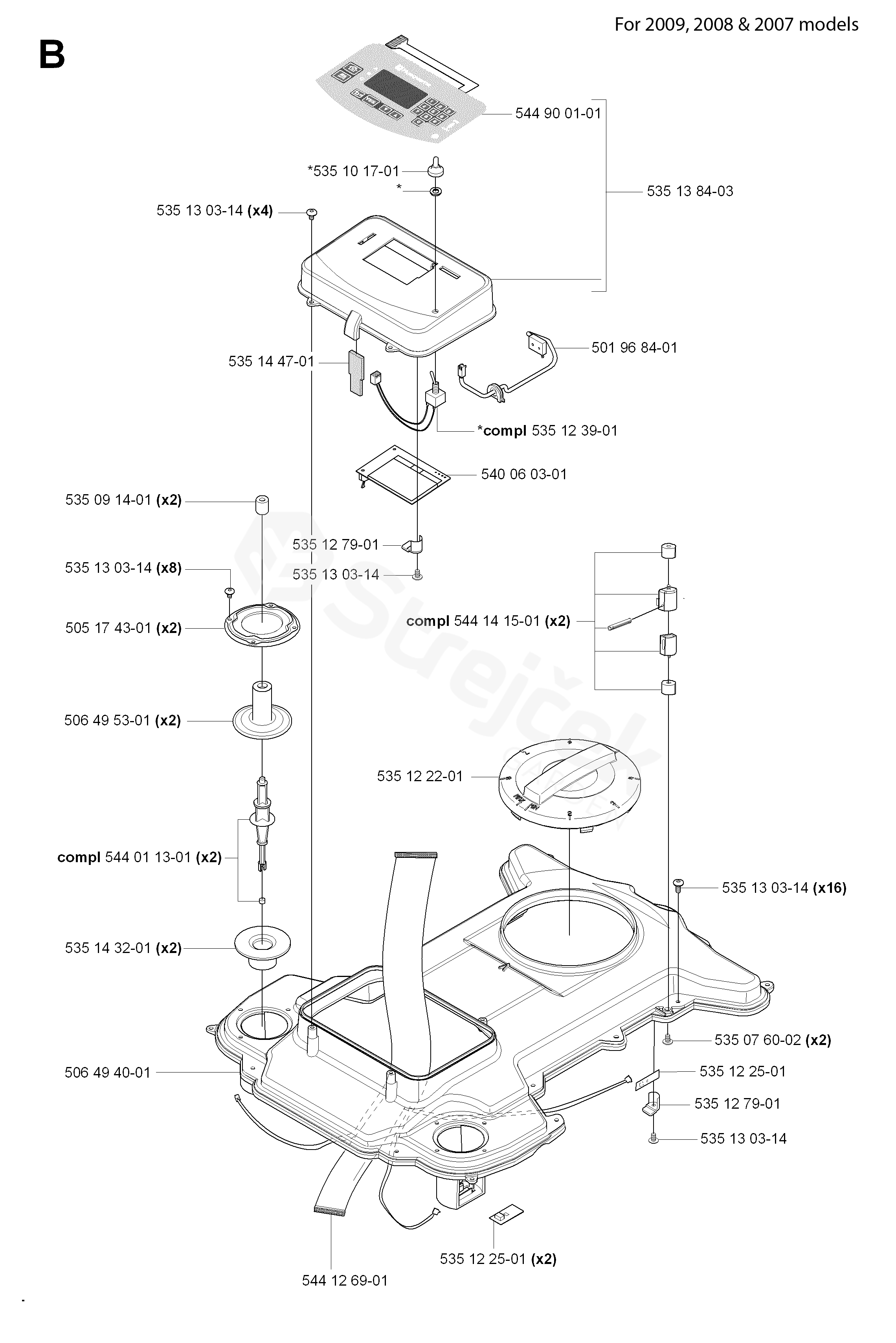

CHASSIS UPPER 2007-2009
AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC (966513401 - 7391883823309, 966513402 - 7391883524534, 966513410 - 7391883524619, 966839501 - 7391883232309, 966839510 - 7391883195833)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Husqvarna AUTOMOWER 220 AC
1 SCREW ITXPANT 535130314
2 FILTER 535144701
3 DAMPER 535091401
4 SCREW ITXPANT 535130314
5 RING FASTENER 505174301
6 RUBBER GAITERS 506495301
7 COLUMN 544011301
8 DEFLECTION LIMITER 535143201
9 CHASSIS 506494001
10 WIRING 544126901
11 SENSOR CARD 535122501
12 STEERING WHEEL 535122201
13 SCREW ITXPANT 535130314
14 BRACKET 535127901
15 HUB CAP 535101701
16 KEYBOARD 544900101
17 KIT 535138403
18 SWITCH 501968401
19 MAIN SWITCH 535123901
20 DISPLAY 540060301
21 SENSOR 544141501
22 SCREW ITXPANT 535130314
23 BRACKET 535127901
24 SENSOR CARD 535122501
25 SCREW 535076002
26 SCREW ITXPANT 535130314
