Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC > CHASSIS UPPER 2010-2011
Back to

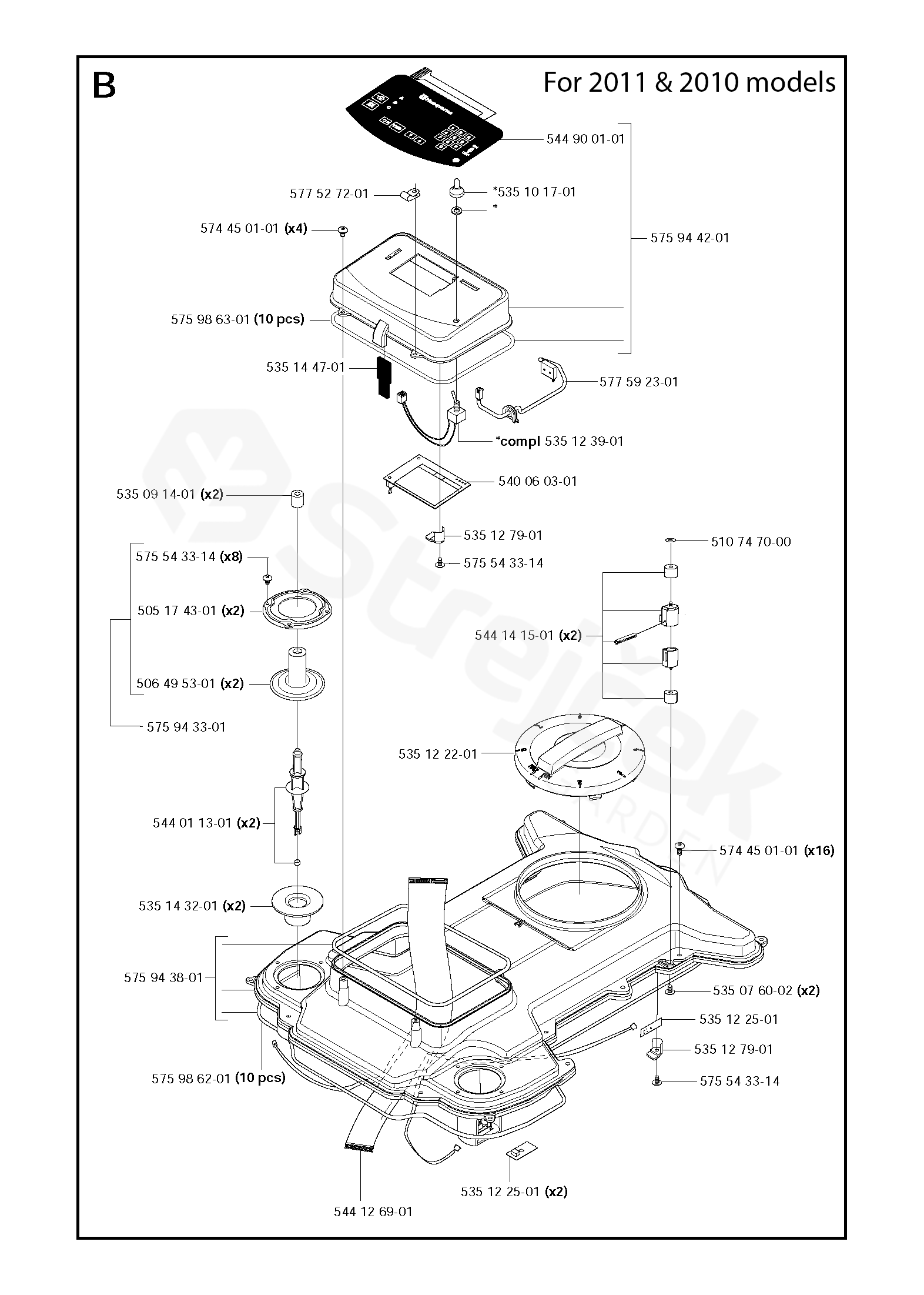

CHASSIS UPPER 2010-2011
AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC (966513401 - 7391883823309, 966513402 - 7391883524534, 966513410 - 7391883524619, 966839501 - 7391883232309, 966839510 - 7391883195833)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Husqvarna AUTOMOWER 220 AC
1 SCREW ITXPANT 574450101
2 DAMPER 535091401
3 SCREW 535076002
4 WIRING 544126901
5 STEERING WHEEL 535122201
6 SENSOR CARD 535122501
7 COLUMN 544011301
8 DEFLECTION LIMITER 535143201
9 LOCKWASHER 510747000
10 SCREW 575543314
11 BRACKET 535127901
12 SENSOR CARD 535122501
13 SWITCH KIT 577592301
14 SCREW ITXPANT 574450101
15 KEYBOARD 544900101
16 DISPLAY 540060301
17 DISPLAY COVER 575944201
18 HUB CAP 535101701
19 MAIN SWITCH 535123901
21 FILTER 535144701
22 BRACKET 535127901
23 SCREW 575543314
24 CABLE CLAMP 577527201
25 SENSOR 544141501
26 SCREW 575543314
27 RING FASTENER 505174301
28 RUBBER GAITERS 506495301
29 SEALING STRIP 575986302
30 KIT 575943301
31 CHASSIS 575943801
32 SEALING STRIP 575986202
