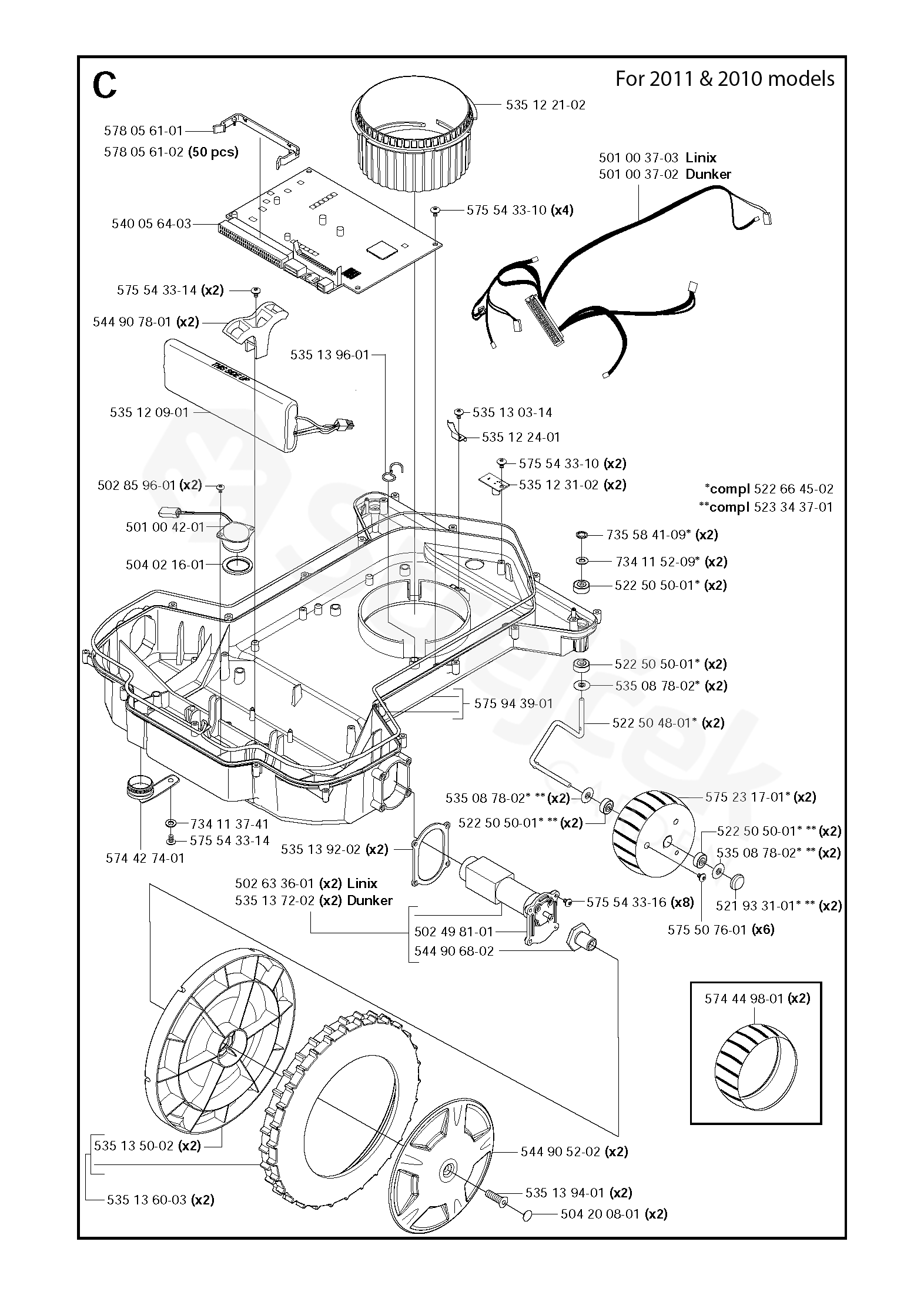

Spare parts - Partlist - AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC - CHASSIS LOWER 2010-2011

Everything for your machines

AUTOMOWER 220 AC Husqvarna AUTOMOWER 220 AC (966513401 - 7391883823309, 966513402 - 7391883524534, 966513410 - 7391883524619, 966839501 - 7391883232309, 966839510 - 7391883195833)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Husqvarna AUTOMOWER 220 AC

1	NUT	535122102
2	SCREW ITXPANT	535130314
3	LOCKING SPRING	535122401
4	PLUG	574427401
5	SENSOR CARD	535123102
6	SCREW	575543310
7	SCREW	575543310
8	PRINTED CIRCUIT ASSY	540056403
9	GASKET	535139202
10	WHEEL	535135002
11	CABLE HOLDER	535139601
12	SCREW	575543316
13	SCREW IHCSFM	535139401
14	HUB CAP	544905202
15	GEAR WHEEL	535136003
16	BATERIE	535120901
17	CLIP	578056101
19	SCREW	575543314
20	BRACKET	544907801
21	COVER WASHER	504200801
22	DRIVE MOTOR	502633601
23	MOTOR	535137202
24	HUB	544906802
25	MAIN WIRING	501003702
26	MAIN WIRING	501003703
27	BALL BEARING	522505001
28	BALL BEARING	522505001
29	BALL BEARING	522505001
30	SPINDLE	522504801
31	WASHER	535087802
32	WASHER	535087802
33	WASHER	535087802
34	BALL BEARING	522505001
35	COVER WASHER	521933101
36	WHEEL ASSY	575231701
37	WASHER	735584109
38	WASHER	734115209
39	KIT	522664502
40	BEARING KIT	523343701
41	GABLE	502498101
42	SCREW	575543314
43	PODLOŽKA	734113741
44	SCREW ITXPANT	575507601
45	CLIP	578056102
46	SCREW	502859601
47	LOUD SPEAKER	501004201
48	SEALING	504021601
49	WHEEL	574449801
50	CHASSIS	575943901
