Spare parts > Husqvarna > ROBOTIC LAWN MOWERS > Automower Aspire™ R4 Automower Aspire™ R4 > CHASSIS UPPER
Back to

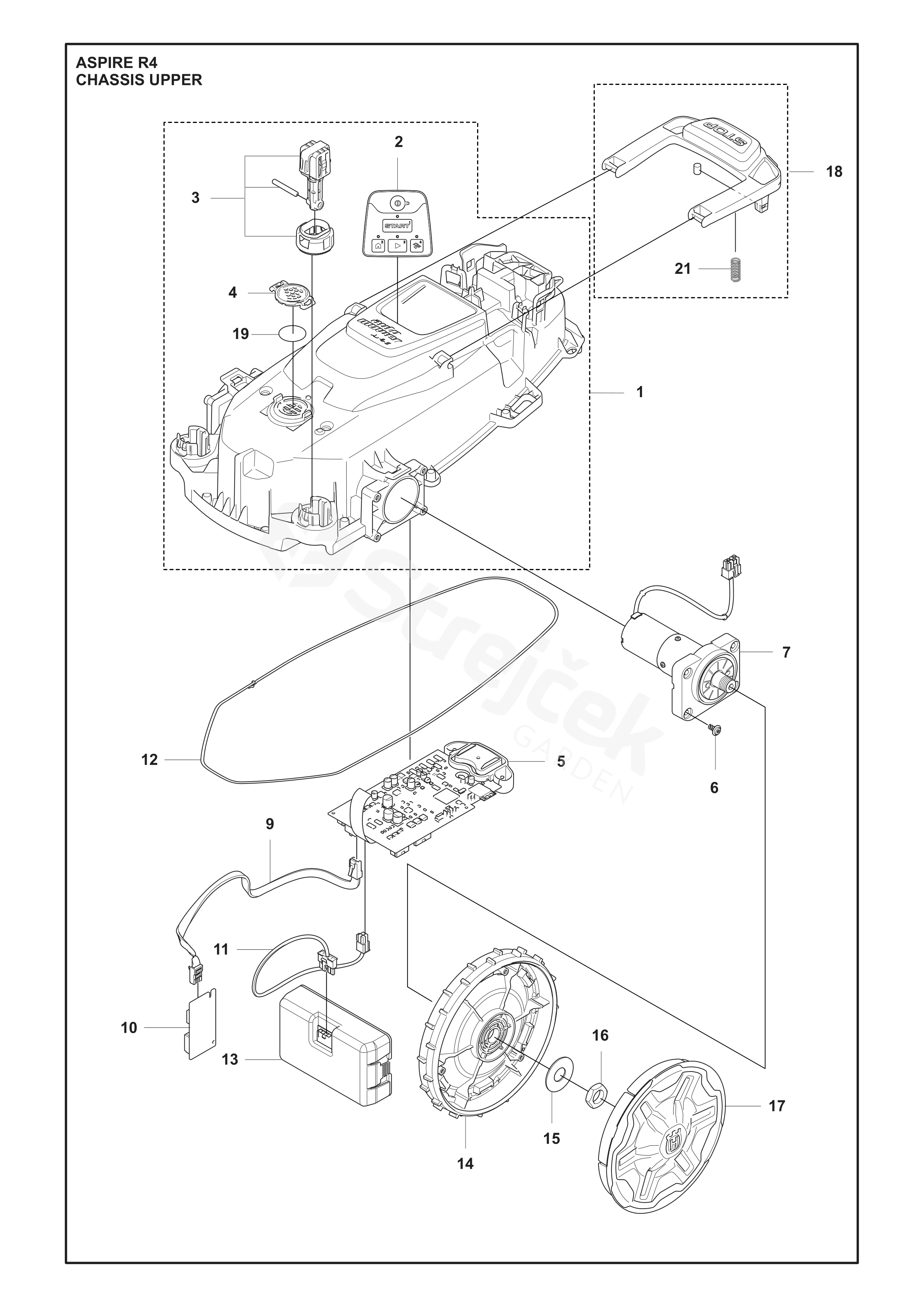

CHASSIS UPPER
Automower Aspire™ R4 Automower Aspire™ R4 (970568511 - 7392930884465)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Automower Aspire™ R4
1 CHASSIS ASSY 536977101
2 KEYPAD 535541102
3 COLUMN ASSY 596020703
4 COVER
Cover - Air filter 		586038902
5 PRINTED CIRCUIT ASSY
PCBA - Mainboard 		534210202
6 SCREW ITXPANT 574450101
7 WHEEL MOTOR ASSY 599620803
9 WIRING ASSY 589351003
10 PRINTED CIRCUIT ASSY
PCBA - Loop sensor 		597181601
11 WIRING ASSY 529327004
12 SEALING STRIP 574874721
13 BATTERY 593247201
14 WHEEL 535599901
15 WASHER 586210601
16 HEXAGON THIN NUT 731432401
17 HUB CAP 531351401
18 BUTTON ASSY 536977201
19 KIT 577753701
21 SPRING 535130101
